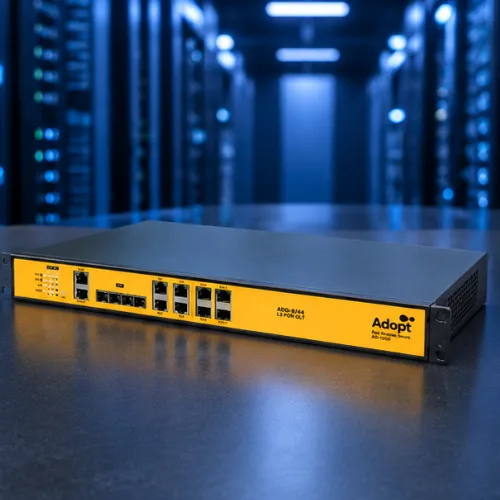

Adopt AD1E-0444 4 Port Layer 3 EPON OLT Fully Loaded with Dual Power Supply

The Adopt AD1E-0444 4 Port Layer 3 EPON OLT is designed for fiber broadband access networks, ISP deployments and enterprise connectivity. It features four EPON ports, two Gigabit Ethernet SFP uplinks, two 10G SFP+ uplinks and four RJ-45 Ethernet interfaces for flexible network connectivity. With a 64 Gbps switching capacity, 125 Mpps packet forwarding performance and support for up to 256 ONTs, this OLT is suitable for building scalable fiber access networks. Its VLAN management, QinQ support, traffic mirroring and bandwidth control features help network administrators manage traffic efficiently. The device supports redundant pluggable power supplies with dual AC, dual DC or AC+DC configurations, making it a practical option for ISP and FTTH infrastructure. Key Features: 4 × EPON ports with 1.25/1.25 Gbps interface rate Layer 3 network management capability 2 × GE SFP and 2 × 10GE SFP+ optical uplinks 4 × RJ-45 Ethernet uplink interfaces 64 Gbps switching capacity 125 Mpps IPv4/IPv6 packet forwarding rate Supports up to 256 ONTs Split ratio support up to 1:64 4K VLAN entries with QinQ and Selective QinQ STP, RSTP and MSTP support Port-based, MAC-based and IP subnet-based VLANs Port bandwidth control and traffic mirroring Redundant pluggable power supply options Compact 442 × 227 × 44 mm design Specifications: Brand: Adopt Model: AD1E-0444 Product Type: Layer 3 EPON OLT Configuration: Fully Loaded EPON Ports: 4 × EPON EPON Interface Rate: 1.25/1.25 Gbps EPON Standard: IEEE 802.3 Gigabit Optical Uplinks: 2 × GE SFP 10 Gigabit Optical Uplinks: 2 × 10GE SFP+ Ethernet Interfaces: 4 × RJ-45 Console Interface: RJ-45 EIA/TIA-232 Management Interface: 1000BASE-T out-of-band management Switching Capacity: 64 Gbps Packet Forwarding Rate: 125 Mpps (IPv4/IPv6) Maximum ONT Capacity: 256 ONTs Split Ratio: 1:64 VLAN Entries: 4K VLAN Features: Port-based, MAC-based, IP subnet-based VLAN, QinQ and Selective QinQ Spanning Tree: STP, RSTP and MSTP Additional L2 Features: MAC Black Hole, port MAC limit, bandwidth control, port mirroring and traffic mirroring Power Supply: Pluggable dual power supply Supported Power Configurations: Dual AC, dual DC or AC+DC AC Input: 100–240 V AC, 50/60 Hz DC Input: 36–75 V DC Power Consumption: Less than 46 W Operating Temperature: 0°C to 45°C Operating Humidity: 10%–90%, non-condensing Storage Temperature: -10°C to 70°C Storage Humidity: 10%–90%, non-condensing Dimensions (W × D × H): 442 × 227 × 44 mm Weight: Less than 3.0 kg
