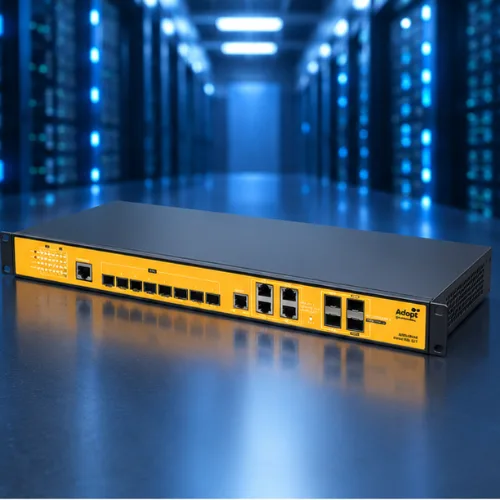

Adopt AD1E-0844 8 Port Layer 3 EPON OLT Fully Loaded with Dual Power Supply

The Adopt AD1E-0844 8-Port Layer 3 EPON OLT is designed for ISP broadband deployments, FTTH networks and fiber access infrastructure. It provides eight EPON interfaces, two GE SFP uplinks, two 10GE SFP+ uplinks and four RJ-45 Ethernet interfaces to support flexible network connectivity. With a 64 Gbps switching capacity and a packet forwarding rate of 125 Mpps, this OLT supports up to 512 ONTs, making it suitable for expanding fiber broadband networks. Its network management features include VLAN segmentation, QinQ, spanning tree protocols, bandwidth control and traffic mirroring. The dual pluggable power supply design supports dual AC, dual DC or AC+DC configurations for flexible power arrangements. The AD1E-0844 is a practical solution for service providers building and managing EPON-based access networks. Key Features: 8 × EPON ports with 1.25/1.25 Gbps interface rate 2 × GE SFP optical uplinks 2 × 10GE SFP+ optical uplinks 4 × RJ-45 Ethernet interfaces 64 Gbps switching capacity 125 Mpps IPv4/IPv6 packet forwarding rate Supports up to 512 ONTs 1:64 split ratio support 4K VLAN entries with QinQ and Selective QinQ STP, RSTP and MSTP support ONU remote loop detection MAC Black Hole and port MAC limiting Bidirectional bandwidth control Port and traffic mirroring Dual pluggable power supply with AC/DC configurations Specifications: Brand: Adopt Model: AD1E-0844 Product Type: Layer 3 EPON OLT Configuration: Fully Loaded EPON Ports: 8 × EPON EPON Interface Rate: 1.25/1.25 Gbps EPON Standard: IEEE 802.3 GE Optical Uplinks: 2 × GE SFP 10GE Optical Uplinks: 2 × 10GE SFP+ Ethernet Interfaces: 4 × RJ-45 Console Interface: RJ-45 EIA/TIA-232 Management Interface: 1000BASE-T out-of-band management Switching Capacity: 64 Gbps Packet Forwarding Rate: 125 Mpps (IPv4/IPv6) Maximum ONT Capacity: 512 ONTs Split Ratio: 1:64 VLAN Entries: 4K VLAN Features: Port-based, MAC-based and IP subnet-based VLAN; QinQ and Selective QinQ Spanning Tree: STP, RSTP and MSTP Loop Detection: ONU remote loop detection MAC Features: MAC Black Hole, port MAC limit, 8K MAC address table Port Features: Bidirectional bandwidth control, port mirroring and traffic mirroring Power Supply: Dual pluggable power supply Supported Power Configurations: Dual AC, dual DC or AC+DC AC Input: 100–240 V AC, 50/60 Hz DC Input: 36–75 V DC Power Consumption: Less than 56 W Operating Temperature: 0°C to 45°C Operating Humidity: 10%–90%, non-condensing Storage Temperature: -10°C to 70°C Storage Humidity: 10%–90%, non-condensing Dimensions (W × D × H): 442 × 360 × 44 mm Weight: Less than 5.5 kg
