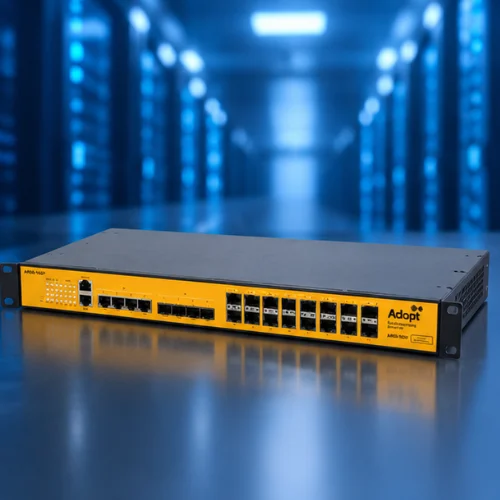

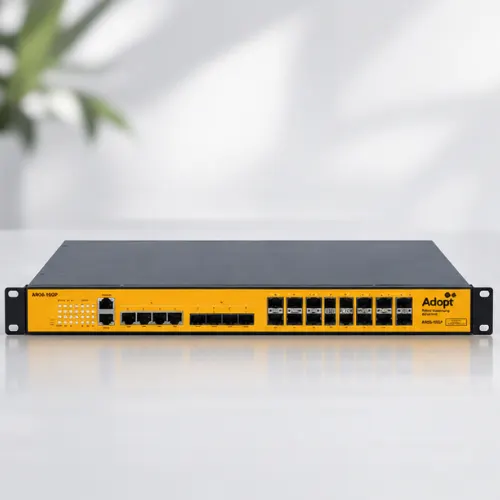

Adopt AD1G-1644 16 Port Layer 3 GPON OLT with Dual Power Supply (Unloaded)

The Adopt AD1G-1644 is a 16-port GPON Optical Line Terminal designed for service providers building scalable fiber broadband networks. With a switching capacity of 168 Gbps and a 64K MAC address table, it supports high-capacity network traffic management for FTTH deployments. The device features 16 PON ports, four 10G SFP+ uplink ports and four Gigabit Ethernet ports to connect access networks with upstream infrastructure. Its dual power supply architecture supports double AC, double DC or AC+DC configurations, depending on the installed power modules. Designed for rack installation, the AD1G-1644 can be integrated into ISP networks, IPTV/OTT infrastructure, IP telephony systems and enterprise connectivity environments. VLAN-based network segmentation can help separate management, internet, video and voice traffic according to the network configuration. This is the unloaded version. Please confirm the included optical modules, transceivers and power modules with the supplier before purchase. Key Features: 16 PON port GPON OLT platform 168 Gbps switching capacity 64K MAC address table 4 × 10G SFP+ and 4 × Gigabit Ethernet uplink ports Redundant power configuration: dual AC, dual DC or AC+DC AC and DC power input support VLAN-based traffic separation for management, internet, IPTV and voice Designed for FTTH and ISP broadband infrastructure Supports integration with IPTV/OTT and IP telephony networks Standard 1U rackmount form factor Unloaded configuration for deployment-specific module selection Specifications: Brand: Adopt Model: AD1G-1644 Product Type: GPON Optical Line Terminal (OLT) Configuration: Unloaded Switching Capacity: 168 Gbps MAC Address Table: 64K PON Ports: 16 × PON 10G Uplink Ports: 4 × 10G SFP+ Gigabit Ethernet Ports: 4 × GE Power Redundancy: Dual power supply Supported Power Configurations: Dual AC, dual DC or AC+DC AC Power Input: 85–264V AC, 47–63Hz DC Power Input: 36–75V DC Maximum Power Consumption: 80W Dimensions (W × D × H): 440 × 310 × 44 mm Weight: Less than 5 kg Operating Temperature: -10°C to +50°C Storage Temperature: -40°C to +85°C Relative Humidity: 5%–95%, non-condensing Form Factor: 1U Rackmount Network Applications: FTTH, ISP Broadband, IPTV/OTT, IP Telephony and Enterprise Networks Network Segmentation: VLAN-based traffic separation, subject to configuration Optical Wavelengths Shown in Network Diagram: Downstream 1490 nm; Upstream 1310 nm Network Diagram VLANs: NMS VLAN 10; Internet VLAN 20; IPTV/OTT VLAN 30; IP Telephony VLAN 40 Network Diagram Components: OLT, optical splitter and ONT/ONTs
