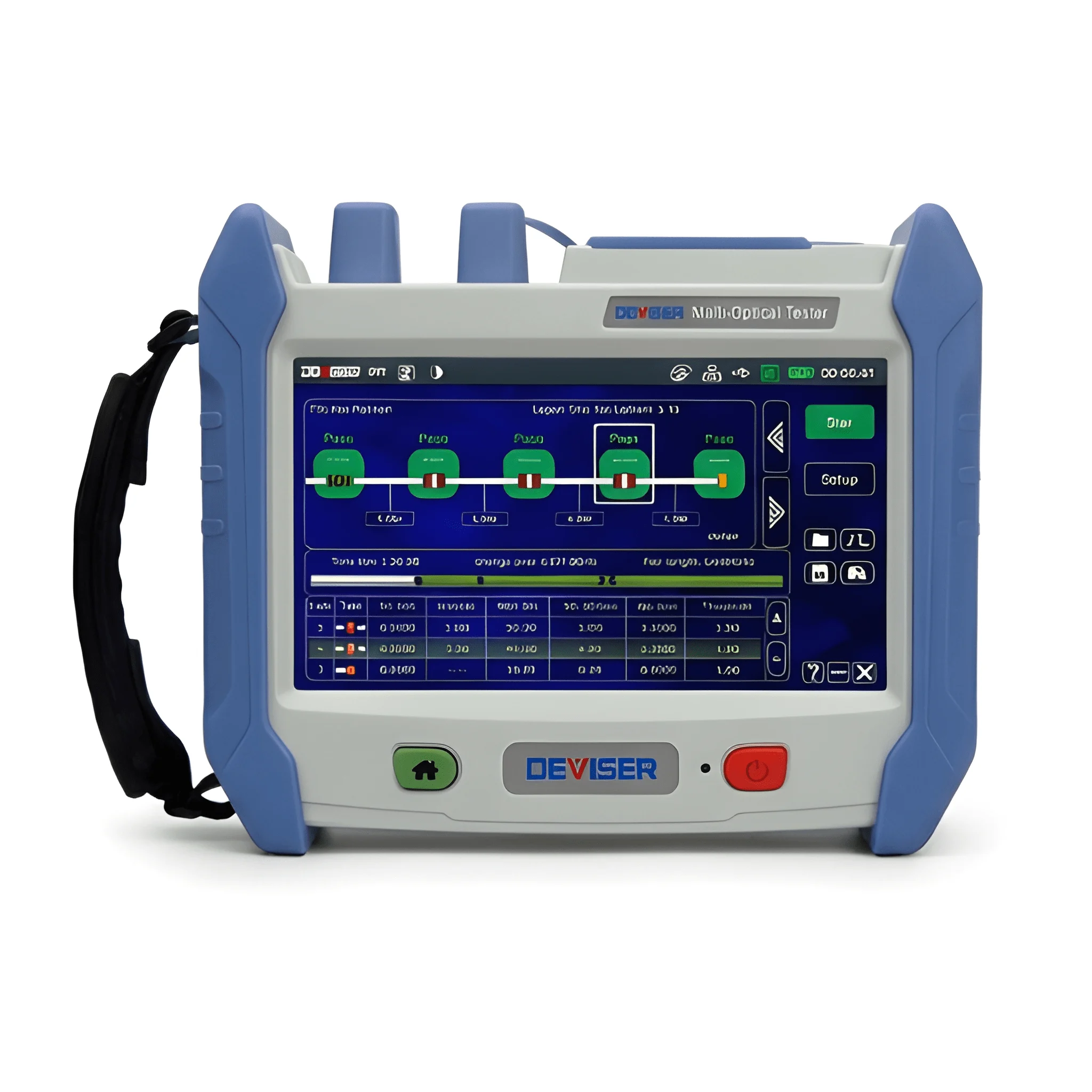

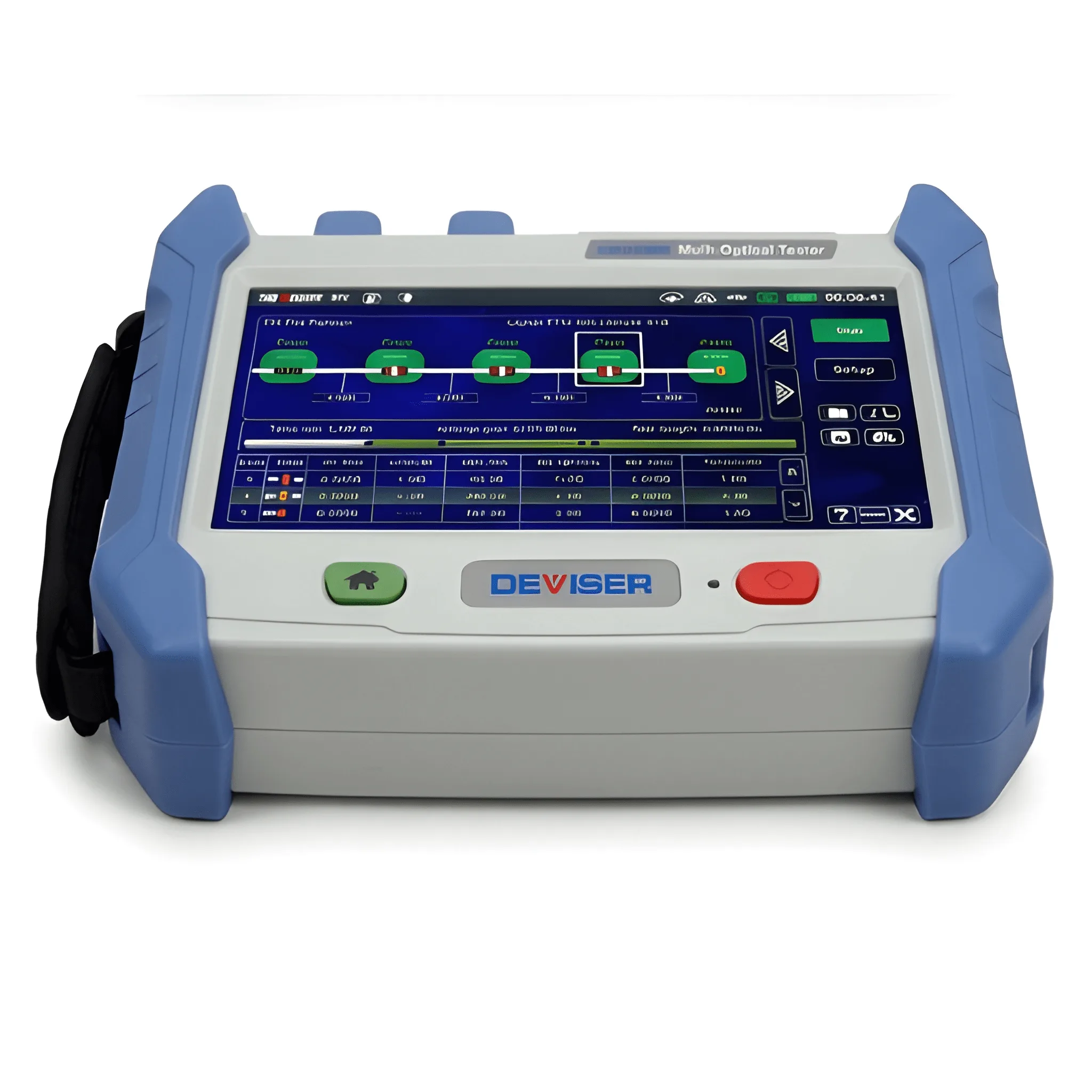

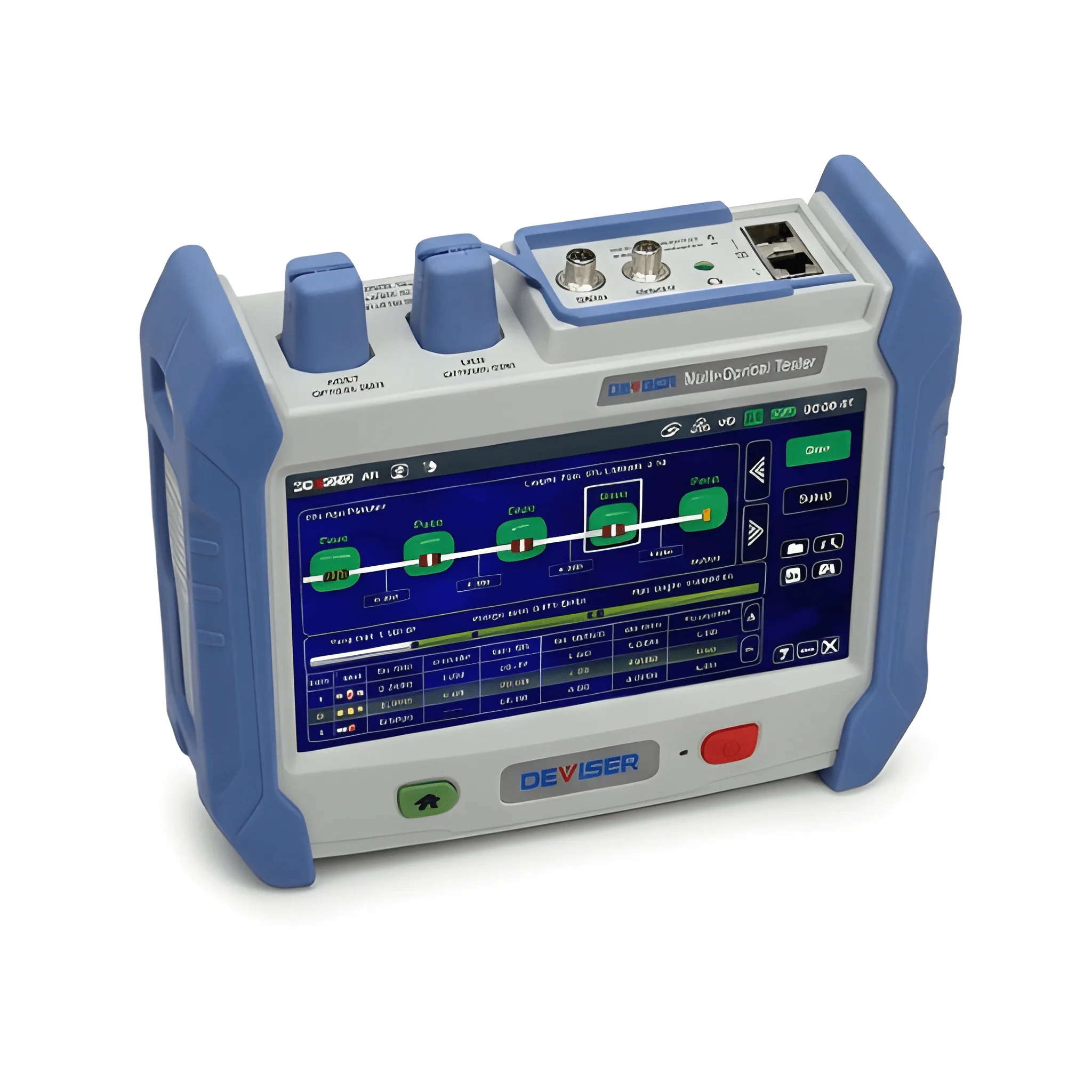

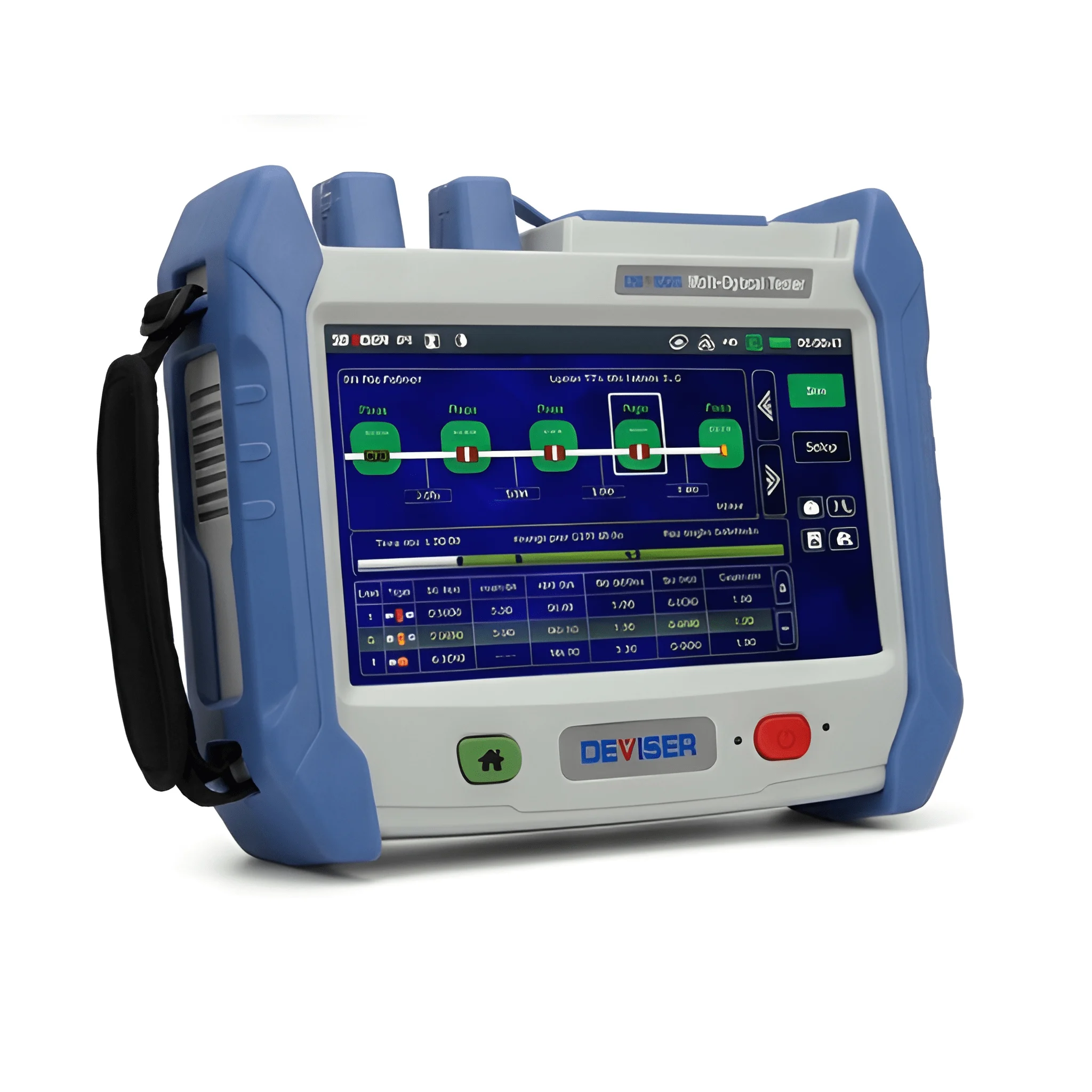

DEVISER AE3100C OTDR – 36dB Handheld Fiber Tester

The DEVISER AE3100C is a handheld optical fiber tester built for technicians working on fiber installation, network verification, and fault diagnosis. It supports 1310nm and 1550nm single-mode testing with a dynamic range of up to 36dB, providing useful coverage for everyday fiber measurement tasks. A 7-inch touchscreen gives clear access to testing functions, while real-time analysis helps technicians review measurements directly in the field. FiberPath intelligent analysis adds a visual way to understand fiber events, and optional tools such as VFL, OPM, light source, and fiber microscope can extend the unit's testing capabilities. The AE3100C can be used across FTTx, PON, LAN, MAN, long-haul, and data center fiber networks, making it suitable for installation as well as ongoing maintenance work. Key Features 36dB Dynamic Range: Supports detailed testing of single-mode fiber links. Dual-Wavelength Operation: Works with 1310nm and 1550nm measurements. Visual Fiber Analysis: FiberPath helps make OTDR events easier to interpret. Fine Measurement Resolution: Provides minimum 5cm resolution for closer event analysis. Optional Testing Tools: Can be configured with VFL, OPM, light source, and fiber microscope functions. Field Connectivity: Supports LAN, USB, and SD interfaces for data handling. Specifications Brand : DEVISER Model : AE3100C Product Type : Handheld OTDR Fiber Type : Single Mode Test Wavelengths : 1310nm / 1550nm Event Dead Zone : 0.8m Attenuation Dead Zone : 4m Minimum Resolution : 5cm Display : 7-inch LCD Touchscreen Display Resolution : 800 × 480 Analysis : FiberPath Intelligent Event Analysis Optional Functions : VFL / OPM / Light Source / Fiber Microscope Interfaces : LAN / USB / SD
