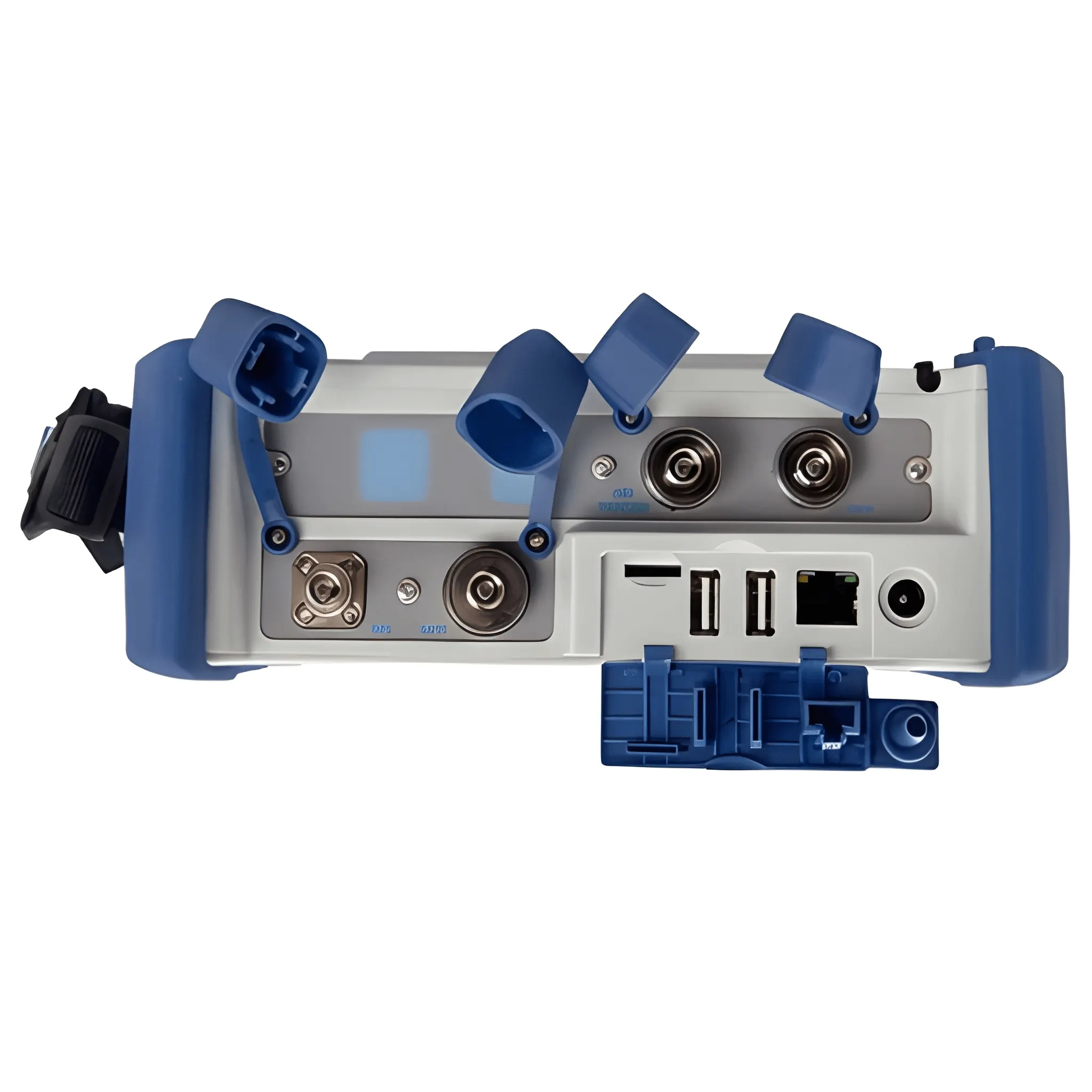

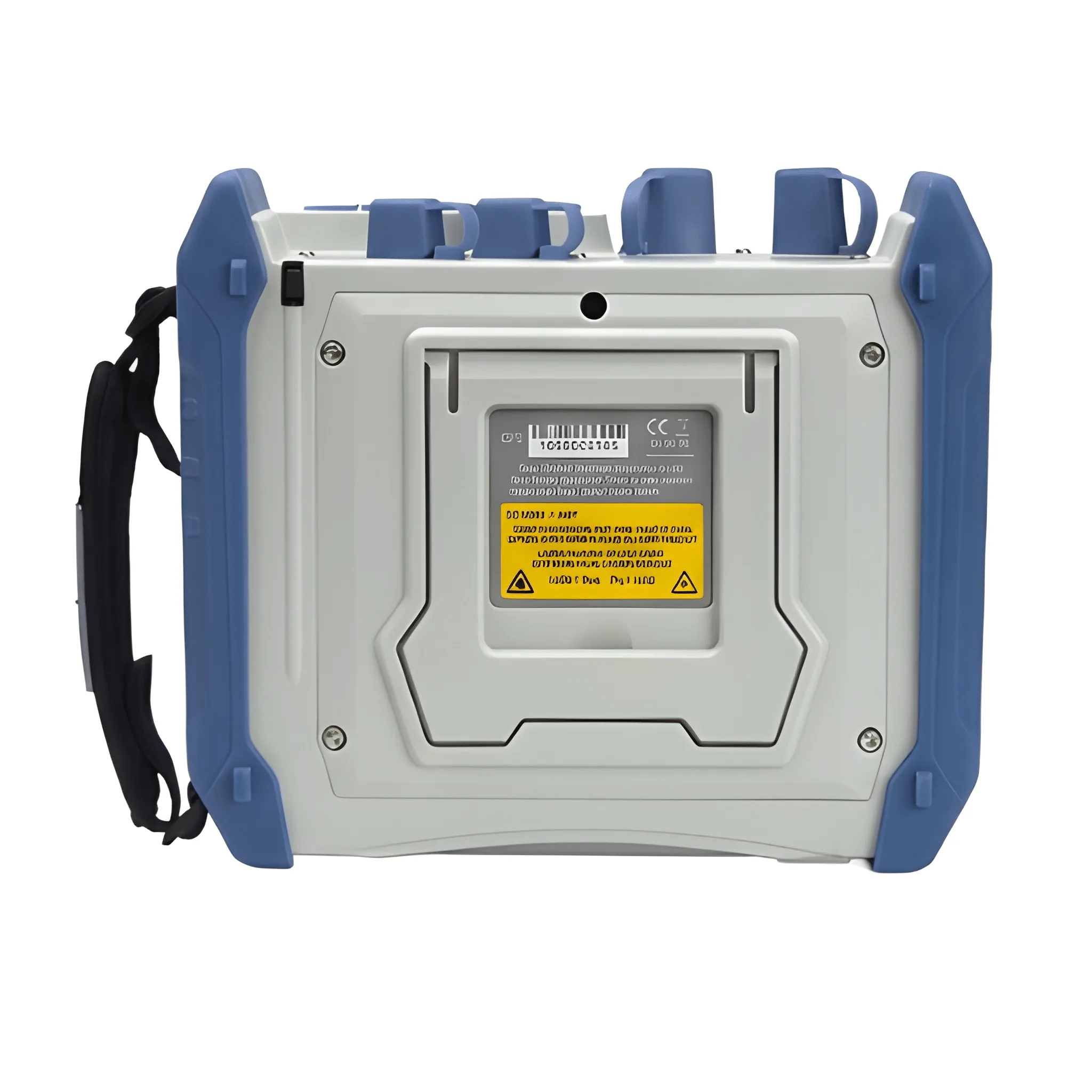

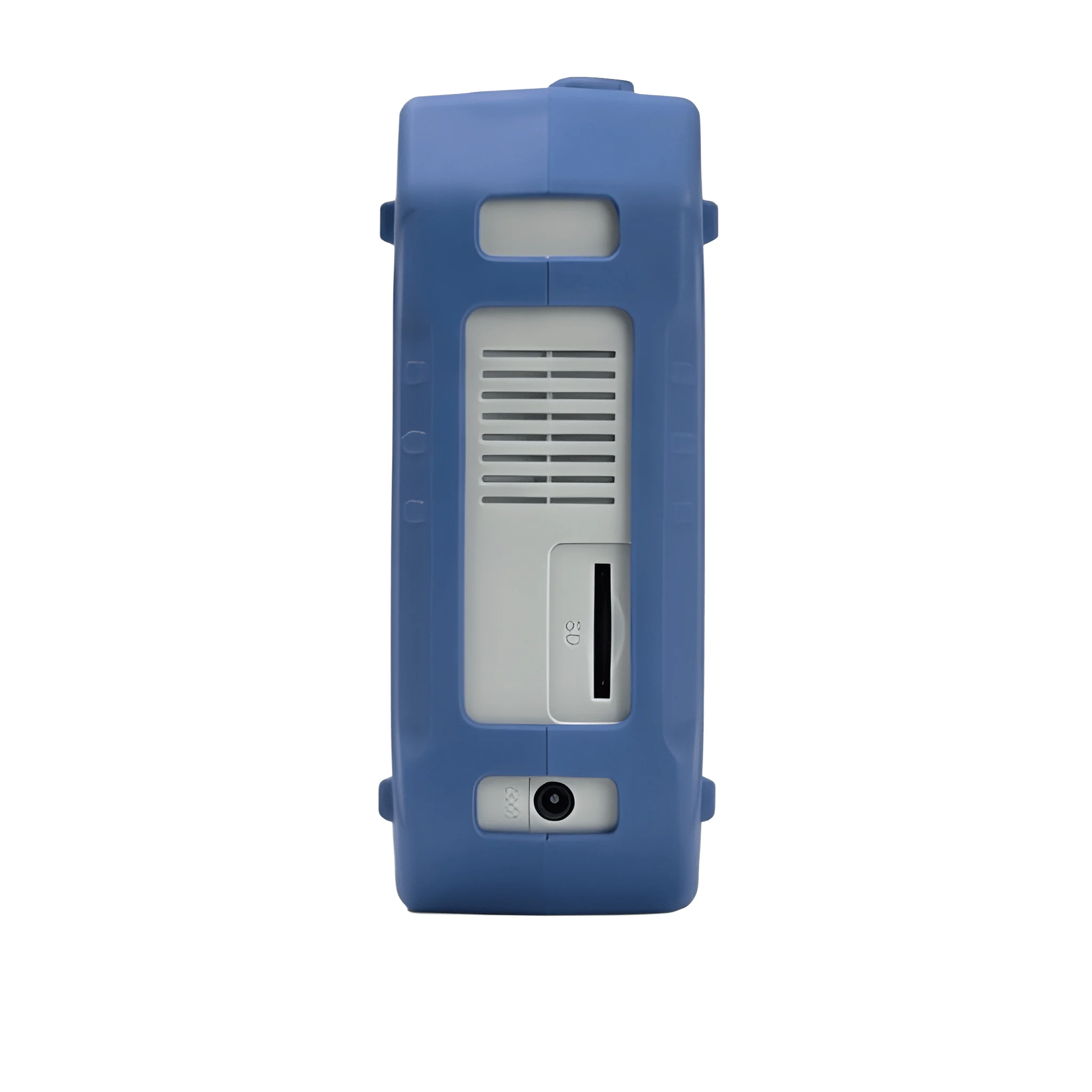

DEVISER AE3100CP-1 PON OTDR – Triple Wavelength Fiber Tester

The DEVISER AE3100CP-1 is a compact PON OTDR designed for fiber network installation, testing, and maintenance. It supports 1310nm, 1550nm, and 1625nm wavelengths, making it suitable for working with different fiber measurement requirements, including live fiber applications. The unit combines OTDR, Optical Power Meter (OPM), Light Source (LS), and Visual Fault Locator (VFL) functions in one field-ready device. Its 7-inch touchscreen provides a clear interface for daily testing, while intelligent event analysis and FiberPath mapping help technicians understand fiber links more efficiently. Key Features Triple-Wavelength Testing: Covers 1310nm, 1550nm, and 1625nm measurements. PON & Live Fiber Support: Designed for PON networks and filtered live-fiber testing. Multiple Test Functions: OPM, LS, and VFL are available alongside OTDR testing. Fiber Link Mapping: FiberPath helps present fiber events in an easy-to-follow format. Stable Field Performance: Built for repeated testing during installation and maintenance. Specifications Brand : DEVISER Model : AE3100CP-1 Product Type : PON OTDR Test Wavelengths : 1310nm / 1550nm / 1625nm Dynamic Range : 37 / 35 / 35dB Event Dead Zone : 0.8m Attenuation Dead Zone : 3m Minimum Resolution : 5cm Display : 7-inch LCD Touchscreen Display Resolution : 800 × 480 Integrated Functions : OPM / LS / VFL Live Fiber Port : Single Mode Filtered Port Data Interfaces : LAN / USB / SD
