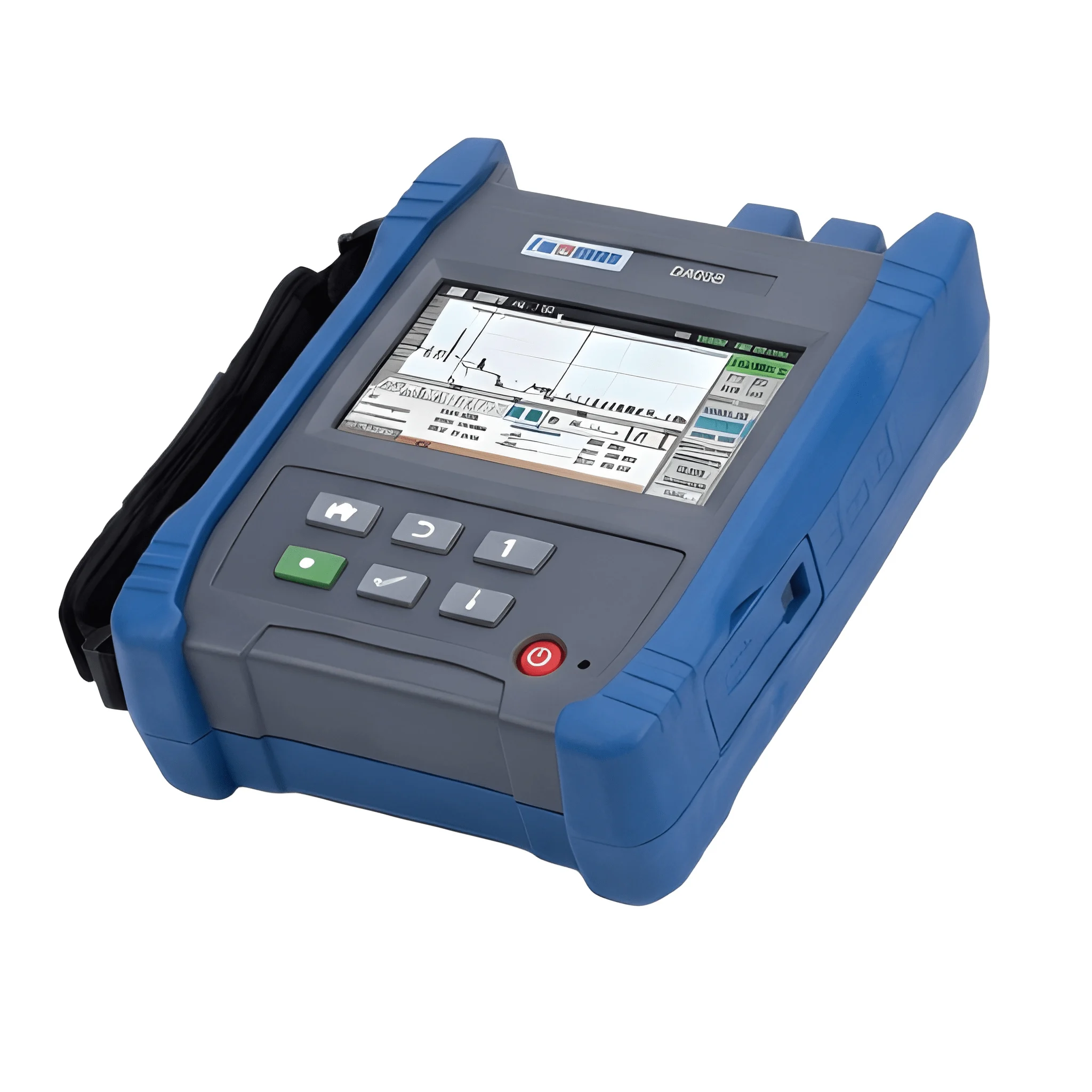

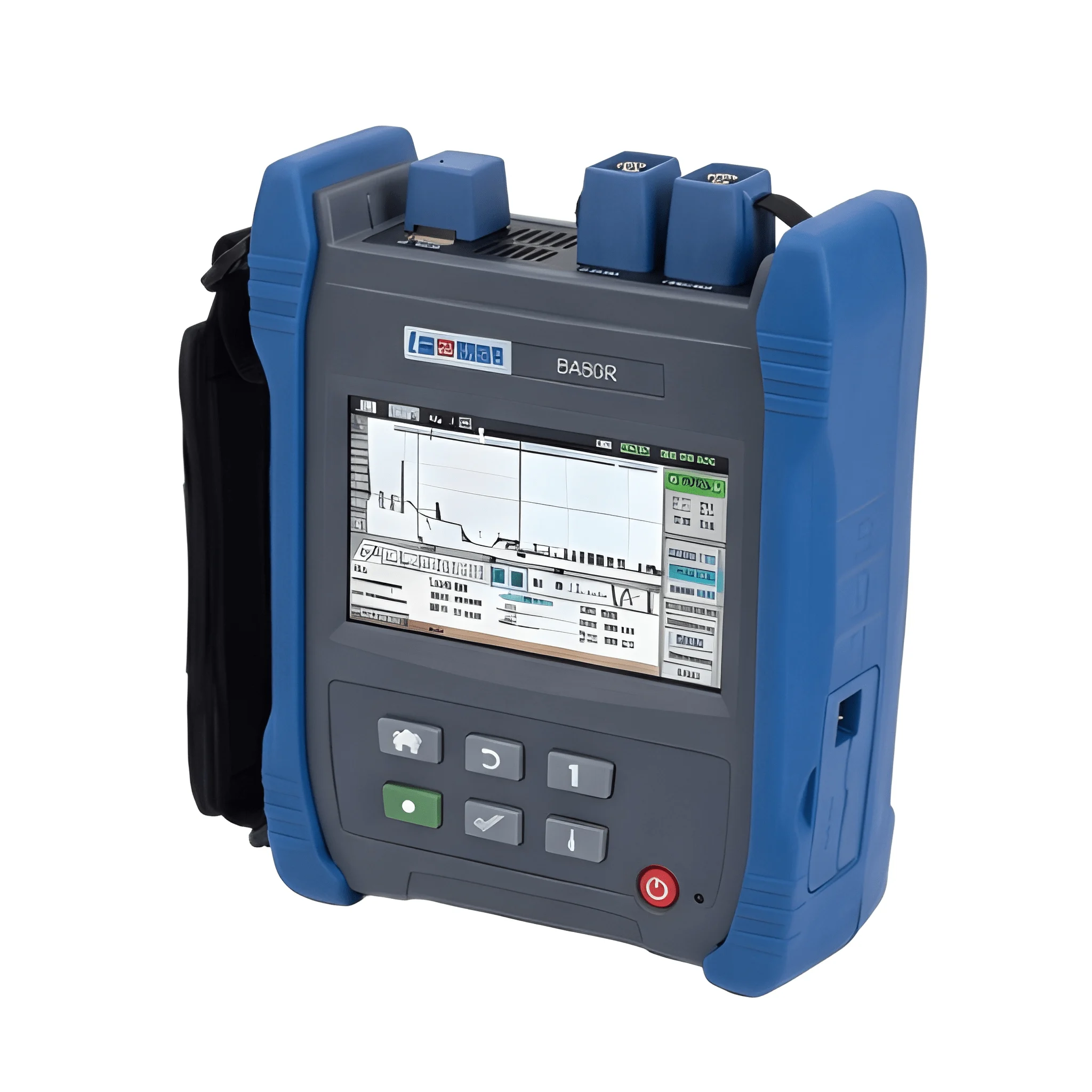

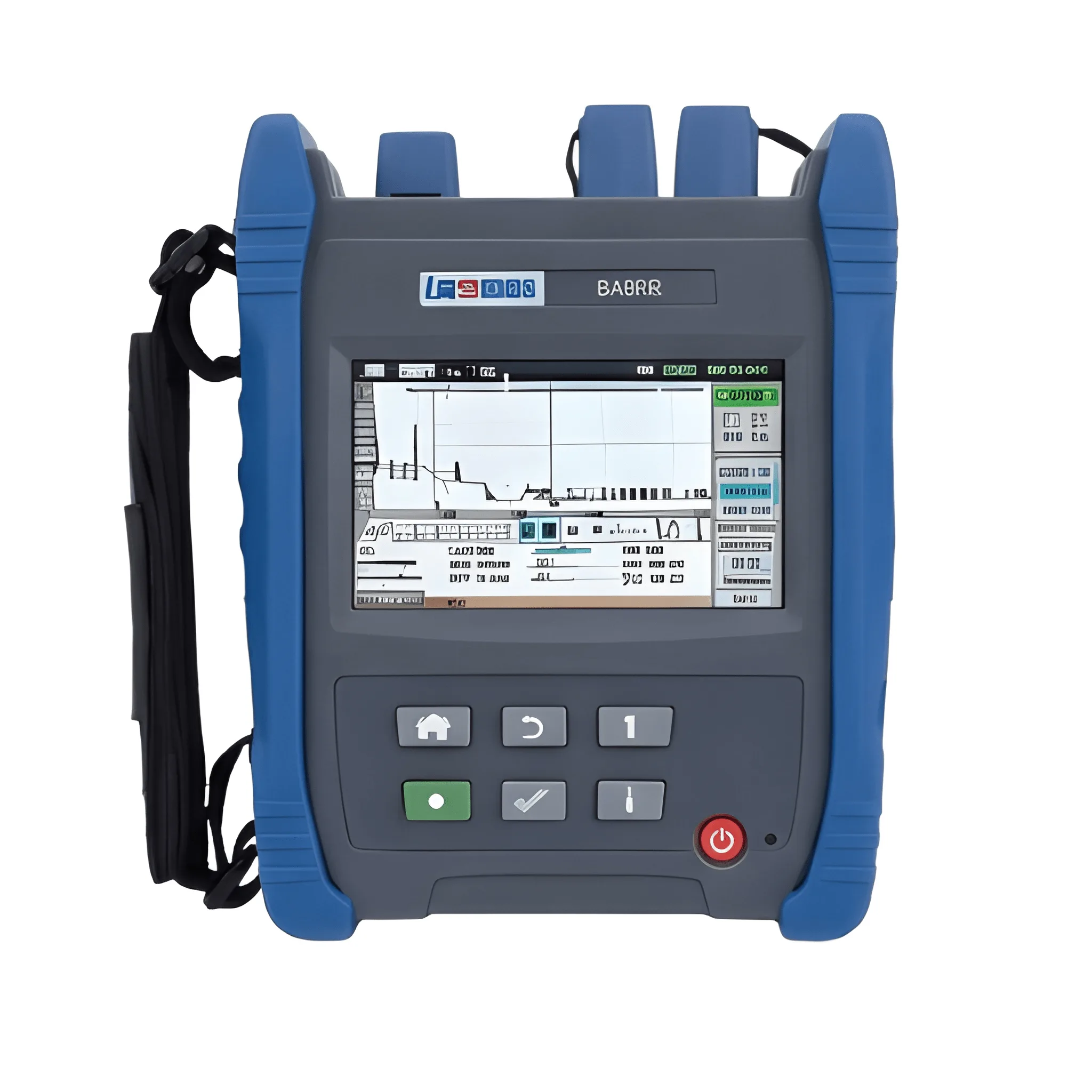

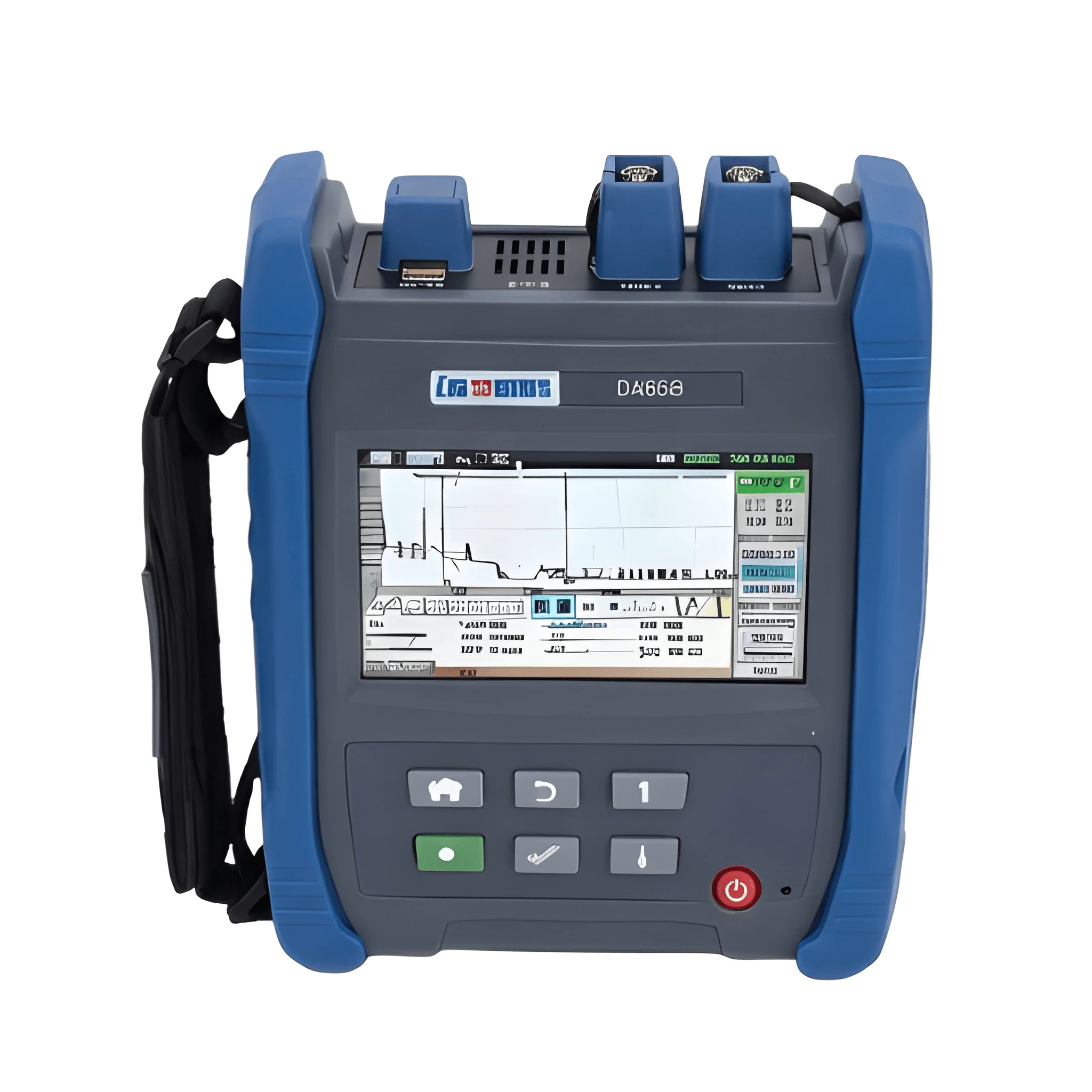

DEVISER OTDR AE1001– All-in-One FTTx Multi-Function Meter (Optical Time-Domain Reflectometer)

The DEVISER AE1001 is a compact FTTx multi-function meter designed for fiber installation, validation, troubleshooting, and network maintenance. It combines optical, RF, and metallic testing functions in one portable unit, helping technicians handle different checks without carrying multiple instruments. The built-in OTDR, Optical Power Meter (OPM), Visual Fault Locator (VFL), Light Source (LS), TDR, Cable TV RF testing, and Fiberscope provide a wide range of testing options. Its FiberPath and Auto Test functions make fiber results easier to understand, while the lightweight design and touchscreen interface are well suited to field work. Key Features All-in-One Testing: Combines optical, RF, and metallic measurements in one device. FiberPath Analysis: Converts OTDR results into an easier-to-read fiber link view. Quick Dual-Wavelength Testing: Supports fast checks at 1310nm and 1550nm. FTTx Validation: Helps technicians verify fiber installations and network levels. Connector Inspection: Fiberscope support helps identify contamination on fiber connectors. Compact Field Design: Easy to carry across different installation and maintenance locations. Specifications Brand : DEVISER Model : AE1001 Product Type : Multi-Function FTTx Meter / OTDR OTDR Wavelengths : 1310nm / 1550nm Dynamic Range : 26dB / 24dB Measurement Range : 150m to 80km Event Dead Zone : ≤3m Attenuation Dead Zone : ≤10m Pulse Width : 3ns to 20μs Sampling : Up to 12,800 Points Display : 4.3-inch TFT LCD Touchscreen Internal Storage : 16GB / Up to 160,000 Traces OPM Range : 850nm to 1650nm VFL : 650nm / 1mW Battery : 2,500mAh Li-ion Operating Time : Over 4 Hours Continuous Testing Connectivity : USB 2.0 / Optional RJ45 LAN Operating Temperature : -10°C to +50°C
