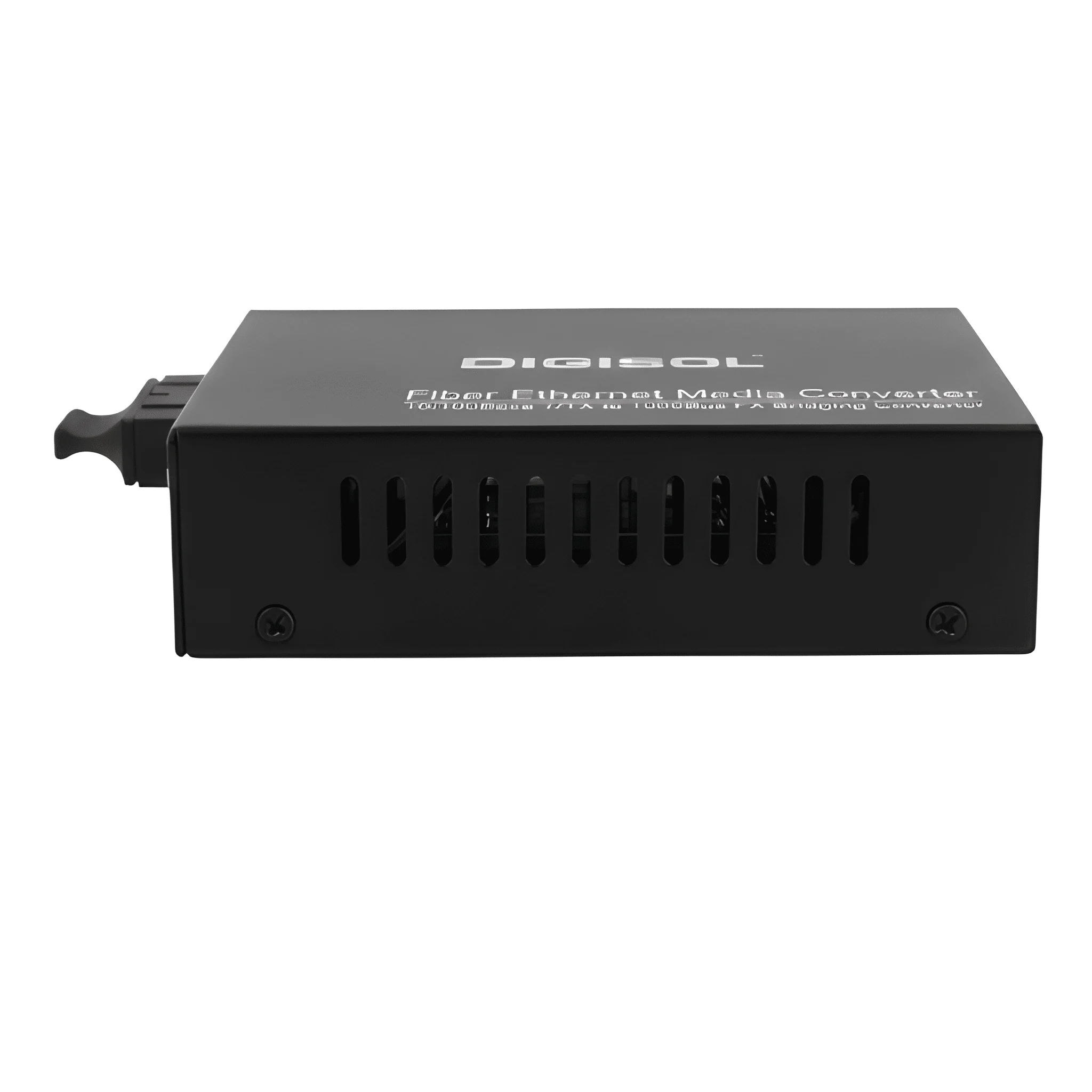

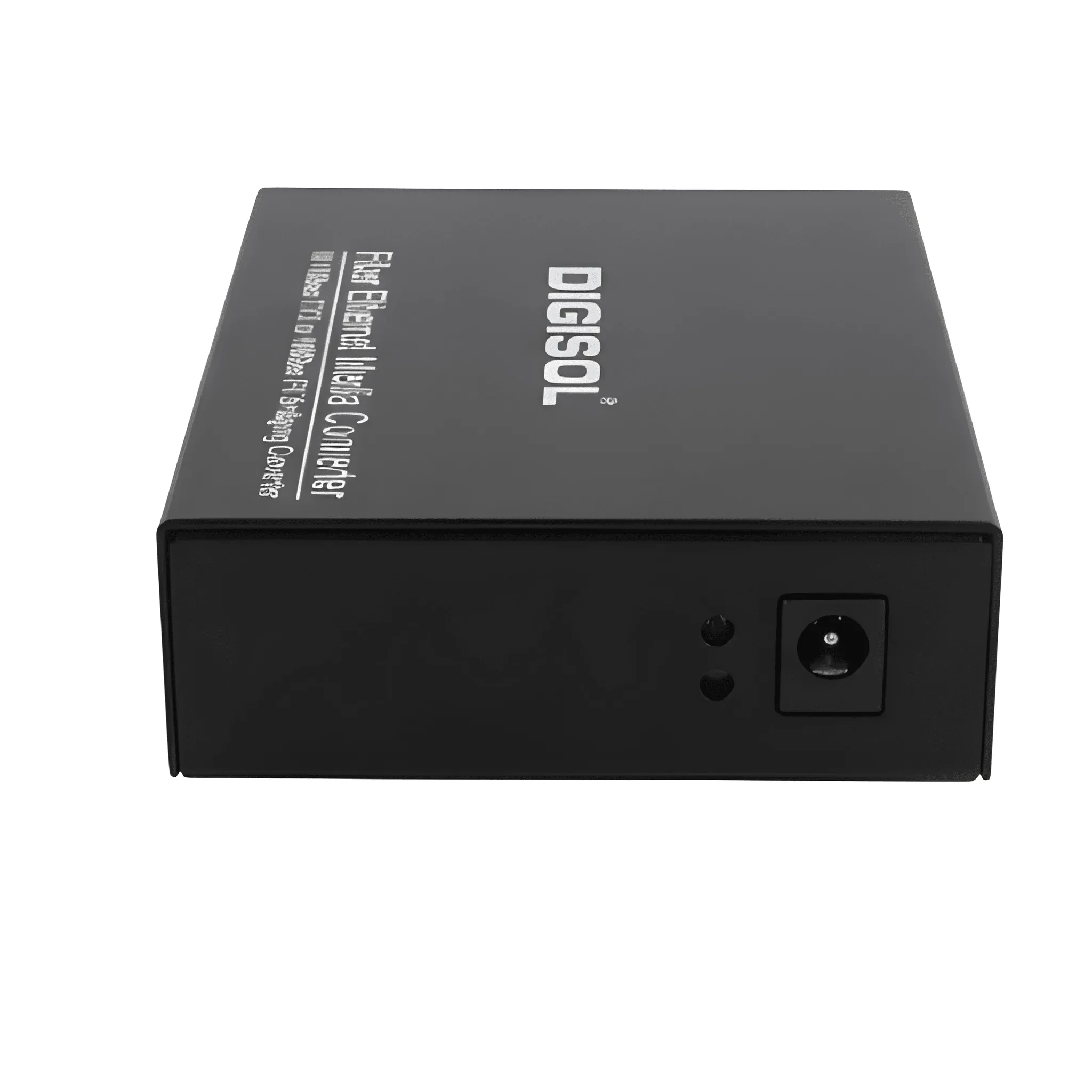

DIGISOL DG-MC5123E – 25km 100Base-FX Single-Mode Media Converter

The DIGISOL DG-MC5123E is a 10/100Mbps Ethernet to Fiber Media Converter made for extending network connections over long distances. It converts 10Base-T and 100Base-TX copper signals to 100Base-FX optical signals and provides up to 25km transmission through Single-Mode dual-fiber cable. It is a practical choice for campus networks and other extended Ethernet connections, with LED indicators for quick network status checking. Key Features Up to 25km network extension 100Base-FX fiber connectivity Single-Mode dual-fiber support Auto MDI/MDI-X Auto Negotiation with flow control IEEE 802.1d Spanning Tree support Hot-pluggable and wall-mountable Product Specifications Brand : DIGISOL Model Name / Number : DG-MC5123E Product Type : Ethernet to Fiber Media Converter Copper Interface : 10Base-T / 100Base-TX Optical Interface : 100Base-FX Fiber Type : Single-Mode Fiber Configuration : Dual Fiber Transmission Speed : 10/100Mbps Maximum Fiber Distance : 25km Duplex Mode : Full / Half Duplex Data Processing : Store-and-Forward / PHY Cut-Through Power Range : -15 to -3 RX Sensitivity : -34 dBm
