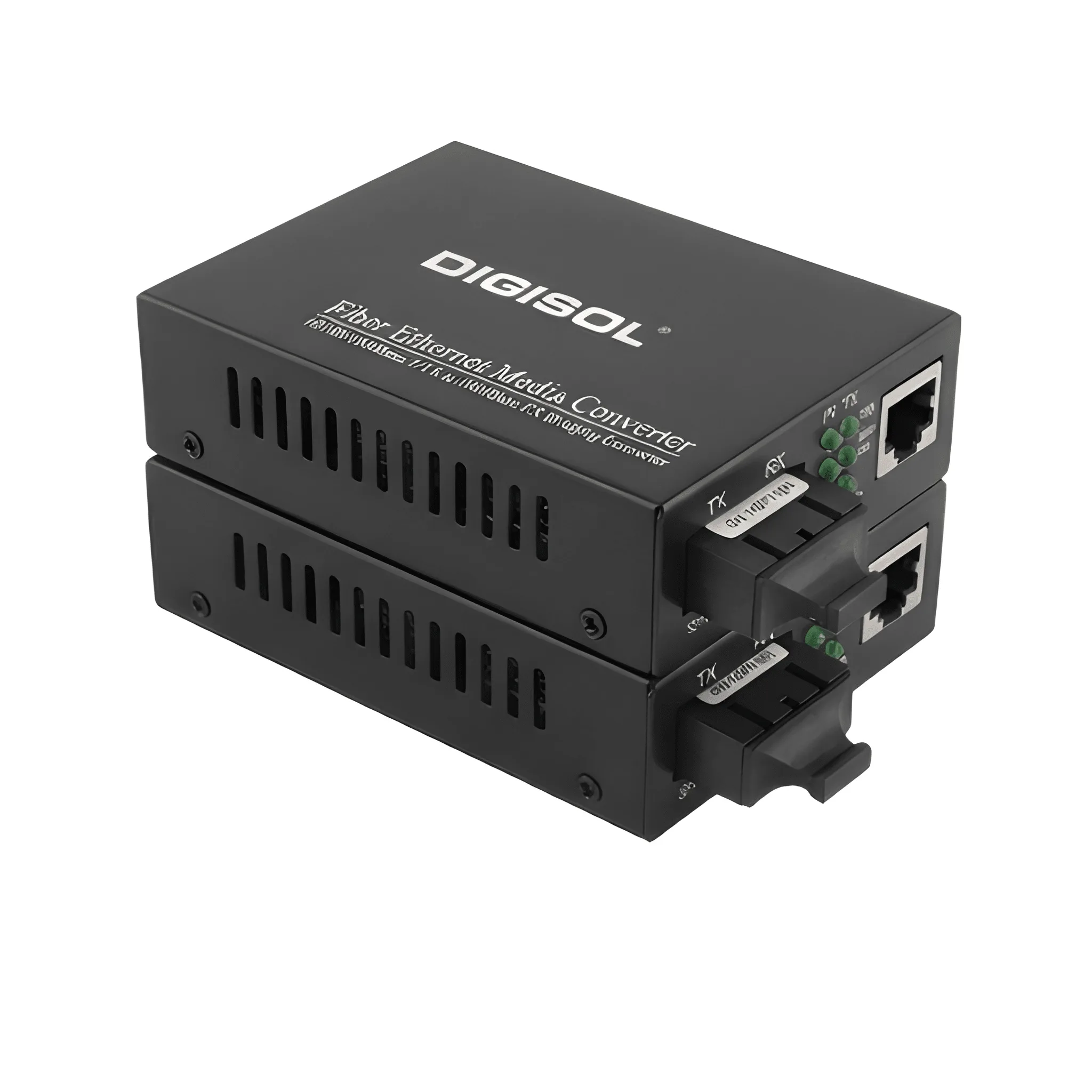

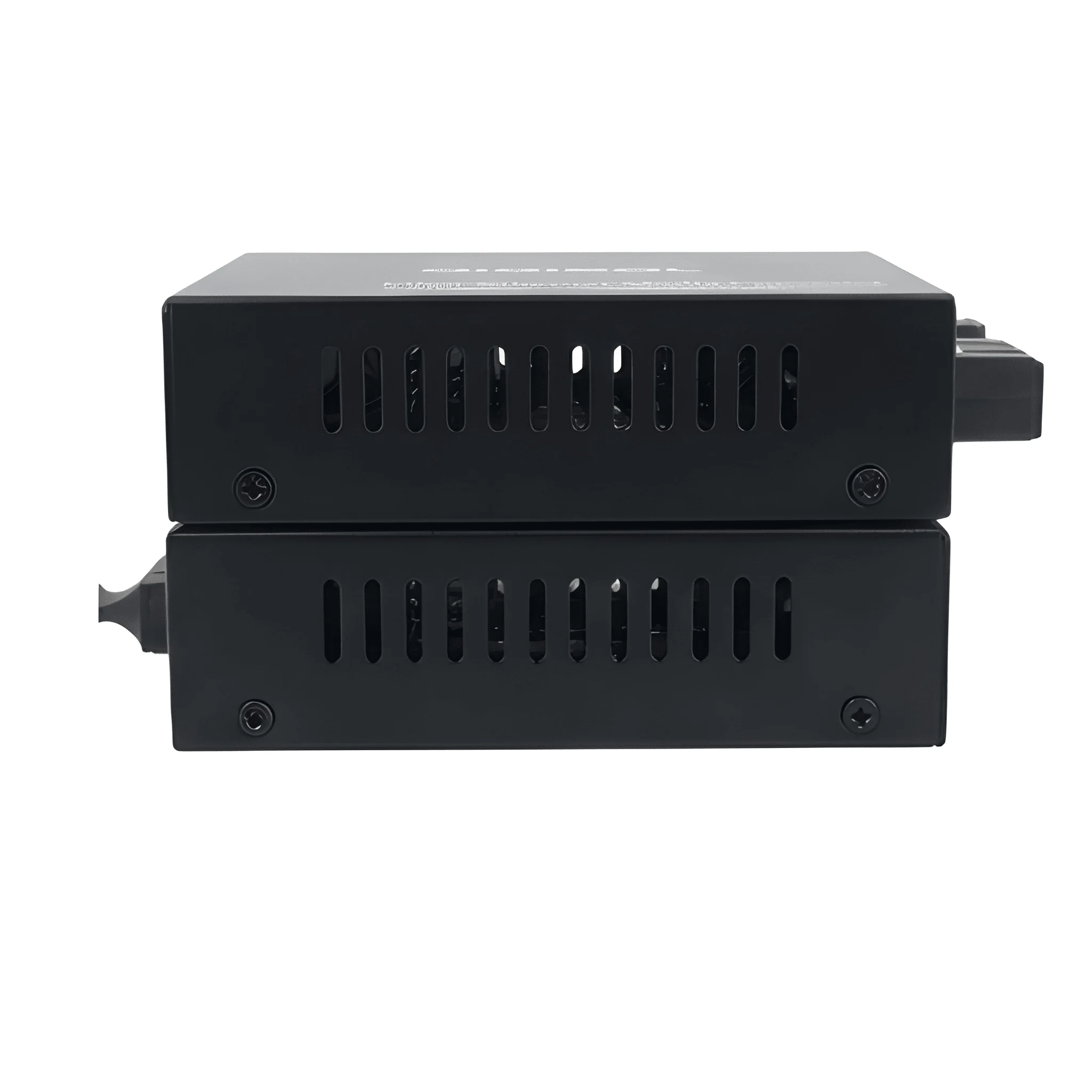

DIGISOL DG-MC6123E Gigabit Media Converter – Single-Mode

The DIGISOL DG-MC6123E Gigabit Media Converter connects copper Ethernet networks with 1000Mbps fiber links, helping extend network connections beyond the normal 100-meter copper cable limit. It supports 10/100/1000Base-T electrical signals and converts them to Gigabit optical signals. Using Single-Mode fiber, the converter can extend network transmission up to 20km, making it suitable for campus networks and other long-distance Ethernet installations. The device includes clear LED indicators for checking important network conditions such as speed, duplex mode, connection, and traffic. Features like Auto MDI/MDI-X, Auto Negotiation, flow control, Spanning Tree support, and hot-pluggable installation make it convenient for everyday network use. Key Features 20km Single-Mode Reach – Extends Gigabit network connections over fiber. 10/100/1000Mbps Support – Works with different Ethernet speed levels. Auto MDI/MDI-X – Helps simplify copper network connections. Flow Control Support – Helps manage network data transmission. IEEE 802.1d Support – Supports Spanning Tree networking. Hot-Pluggable & Wall-Mountable – Offers flexible installation options. Product Specifications Brand : DIGISOL Model Name / Number : DG-MC6123E Product Type : Gigabit Single-Mode Media Converter Copper Interface : 10/100/1000Base-T Optical Interface : 1000Mbps Fiber Type : Single-Mode Transmission Speed : 10/100/1000Mbps Duplex Mode : Full / Half Duplex Auto Negotiation : Supported Flow Control : Supported Installation Type : Hot-Pluggable / Wall-Mountable LED Diagnostics : Speed / Duplex / Connection / Traffic Power : -9 to -3 RX Sensitivity : ≤ -24dBm
