Fujikura 43S Single Fiber Fusion Splicer – Active V-Groove Alignment

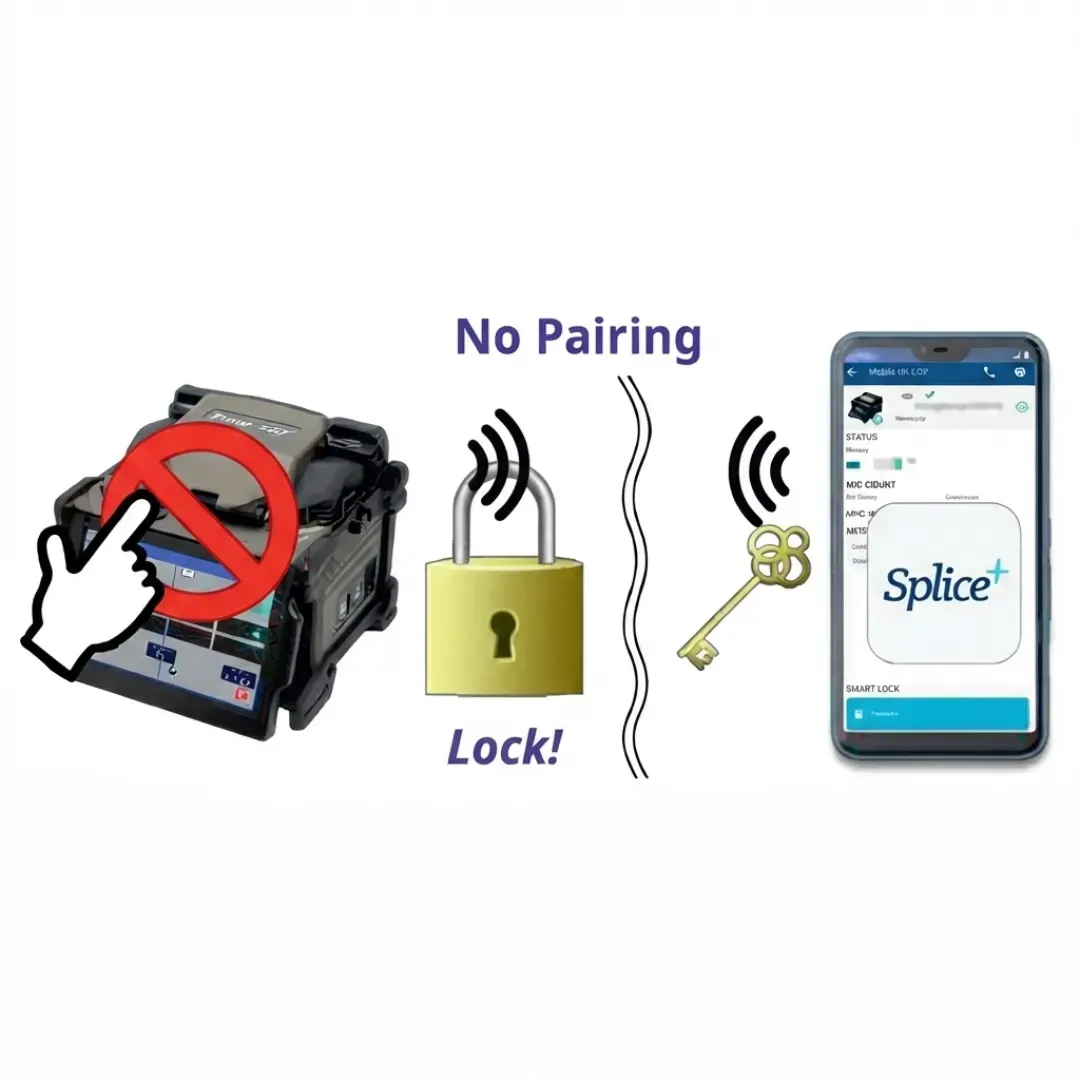

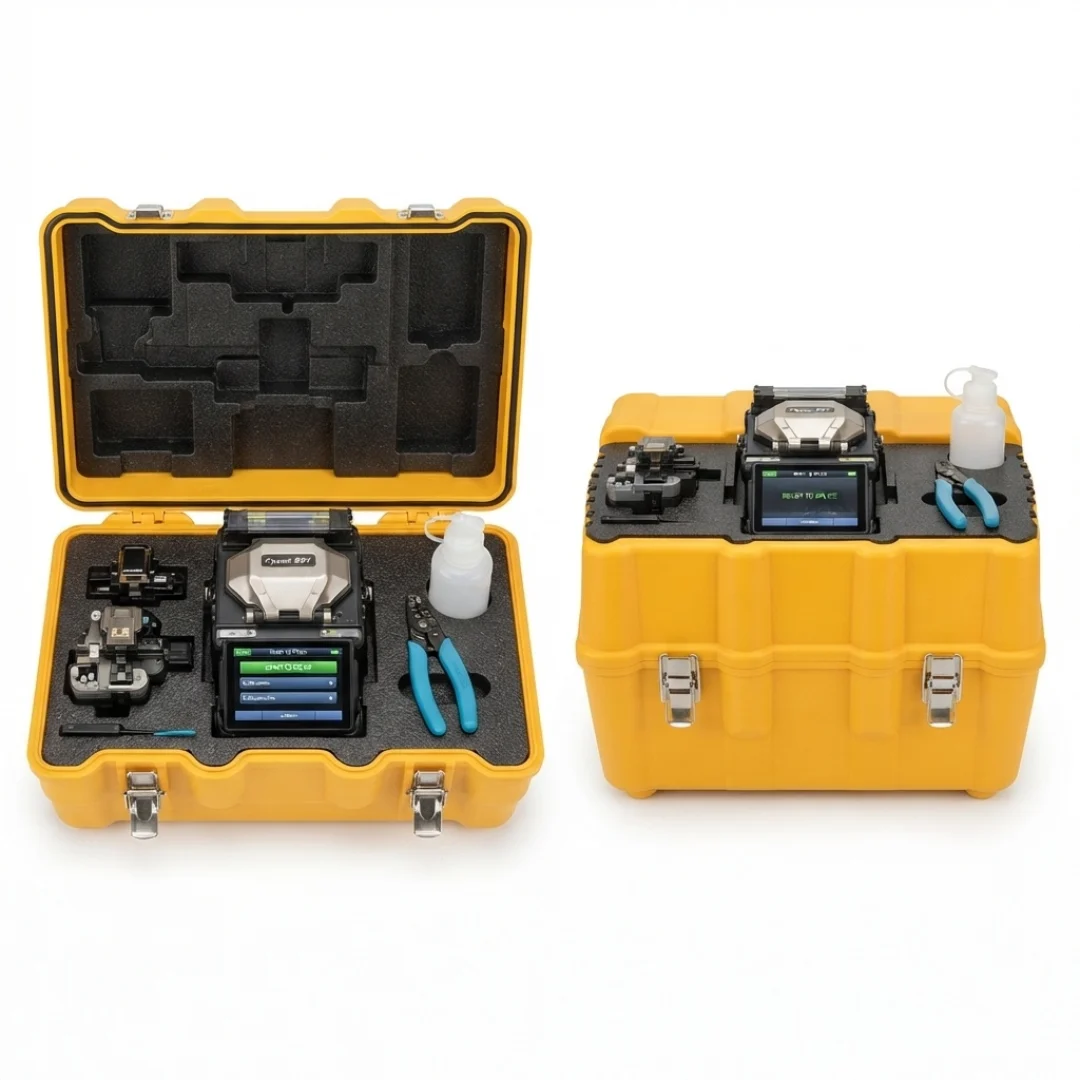

Fujikura 43S is a compact single-fiber fusion splicer designed for accurate optical fiber joining in professional network installation work. Its active clad alignment system supports single-mode and multimode fibers, making it suitable for FTTH, telecom, access networks, and fiber maintenance applications. The 43S features a 4.95-inch touchscreen, fast SM splicing, rechargeable battery operation, Bluetooth connectivity, and built-in storage for splice results and images. Its lightweight design and supplied fiber preparation tools make it practical for both field and workshop use. Key Features: Active clad alignment for accurate fiber positioning Supports single-mode and multimode optical fibers Approx. 6–7 second SM FAST splice time 4.95-inch TFT touchscreen with up to 300× magnification Lightweight 1.4 kg design with battery Bluetooth 5.2 and built-in splice data storage Specifications: Alignment Method- Active Clad Alignment Fiber Type- Single Mode & Multi Mode Fiber Count- Single Fiber Splice Time- Approx. 6–7 sec Splice Loss- G.652: Avg. 0.03 dB Display- 4.95-inch TFT Touchscreen Magnification- Approx. 132–300× Electrode Life- Approx. 6,000 splices Weight- Approx. 1.4 kg with battery Battery- 14.4V, 3190mAh Li-Ion Wireless- Bluetooth 5.2 Data Storage- Up to 20,000 splice results
