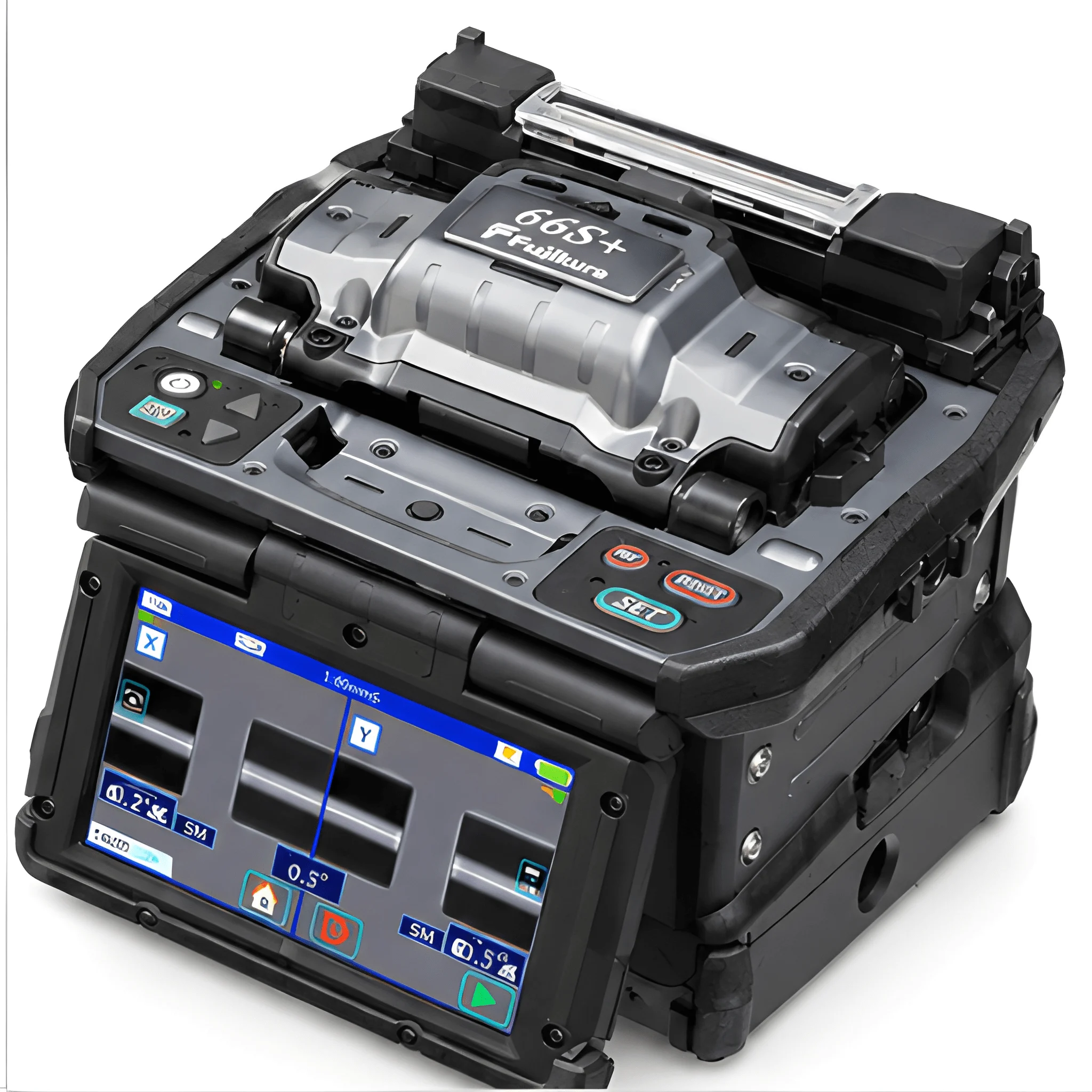

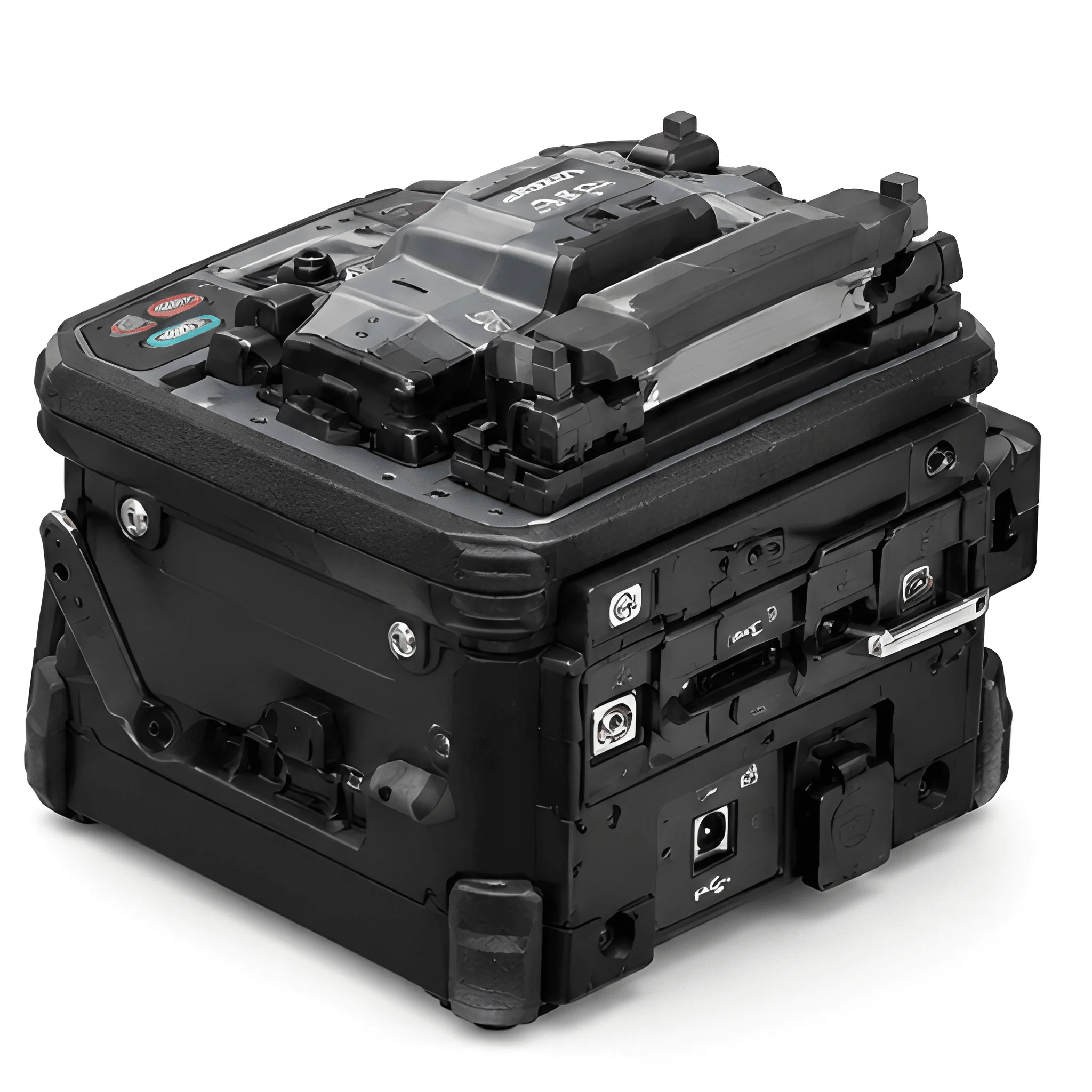

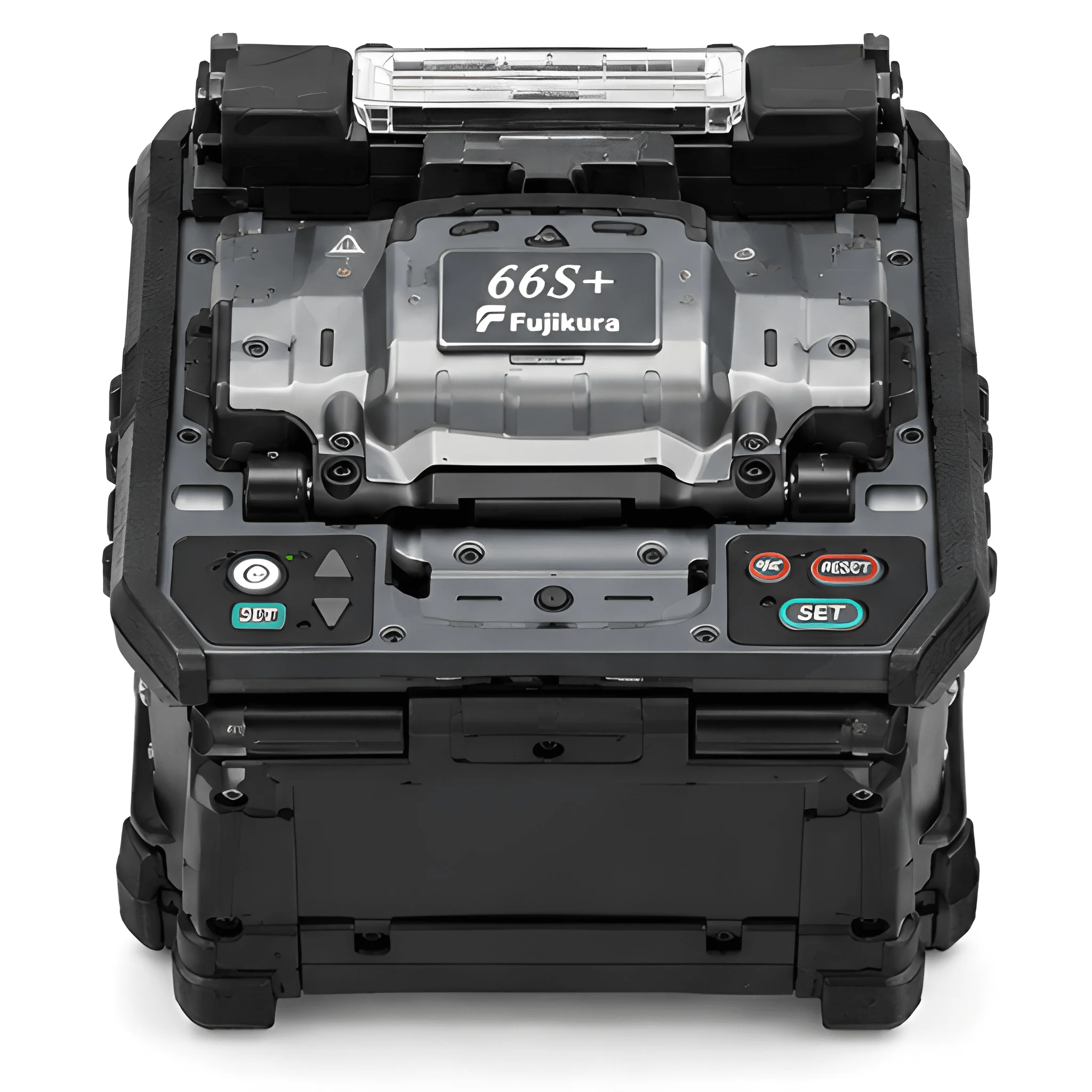

Fujikura Splicing Machines 66S+ (Core To Core) single Core fiber Splicing Machine

The Fujikura 66S+ Core Alignment Fusion Splicing Machine is designed for fiber optic technicians working on FTTH deployment, telecom installation, and network maintenance. Its Profile Alignment System (PAS) helps align fiber cores accurately, supporting consistent splicing across different optical fiber types. With a typical splicing time of 7 seconds, automatic operating functions, and flexible splice settings, the Fujikura 66S+ is suitable for demanding field applications. Its touchscreen interface, built-in result storage, and rechargeable battery help technicians manage splicing tasks and maintain work records directly on-site. Key Features: PAS Core Alignment: Supports accurate alignment of fiber cores during splicing. Fast Splicing Workflow: Helps technicians complete routine fiber connections efficiently. Automatic Operation: Functions include fiber type analysis, auto splice start, and automatic heater start. Flexible Splicing Settings: Multiple programs accommodate different fiber types and job requirements. On-Device Record Keeping: Saves splice results and images for reference. Field-Friendly Design: Touchscreen operation and rechargeable power support on-site work. Convenient Sleeve Positioning: Designed to simplify positioning of the protection sleeve before heating. Product Specifications: Brand - Fujikura Model - 66S+ Product Type - Core Alignment Fusion Splicing Machine Fiber Alignment Method - Active Core Alignment using PAS Fiber Count - Single fiber Applicable Fiber Types - SMF (G.652/G.657), MMF (G.651), DSF (G.653), NZDSF (G.655) Cladding Diameter - 80–150 μm Coating Diameter - Up to 3,000 μm Fiber Cleave Length - 5–16 mm Average Splice Loss - G.652: 0.02 dB; G.651: 0.01 dB; G.653/G.654/G.655: 0.04 dB; G.657: 0.02 dB Typical Splicing Time - 7 seconds Protection Sleeve Length - Up to 66 mm Maximum Sleeve Diameter Before Shrinking - 6.0 mm Typical Heating Time - 25 seconds in 60 mm mode Fiber Tensile Test Force - Approximately 2.0 N Electrode Life - Approximately 5,000 splices Splice Modes - 100 Heat Modes - 30 Splice Result Storage - Up to 20,000 records Splice Image Storage - Up to 100 images Display - 4.9-inch TFT touchscreen Display Magnification - 200×–320× Illumination - LED lamp for V-grooves Battery Type - Rechargeable lithium-ion Battery Output - DC 14.4 V / 6,380 mAh Battery Capacity - Approximately 300 splice and heating cycles per charge Battery Recharge Life - Approximately 500 recharge cycles Operating Temperature - 10°C to +50°C Storage Temperature - -40°C to +80°C Operating Humidity - 0–95% RH, non-condensing Storage Humidity - 0–95% RH, non-condensing Maximum Operating Altitude - 5,000 m AC Adapter Input - AC 100–240 V, 50/60 Hz, maximum 1.5 A AC Adapter Output - DC 12 V, maximum 7 A DC Adapter Input - DC 10–15 V, maximum 7 A PC Interface - USB 2.0 Mini-B External Interface - USB 2.0 Type-A Automatic Functions - Fiber type analysis, fusion control, auto wind protector, auto sheath clamp, auto splice start, auto heater start Special Splicing Function - Attenuation splice Built-In Reference Guide - Video and PDF files Electrode Replacement - Tool-free replacement PC Software Functions - Firmware updates, PC operation, parameter upload/download, splice image download Dimensions - 170 × 173 × 150 mm Weight - Approximately 2.7 kg, including battery
