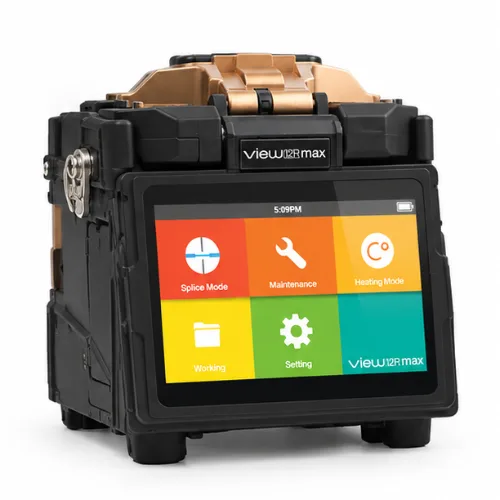

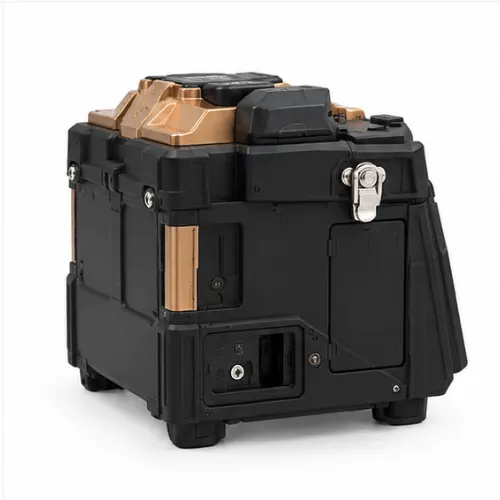

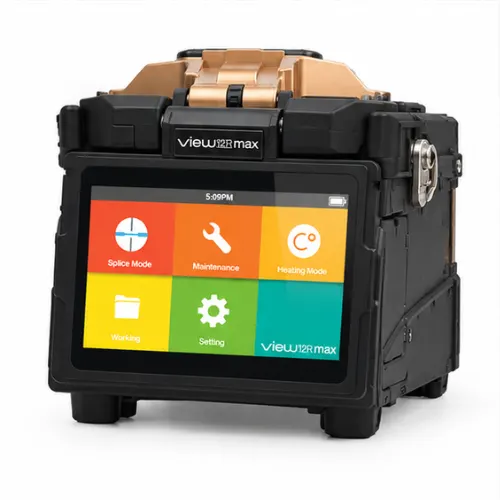

INNO VIEW12R MAX Ribbon Splicing Machine – 12 Fiber High-Precision Splicer

The INNO VIEW12R MAX Ribbon Splicing Machine is designed for high-precision splicing of ribbon optical fibers, supporting up to 12 fibers in a single operation. Its fully motorized clamp alignment system helps achieve accurate fiber positioning for reliable splicing performance. Featuring a 5-inch color LCD touchscreen and magnification up to 250X, the machine enables clear fiber inspection and convenient operation. Its high-capacity battery, fast splicing cycles, and dedicated heating modes make it suitable for FTTH, telecom infrastructure, and high-density fiber network installations. Key Features: 12-Fiber Ribbon Splicing: Supports ribbon fiber splicing for up to 12 fibers. Motorized Clamp Alignment: Provides automatic clamp positioning for precise alignment. Up to 250X Magnification: Enables detailed fiber inspection. 5-Inch Color LCD: Offers a clear display and convenient operation. High-Capacity Battery: Supports approximately 220 splice-and-heat cycles, or up to 260 cycles in power-saving usage. Fast Splicing: Ribbon fiber in approximately 15 seconds and single fiber in 9 seconds. Efficient Heating: Ribbon sleeve (40 mm) in approximately 20 seconds and single sleeve (60 mm) in 15 seconds. Universal Single-Fiber Holder: Supports both 250 μm and 900 μm single fibers. Long Electrode Life: Rated for approximately 3,000 arc discharges. Two-Year Warranty: As specified by the supplier. Specifications: Brand: INNO Model: VIEW12R MAX Product Type: Ribbon Fiber Fusion Splicer Splicing Capacity: Up to 12 Fibers Alignment Method: Fully Motorized Clamp Alignment Magnification: Up to 250X Display: 5-Inch Color LCD Touchscreen Battery Performance: Approx. 220 cycles (typical) / Up to 260 cycles (power-saving usage) Electrode Life: Approx. 3,000 Arc Discharges Ribbon Fiber Splicing Time: Approx. 15 sec Single Fiber Splicing Time: Approx. 9 sec Ribbon Sleeve Heating Time: Approx. 20 sec (40 mm sleeve) Single Sleeve Heating Time: Approx. 15 sec (60 mm sleeve) Single-Fiber Holder: Universal Holder for 250 μm and 900 μm Fibers Typical Splice Loss (SM): 0.05 dB Typical Splice Loss (MM): 0.02 dB Typical Splice Loss (DS): 0.08 dB Typical Splice Loss (NZDS): 0.08 dB Warranty: Two Years
