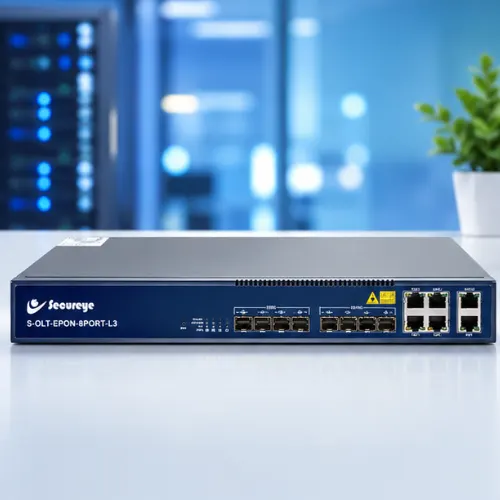

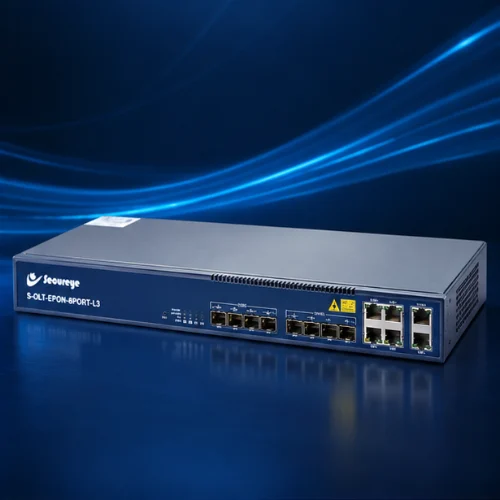

Secureye 8 Port Layer 3 EPON OLT with Dual Power Supply

The Secureye 8 Port Layer 3 EPON OLT is designed for fiber broadband networks, FTTH deployments and ISP infrastructure. It supports up to 512 ONT terminals with a maximum 1:64 splitting ratio per PON port, as specified for the 8-port configuration. The device features Gigabit Ethernet and optical uplink interfaces, Layer 2 switching, Layer 3 routing and flexible VLAN management. Its 1U rackmount design and dual power input support make it suitable for organized network installations. Management options include EMS, Web, CLI, Telnet and SSH for network monitoring and configuration. Suitable for service providers and enterprise network deployments requiring scalable fiber access and centralized management. Key Features: 8 EPON ports for fiber access networks Supports up to 512 ONT terminals, subject to the confirmed configuration Maximum 1:64 splitting ratio per PON port Gigabit Ethernet, 1G SFP and 10G SFP+ uplink interfaces Layer 2 switching and Layer 3 routing support Static routing, RIP v1/v2 and OSPF support VLAN management, link aggregation and IGMP snooping QoS, ACL, RSTP and port isolation Dual power input support EMS, Web, CLI, Telnet, SSH and app-based management Up to 20 km transmission distance, depending on optical conditions Compact 1U, 19-inch rackmount design Specifications: Brand: Secureye Product Type: Layer 3 EPON OLT EPON Port Count: 8 ports — confirm against the model number Maximum ONT Capacity: Up to 512 terminals, as specified for the 8-port configuration Maximum Split Ratio: 1:64 Uplink Interfaces: 4 × Gigabit RJ45, 4 × 1G SFP and 4 × 10G SFP+ (listed configuration; confirm model compatibility) EPON Standard: IEEE 802.3ah Optical Module Type: PX20+ / PX20++ EPON Speed: 1.25 Gbps upstream and 1.25 Gbps downstream Transmission Distance: Up to 20 km Layer 2 Features: Port VLAN, Protocol VLAN, VLAN tagging, VLAN translation, link aggregation and IGMP snooping Layer 3 Features: Static routing, RIP v1/v2 and OSPF Additional Features: QoS, ACL, RSTP, ONU auto-discovery, remote software upgrade and bandwidth control Management: EMS, Web, Telnet, CLI, SSH and app Chassis: 1U, 19-inch rackmount Dimensions: 442 × 320 × 43 mm — confirm for the 8-port version Weight: 6.5 kg — confirm for the 8-port version Power Input: AC 100–240 V, 50/60 Hz; DC -48 V Dual Power Backup: Supported as specified Maximum Power Consumption: 95 W — confirm for the 8-port version Operating Temperature: 0°C to +50°C Storage Temperature: The supplied specification states 40°C to +85°C; confirm whether the lower limit should be -40°C Relative Humidity: 5%–90%, non-condensing IPv6 Support: IPv6 Ping, Telnet, ACL and MLD snooping
