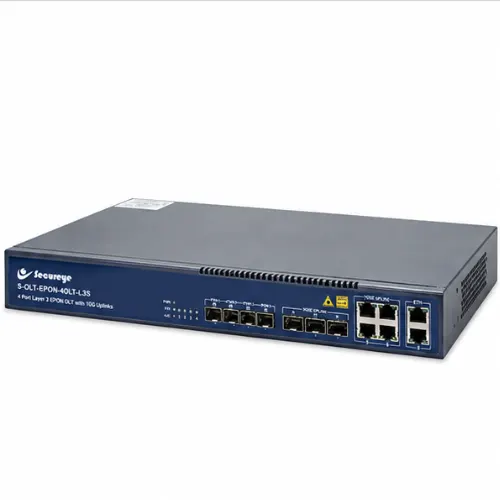

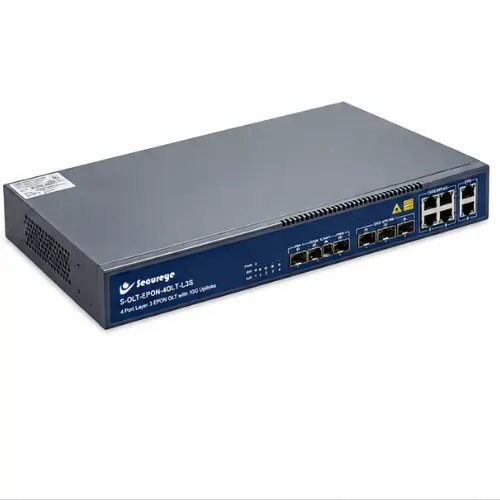

Secureye S-OLT-EPON-4OLT-L3S 4 Port Layer 3 EPON OLT with 10G Uplinks

The Secureye S-OLT-EPON-4OLT-L3S is a 4-port Layer 3 EPON Optical Line Terminal designed for fiber broadband deployments, ISP networks and enterprise connectivity. It supports up to 256 ONUs with a 1:64 splitter ratio and provides EPON transmission over distances of up to 20 km. The device features four EPON interfaces, four Gigabit RJ45 ports and four high-speed optical uplink interfaces as specified. Layer 3 routing, VLAN separation, access control and IPv6-related functions help network administrators manage traffic across different services. With a compact 1U rackmount chassis and support for EMS, Web, Telnet, SSH and app-based management, this OLT is suitable for FTTH, triple-play services, IP surveillance, enterprise LAN and IoT deployments. Key Features: 4 × EPON ports Supports up to 256 ONUs Maximum splitter ratio of 1:64 4 × Gigabit RJ45 ports 4 × optical uplink interfaces supporting 1GE SFP / 10GE SFP+ as specified EPON transmission distance up to 20 km IEEE 802.3ah compliance Layer 3 static routing and RIP v1/v2 support Optional OSPF v2 support IPv6 support with IPv6 Ping and Telnet VLAN separation, data encryption and RSTP ACL and multicast snooping support EMS, Web, Telnet, CLI, SSH and app management Compact 1U, 19-inch rackmount design Specifications: Brand: Secureye Model: S-OLT-EPON-4OLT-L3S Product Type: Layer 3 EPON Optical Line Terminal EPON Ports: 4 × EPON Maximum ONU Capacity: 256 ONUs Maximum Split Ratio: 1:64 Uplink RJ45 Ports: 4 × Gigabit Ethernet Optical Uplink Interfaces: 4 × 1GE SFP / 10GE SFP+ as specified EPON Standard: IEEE 802.3ah EPON Physical Interface: SFP slot Optical Module Type: PX20+ Transmission Distance: Up to 20 km EPON Downstream Speed: 1.25 Gbps EPON Upstream Speed: 1.25 Gbps Transmit Wavelength: 1490 nm Receive Wavelength: 1310 nm Optical Connector: SC/UPC Fiber Type: 9/125 μm Single-Mode Fiber Transmit Optical Power: +2 to +7 dBm (PX20+) Receiver Sensitivity: -30 dB as supplied; confirm unit with supplier Saturation Optical Power: -6 dBm Management Interfaces: 1 × 10/100BASE-T out-of-band port, 1 × Console port Layer 3 Features: Static routing, RIP v1/v2 and optional OSPF v2 IPv6 Features: IPv6 Ping, IPv6 Telnet, IPv6-based ACL and MLD snooping Network Features: VLAN separation, RSTP, data encryption, ACL and multicast management Power Supply AC: 100–240 V AC, 47–63 Hz Power Supply DC: -48 V DC Dual Power Module: Supported as indicated in supplied specification Battery Backup Unit (BBU): Supported as indicated in supplied specification Maximum Power Consumption: 30 W Operating Temperature: 0°C to +50°C Storage Temperature: -40°C to +85°C Relative Humidity: 5%–90%, non-condensing Dimensions (L × W × H): 442 × 200 × 43 mm Weight: 3.2 kg
