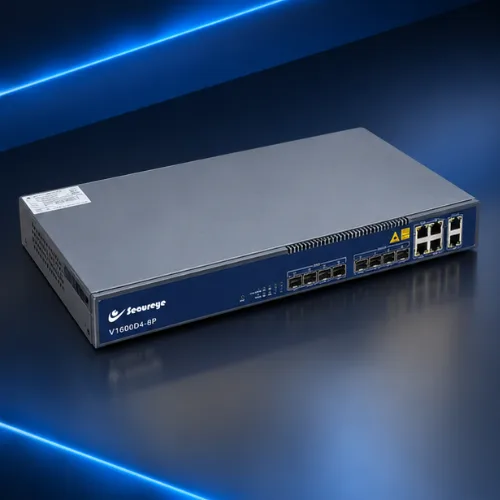

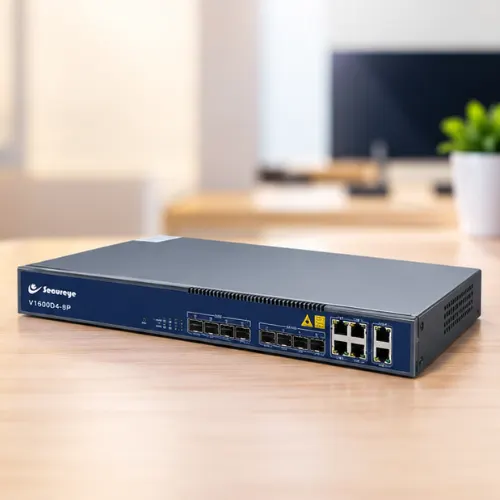

Secureye S-OLT-EPON-8OLT-L3S 8 Port Layer 3 EPON OLT

The Secureye S-OLT-EPON-8OLT-L3S is an 8-port Layer 3 EPON Optical Line Terminal designed for FTTH deployments, ISP networks and enterprise connectivity. It supports up to 512 ONUs with a maximum 1:64 splitter ratio, making it suitable for fiber access network expansion. The OLT provides 8 Gigabit Ethernet RJ45 ports, 4 Gigabit SFP interfaces and 4 high-speed 10G SFP+ uplinks. Layer 2 switching, Layer 3 routing, VLAN management and QoS features help administrators manage network traffic efficiently. Its compact 1U rackmount design supports space-efficient installation, while EMS, Web, CLI, Telnet and SSH management options simplify network configuration and monitoring. Suitable applications include triple-play services, IP surveillance, enterprise LAN and IoT networks. Key Features: 8 EPON ports for fiber access networks Supports up to 512 ONUs with a 1:64 splitter ratio 8 × Gigabit Ethernet RJ45 ports 4 × 1GE SFP and 4 × 10GE SFP+ uplink interfaces IEEE 802.3ah EPON standard support Layer 2 switching and Layer 3 routing capabilities Static routing, RIP v1/v2 and optional OSPF v2 VLAN management with support for up to 4096 VLANs QoS, link aggregation, IGMP snooping and RSTP ONU auto-discovery, link detection and remote software upgrades EMS, Web, Telnet, CLI, SSH and app management Compact 1U, 19-inch rackmount chassis Suitable for FTTH, ISP, enterprise LAN, IP camera and IoT applications Specifications: Brand: Secureye Model Number: S-OLT-EPON-8OLT-L3S Product Type: Layer 3 EPON Optical Line Terminal Chassis: 1U, 19-inch rackmount EPON Port Quantity: 8 Maximum ONU Capacity: 512 Maximum Split Ratio: 1:64 Uplink RJ45 Ports: 8 × Gigabit Ethernet 1G Optical Uplinks: 4 × SFP 10G Optical Uplinks: 4 × SFP+ EPON Physical Interface: SFP slot Optical Module Type: PX20+ / PX20++ EPON Transmission Speed: 1.25 Gbps upstream and 1.25 Gbps downstream EPON Standard: IEEE 802.3ah Management Interfaces: 1 × 10/100M out-of-band Ethernet port, 1 × Console port Management Methods: EMS, Web, Telnet, CLI, SSH and app Layer 2 Features: Port VLAN, Protocol VLAN, VLAN tagging, VLAN translation, link aggregation, IGMP snooping and RSTP Layer 3 Features: Static routing, RIP v1/v2 and optional OSPF v2 Additional Features: QoS, ACL, ONU speed limiting, auto-discovery, link detection and remote software upgrade Power Input: AC 100–240 V, 50/60 Hz; DC -48 V or +12 V Dual Power Backup: Not supported Maximum Power Consumption: 55 W Dimensions (L × W × H): 442 × 320 × 43 mm Weight: 4.5 kg Operating Temperature: 0°C to +50°C Storage Temperature: -40°C to +85°C Relative Humidity: 5%–90%, non-condensing
