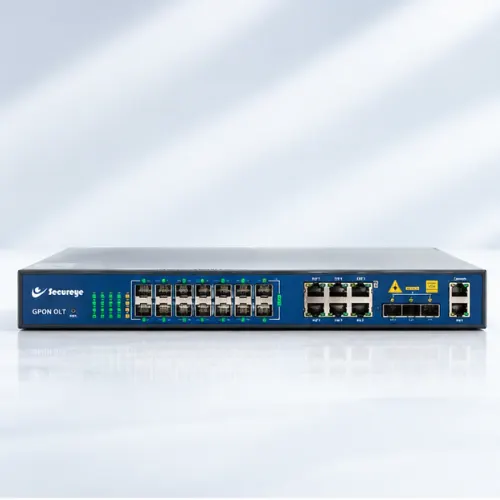

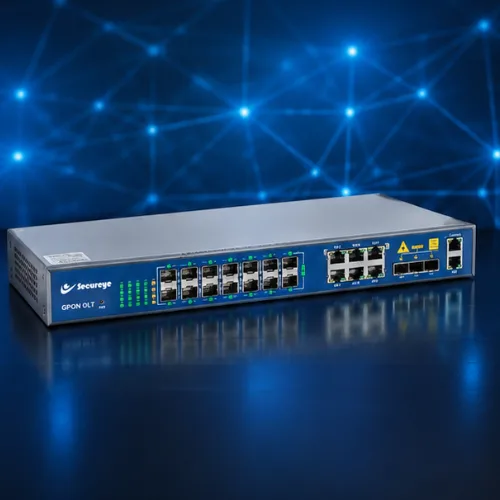

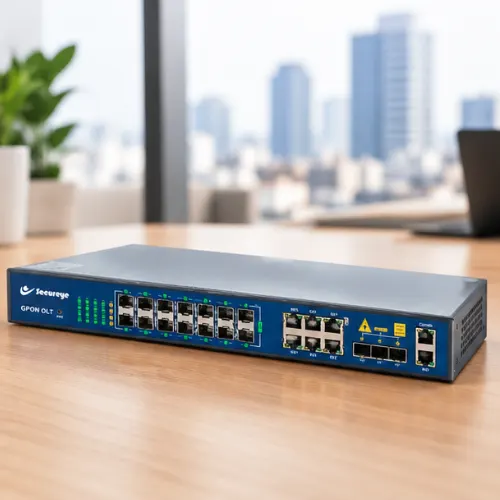

Secureye S-OLT-GPON-16 Port Layer 3 GPON OLT with Dual Power Backup

The Secureye S-OLT-GPON-16 is a 16-port Layer 3 GPON Optical Line Terminal designed for FTTH deployments, broadband service providers and enterprise fiber networks. It supports a maximum 1:128 splitting ratio and offers transmission distances of up to 20 km under suitable network conditions. The unit features 8 Gigabit Ethernet RJ45 ports and 4 optical uplink interfaces supporting the specified 1GE SFP / 10GE SFP+ configuration. Layer 2 switching, Layer 3 routing, VLAN management, multicast handling and QoS functions help support efficient traffic control across connected services. Its 1U rackmount design, dual power module hot backup and EMS-based management make it suitable for centralized fiber access deployments. The platform supports compatible third-party ONTs, subject to interoperability and configuration requirements. Key Features: 16 GPON ports for fiber access networks Maximum 1:128 optical splitting ratio Up to 20 km transmission distance 8 × Gigabit Ethernet RJ45 ports 4 × 1GE SFP / 10GE SFP+ optical uplink interfaces, as specified GPON Class C+ optical module support Layer 2 switching and Layer 3 routing functions Supports up to 4096 VLANs and QinQ QoS, ACL, port isolation and storm control IGMP snooping and support for 256 multicast groups DHCP server, relay and snooping functions Static routing, RIP v1/v2 and optional OSPF v2 Dual power module hot backup EMS, Web, SNMP, Telnet, CLI and SSH management Compact 1U, 19-inch rackmount design Specifications: Brand: Secureye Model: S-OLT-GPON-16 Port L3 Product Type: Layer 3 GPON Optical Line Terminal Chassis: 1U, 19-inch rackmount GPON Ports: 16 Maximum Split Ratio: 1:128 Optical Interface: SFP slot Optical Module Class: C+ GPON Standard: ITU-T G.984 / G.988, as specified Transmission Distance: Up to 20 km GPON Downstream Speed: 2.488 Gbps GPON Upstream Speed: 1.244 Gbps Fiber Type: 9/125 μm single-mode fiber Transmit Power: +3 to +7 dBm Receiver Sensitivity: -30 dBm Optical Wavelength: TX 1490 nm / RX 1310 nm Connector: SC/UPC Saturation Optical Power: -12 dBm RJ45 Uplink Ports: 8 × Gigabit Ethernet Optical Uplink Interfaces: 4 × 1GE SFP / 10GE SFP+ Management Ports: 1 × 10/100BASE-T out-of-band port, 1 × Console port Management Methods: EMS, SNMP, Web, Telnet, CLI and SSH Layer 2 Features: 4096 VLANs, VLAN tagging, VLAN translation, QinQ, LACP, RSTP, QoS and port isolation Multicast: IGMP snooping, up to 256 IP multicast groups DHCP Features: DHCP server, relay and snooping Layer 3 Features: ARP proxy, static routing, RIP v1/v2 and optional OSPF v2 Hardware Routing Capacity: 1024 host routes and 512 subnet routes Power Input: AC 100–240 V, 47/63 Hz; DC -48 V Dual Power Module Hot Backup: Supported Power Consumption: 85 W Dimensions (L × W × H): 442 × 320 × 43.6 mm Weight: 4.5 kg Operating Temperature: 0°C to +50°C Storage Temperature: -40°C to +85°C Relative Humidity: 5%–90%, non-condensing
