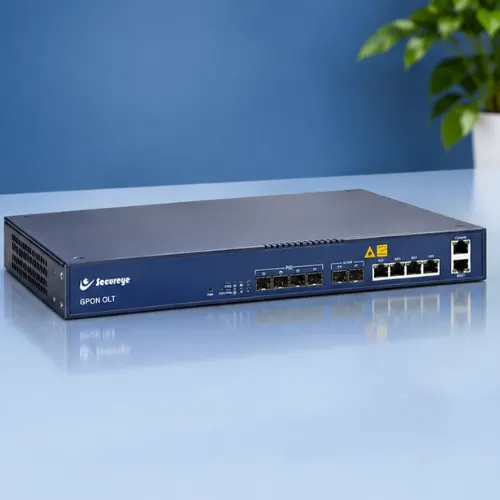

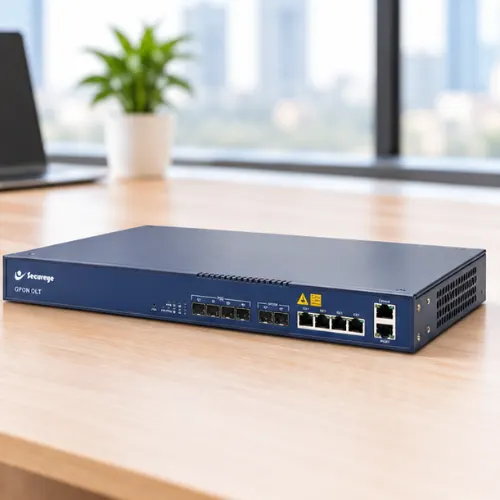

Secureye S-OLT-GPON-4OLT-L3D 4 Port Layer 3 GPON OLT with Dual Power Supply

The Secureye S-OLT-GPON-4OLT-L3D is a 4-port Layer 3 GPON Optical Line Terminal designed for FTTH deployments, ISP broadband services and fiber access networks. It supports up to 512 ONUs and offers a maximum optical split ratio of 1:128, making it suitable for scalable multi-user connectivity. The device includes four Gigabit RJ45 uplink ports and two SFP/SFP+ uplink interfaces for flexible network integration. Layer 2 switching, VLAN management, QoS, multicast handling and Layer 3 routing features help administrators manage network traffic efficiently. With EMS, Web, Telnet, CLI and SSH management options, the OLT supports centralized monitoring and configuration. Its compact 1U rackmount chassis and dual power supply backup support make it a practical choice for service providers and enterprise fiber networks. Key Features: 4 × GPON ports Supports up to 512 ONUs Maximum split ratio of 1:128 4 × Gigabit RJ45 uplink ports 2 × SFP/SFP+ uplink interfaces Layer 3 routing with static route support VLAN, QinQ and VLAN translation QoS, ACL and port bandwidth control IGMP snooping and multicast support EMS, Web, Telnet, CLI and SSH management Dual power supply with hot-backup support Compact 1U, 19-inch rackmount design Specifications: Brand: Secureye Model: S-OLT-GPON-4OLT-L3D Product Type: Layer 3 GPON Optical Line Terminal GPON Ports: 4 Maximum ONU Capacity: 512 ONUs Maximum Split Ratio: 1:128 Uplink RJ45 Ports: 4 × Gigabit Ethernet Optical Uplink Interfaces: 2 × 1GE SFP / 10GE SFP+ Management Ports: 1 × 10/100BASE-T out-of-band, 1 × Console, 1 × USB Type-C GPON Module Class: C+ Transmission Distance: Up to 20 km GPON Downstream Speed: 2.488 Gbps GPON Upstream Speed: 1.244 Gbps Transmit Wavelength: 1490 nm Receive Wavelength: 1310 nm Optical Connector: SC/UPC Fiber Type: 9/125 μm Single-Mode Fiber Transmit Optical Power: +3 to +7 dBm (PX20+ module specification) Receiver Sensitivity: -30 dBm (PX20+ module specification) Saturation Optical Power: -12 dBm (PX20+ module specification) Switching Features: VLAN, QinQ, VLAN translation, port isolation, storm control and static LACP VLAN Capacity: 4096 VLANs MAC Address Table: 16K Multicast: IGMP snooping, 256 IP multicast groups Layer 3 Features: Static routing, RIP v1/v2 and optional OSPF v2 Management Modes: EMS, Web, SNMP, Telnet, CLI and SSH Power Supply AC: 100–240 V AC, 47–63 Hz Power Supply DC: -48 V DC Power Redundancy: Dual power module hot backup Power Consumption: 45 W Operating Temperature: 0°C to +50°C Storage Temperature: -40°C to +85°C Relative Humidity: 5%–90%, non-condensing Dimensions (L × W × H): 442 × 220 × 43.6 mm Weight: 2.8 kg Standards: ITU-T G.984 and G.988
