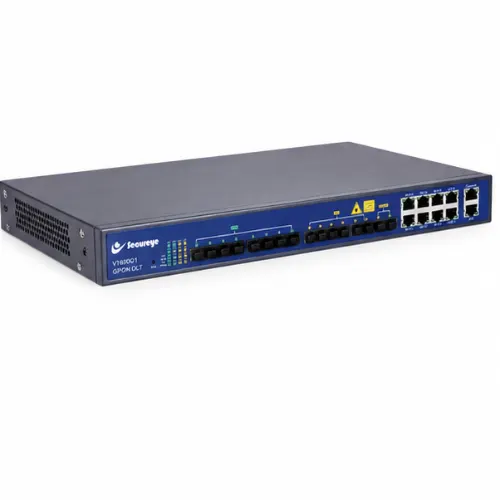

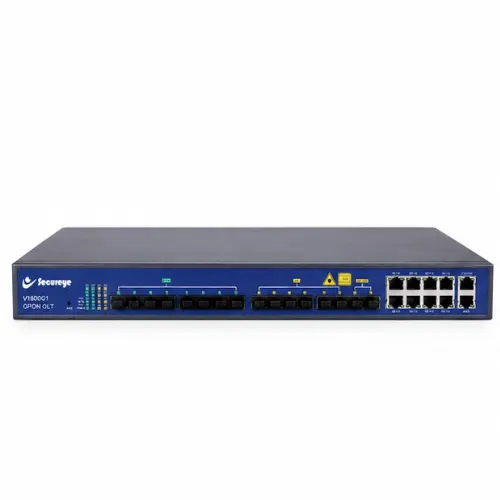

Secureye S-OLT-GPON-8OLT-L3S 8 Port Layer 3 GPON OLT Unloaded

The Secureye S-OLT-GPON-8OLT-L3S is an 8-port Layer 3 GPON Optical Line Terminal designed for ISP broadband services, FTTH deployments and fiber access networks. It supports up to 1024 ONUs and offers 1G and 10G uplink connectivity for flexible network expansion. The OLT supports GPON transmission over distances of up to 20 km and provides Layer 2 switching, VLAN management, QoS, multicast handling and Layer 3 routing features. Network administrators can manage the device through WEB, EMS, SNMP, Telnet, CLI and SSH interfaces. Its compact 1U rackmount design, hot-backup dual power module support and comprehensive ONU management features make it suitable for service providers building scalable fiber broadband infrastructure. This is an unloaded configuration; confirm the included GPON modules and other accessories before purchase. Key Features: 8-port Layer 3 GPON OLT Supports up to 1024 ONUs 8 uplink interfaces: 4 × Gigabit RJ45, 2 × 1GE SFP and 2 × 10GE SFP+ GPON transmission distance up to 20 km Maximum split ratio of 1:128 Class C+ GPON module specification Layer 3 static routing and ARP proxy VLAN, QinQ, VLAN translation and port isolation QoS, ACL and bandwidth limitation IGMP snooping and multicast group support WEB, EMS, SNMP, Telnet, CLI and SSH management Dual power module hot-backup support Compact 1U, 19-inch rackmount chassis Specifications: Brand: Secureye Model: S-OLT-GPON-8OLT-L3S Product Type: Layer 3 GPON Optical Line Terminal Configuration: Unloaded Chassis: 1U, 19-inch rackmount GPON Ports: 8 × SFP slots Uplink Interfaces: 4 × 1G RJ45, 2 × 1GE SFP, 2 × 10GE SFP+ Management Interfaces: 1 × 10/100BASE-T out-of-band port, 1 × Console port GPON Module Class: C+ Maximum Split Ratio: 1:128 Transmission Distance: Up to 20 km GPON Downstream Speed: 2.488 Gbps GPON Upstream Speed: 1.244 Gbps Transmit Wavelength: 1490 nm Receive Wavelength: 1310 nm Optical Connector: SC/UPC Fiber Type: 9/125 μm Single-Mode Fiber Transmit Optical Power: +3 to +7 dBm Receiver Sensitivity: -30 dBm Saturation Optical Power: -12 dBm Maximum ONU Support: Up to 1024 ONUs Switching Features: VLAN, QinQ, VLAN translation, port isolation, storm control and LACP VLAN Capacity: 4096 VLANs MAC Address Table: 16K Multicast: IGMP snooping, 256 IP multicast groups Layer 3 Features: Static routing, ARP proxy, 1024 hardware host routes and 512 hardware subnet routes GPON Standards: ITU-T G.984.x and G.988 Management Modes: EMS, WEB, SNMP, Telnet, CLI and SSH Power Supply AC: 100–240 V AC, 47–63 Hz Power Supply DC: -48 V DC Power Redundancy: Dual power module hot-backup support Power Consumption: 45 W Operating Temperature: 0°C to +50°C Storage Temperature: -40°C to +85°C Relative Humidity: 5%–90%, non-condensing Dimensions (L × W × H): 442 × 220 × 43.6 mm Weight: 3.1 kg
