TP-Link

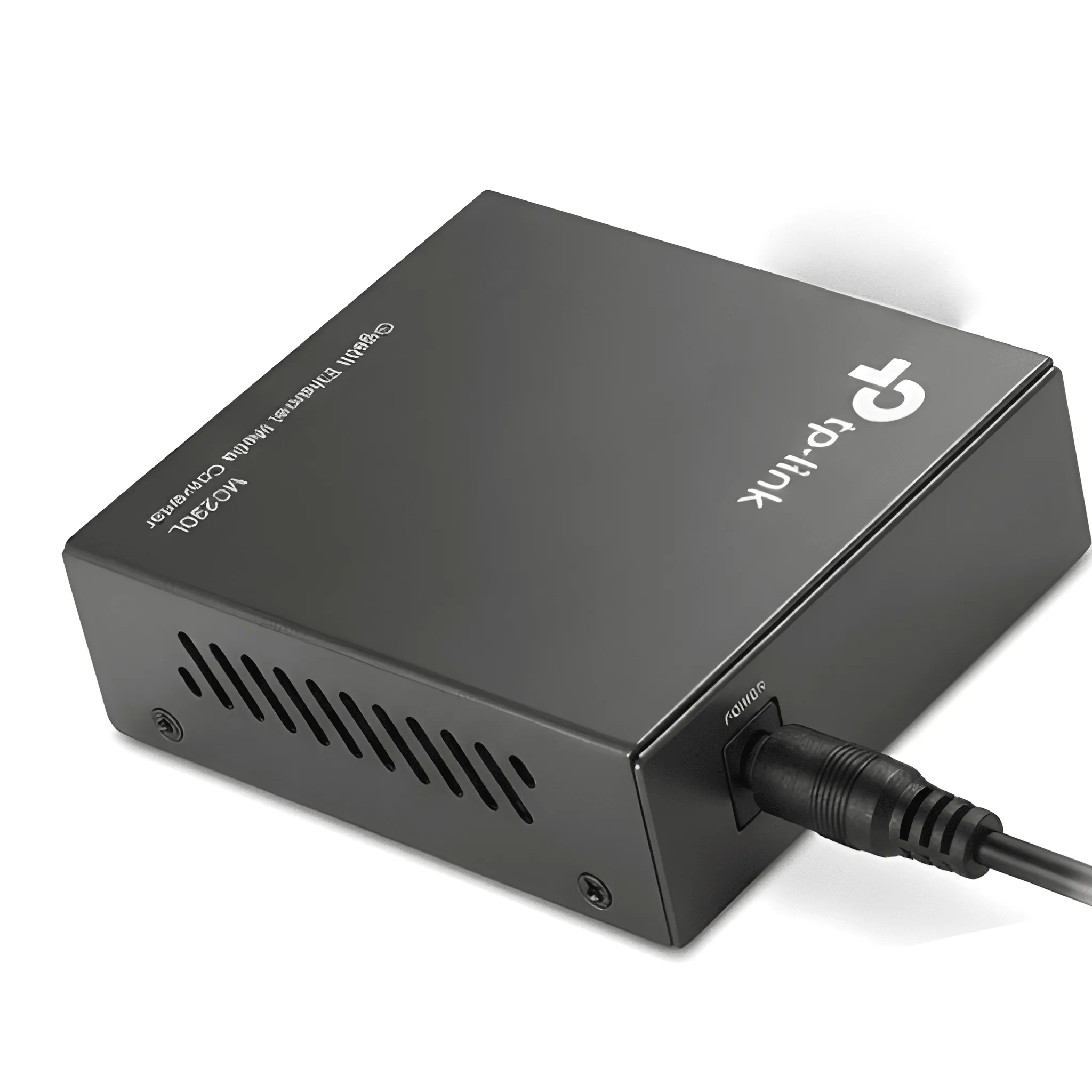

TP-Link MC220L Gigabit SFP Media Converter
₹1,599
₹2,999
47% OFF
You save ₹1,400 (47%)
The TP-Link MC220L Gigabit SFP Media Converter connects copper Ethernet networks with fiber optic links, making it useful for extending network coverage over longer distances. It converts signals between 1000Base-T Ethernet and 1000Base-X fiber through an RJ45 port and SFP slot.
The converter supports both multi-mode and single-mode SFP modules, allowing the fiber setup and transmission distance to be selected according to the network requirement. Its Gigabit performance provides reliable data transfer for business, office, and other network installations.
With Auto MDI/MDIX, automatic duplex selection, hot-swappable FX support, and plug-and-play operation, the MC220L is simple to install and convenient for everyday network expansion.
Key Features
Gigabit Fiber Conversion – Connects copper Ethernet with fiber networks.
SFP Module Flexibility – Works with different compatible SFP modules.
Multi-Mode & Single-Mode Support – Suitable for different fiber deployments.
Auto MDI/MDIX – Simplifies RJ45 network connections.
Hot-Swappable FX Port – Makes fiber module replacement easier.
Compact Plug-and-Play Design – Convenient for quick network installation.
Product Specifications
Brand : TP-Link
Model Name / Number : MC220L
Product Type : Gigabit SFP Media Converter
Conversion : 1000Base-T to 1000Base-X
SFP Port : 1 × 1000M SFP
RJ45 Port : 1 × 10/100/1000M
RJ45 Function : Auto MDI/MDIX
Ethernet Cable : UTP Category 5 / 5e, up to 100m
Fiber Media : 1000BASE-X Multi-Mode / Single-Mode SFP
SFP Wavelength : Depends on Installed SFP Module
Duplex Mode : Auto-Negotiation of Half / Full Duplex
Standards : IEEE 802.3i / 802.3u / 802.3ab / 802.3z
Maximum Fiber Distance : Depends on Installed SFP Module

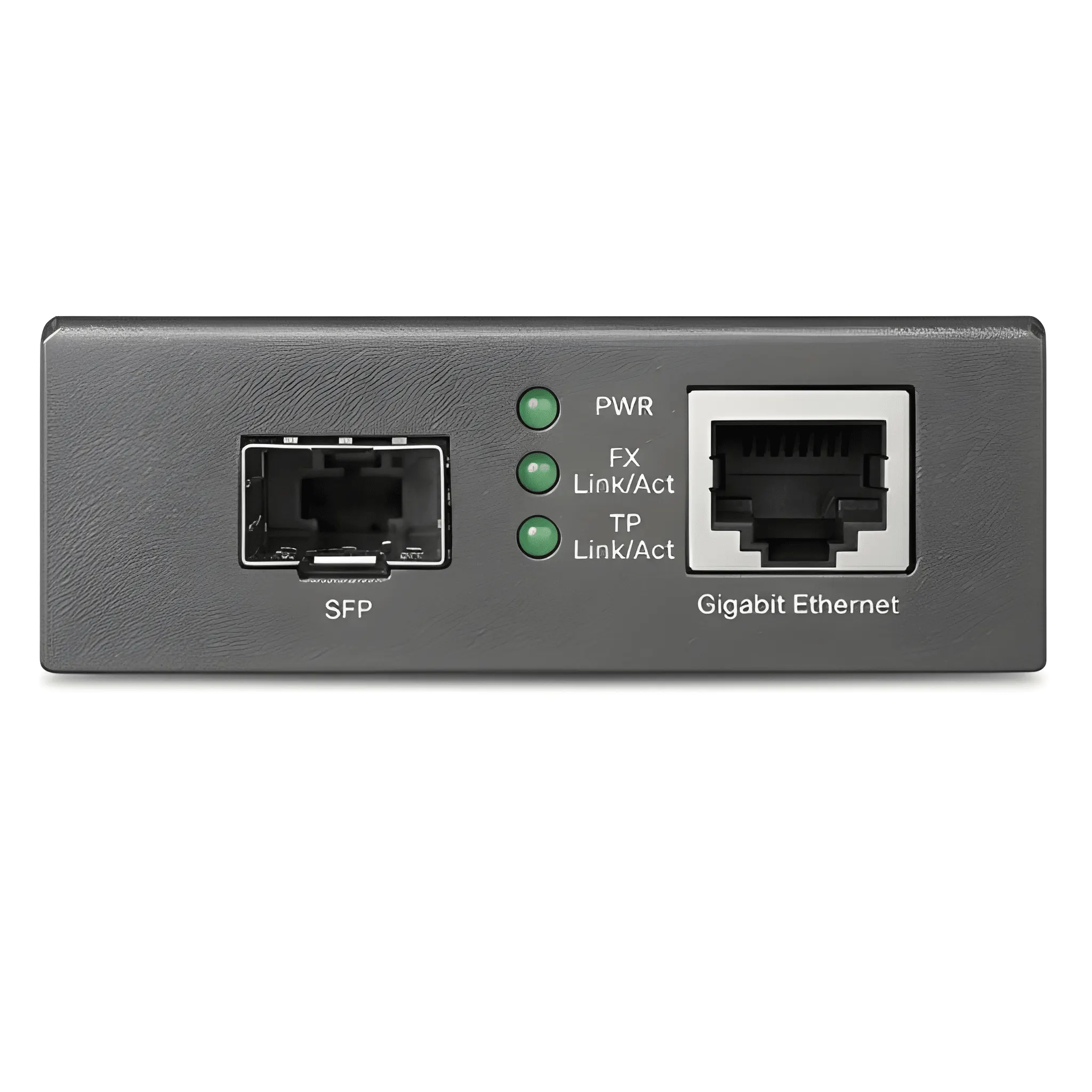

LED Indicators : PWR / Link/Act
Dimensions : 94.5 × 73.0 × 27.0mm
Power Supply : External Power Adapter
Maximum Power Consumption : 1.7W
Operating Temperature : 0°C to 40°C
Storage Temperature : -40°C to 70°C
Operating Humidity : 10%–90%, non-condensing
Storage Humidity : 5%–90%, non-condensing
Safety & Emission : FCC / CE / RoHS
Package Contents : MC220L Media Converter / Power Adapter / Installation Guide
