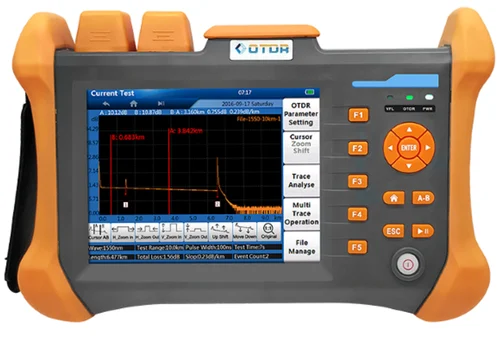

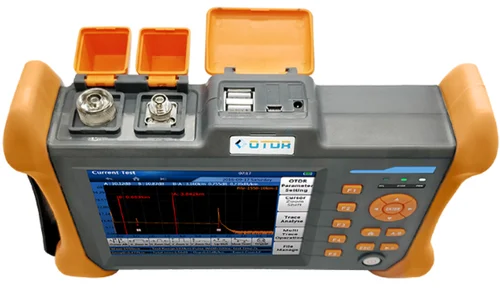

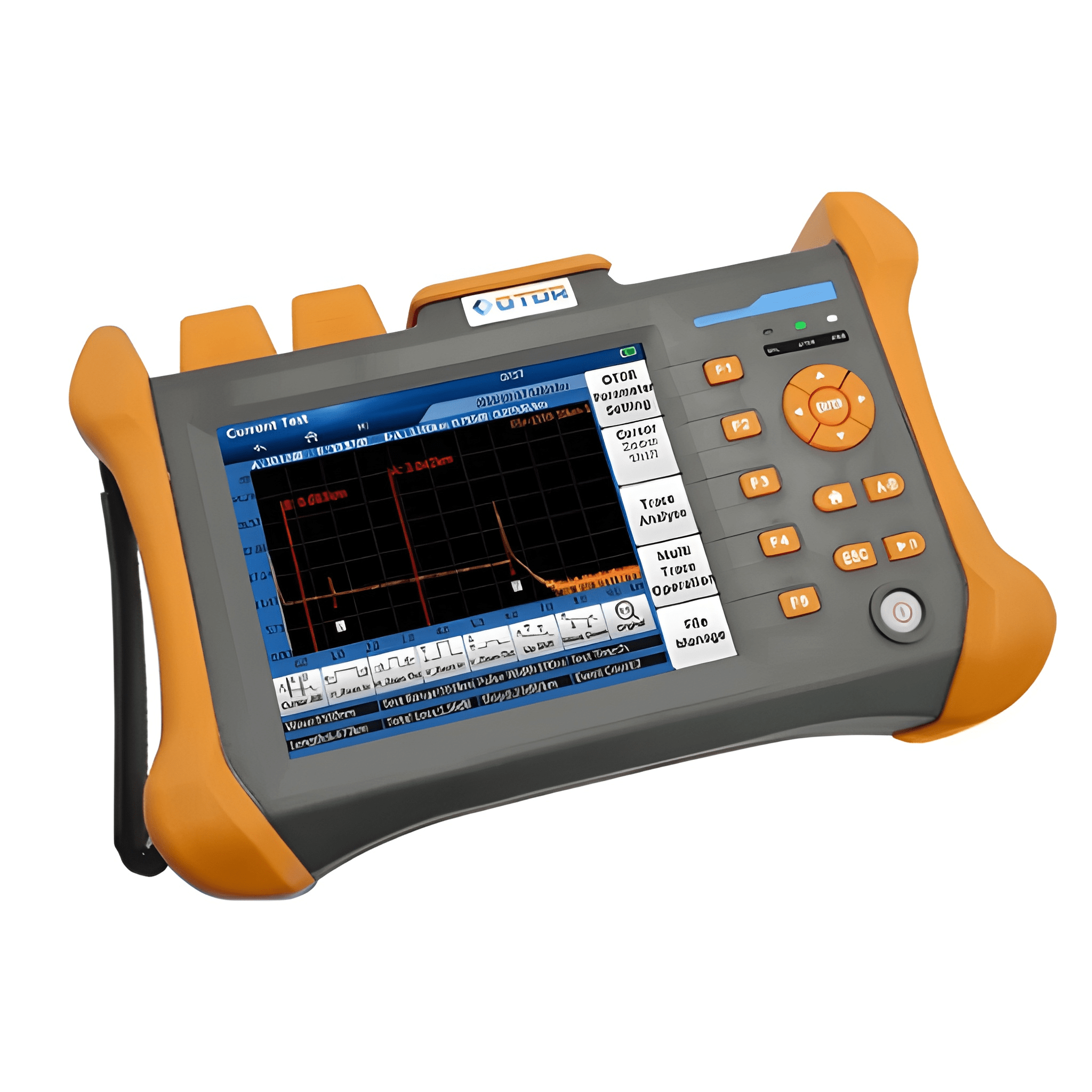

TRICOM TR-450 OTDR – 120km Fiber Optic Tester with 32/30dB Range

The TRICOM TR-450 OTDR is a professional fiber optic testing device made for telecom, ISP, CATV, FTTx, and fiber network applications. It offers a 32/30dB dynamic range with measurement capability up to 120km, helping technicians locate faults and check fiber performance efficiently. The 5.6-inch LCD touchscreen provides easy operation in field and laboratory environments. The TR-450 supports automatic, manual, and real-time testing, along with real-time splicing loss monitoring for detailed fiber analysis. A built-in 10mW VFL helps identify visible fiber faults, while PC remote access, report printing, and data export make test-result handling more convenient. Its 7.4V/4.4Ah lithium battery provides up to 8 hours of operating time for extended field work. Key Features 120km Testing Range – Suitable for long-distance fiber links. 32/30dB Dynamic Range – Supports detailed fiber fault analysis. Real-Time Splicing Monitoring – Helps observe fiber connection loss during testing. 10mW VFL – Useful for locating visible fiber faults. Multiple Test Modes – Auto, manual, and real-time measurement options. PC Connectivity – Supports remote access, report printing, and data export. Specifications Brand : TRICOM Model : TR-450 Product Type : Optical Time Domain Reflectometer (OTDR) Dynamic Range : 32/30dB Maximum Measurement Range : 120km Display : 5.6-inch LCD Touchscreen VFL Output : 10mW Battery : 7.4V / 4.4Ah Lithium Battery Battery Runtime : Up to 8 Hours Test Modes : Automatic / Manual / Real-Time Input Method : Computer-Style Keyboard Supported Functions : PC Remote Access / Report Printing / Data Export Language Support : Multilingual Application : Telecom / ISP / CATV / FTTx / Fiber Networks
