Uniway Fiber optic cable testing tool

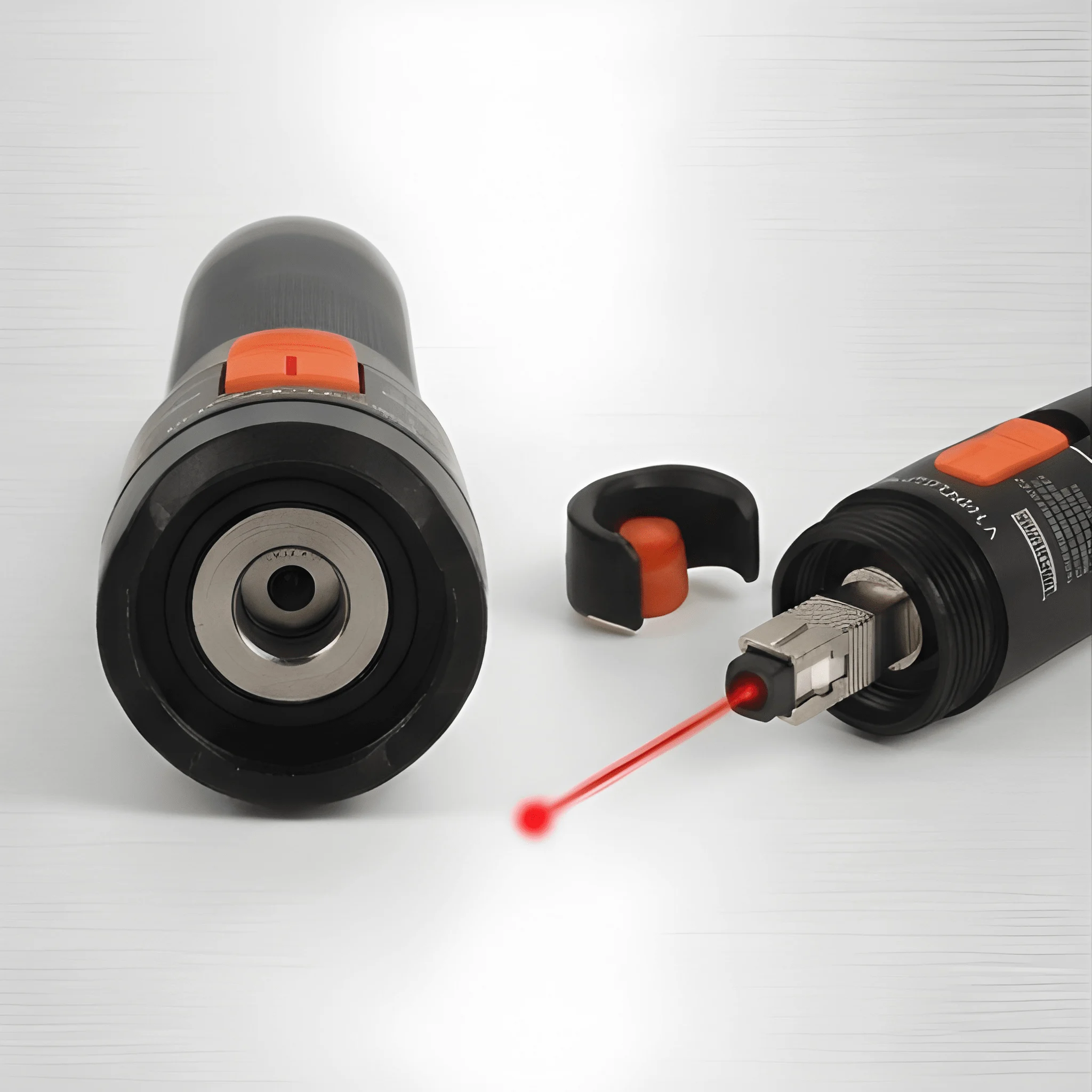

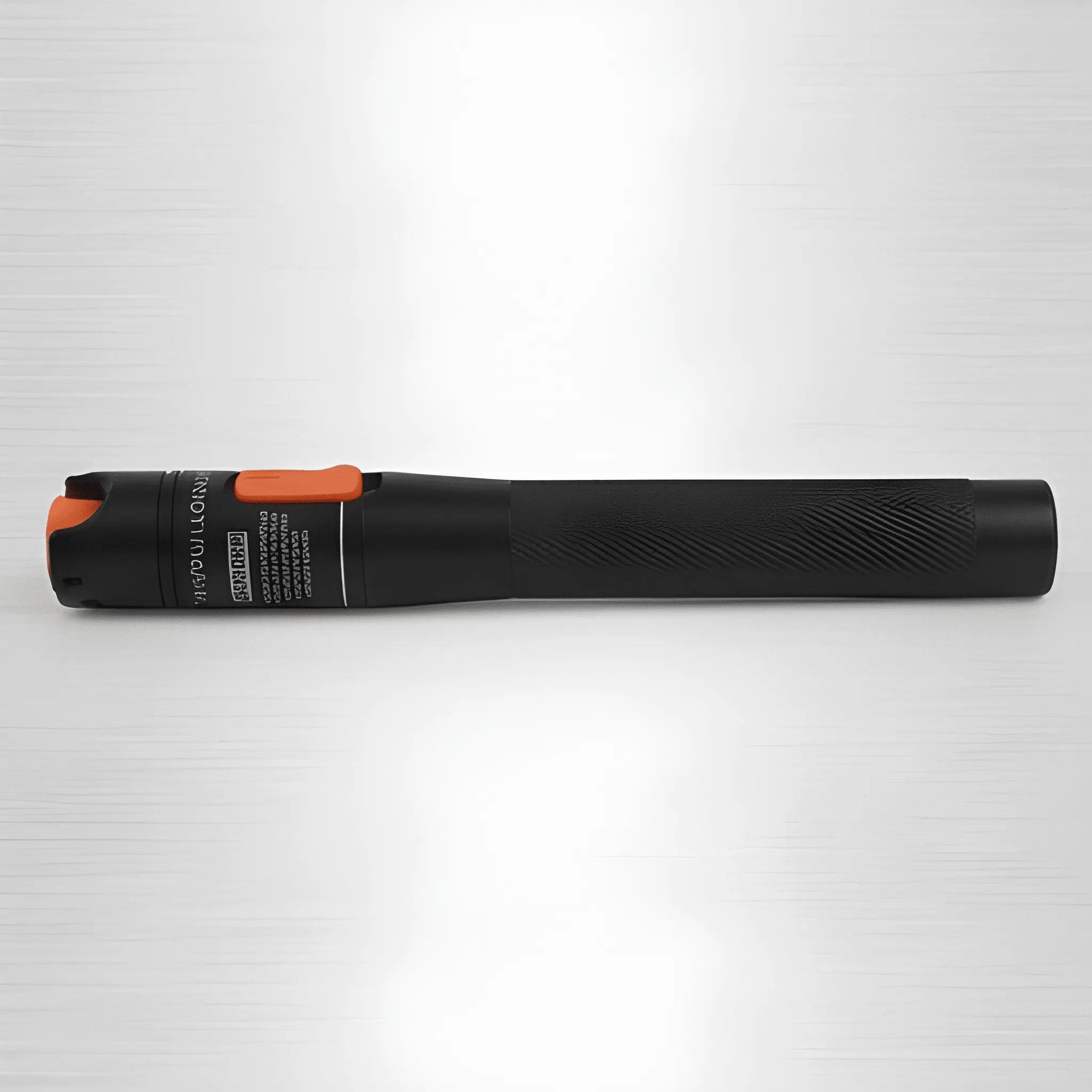

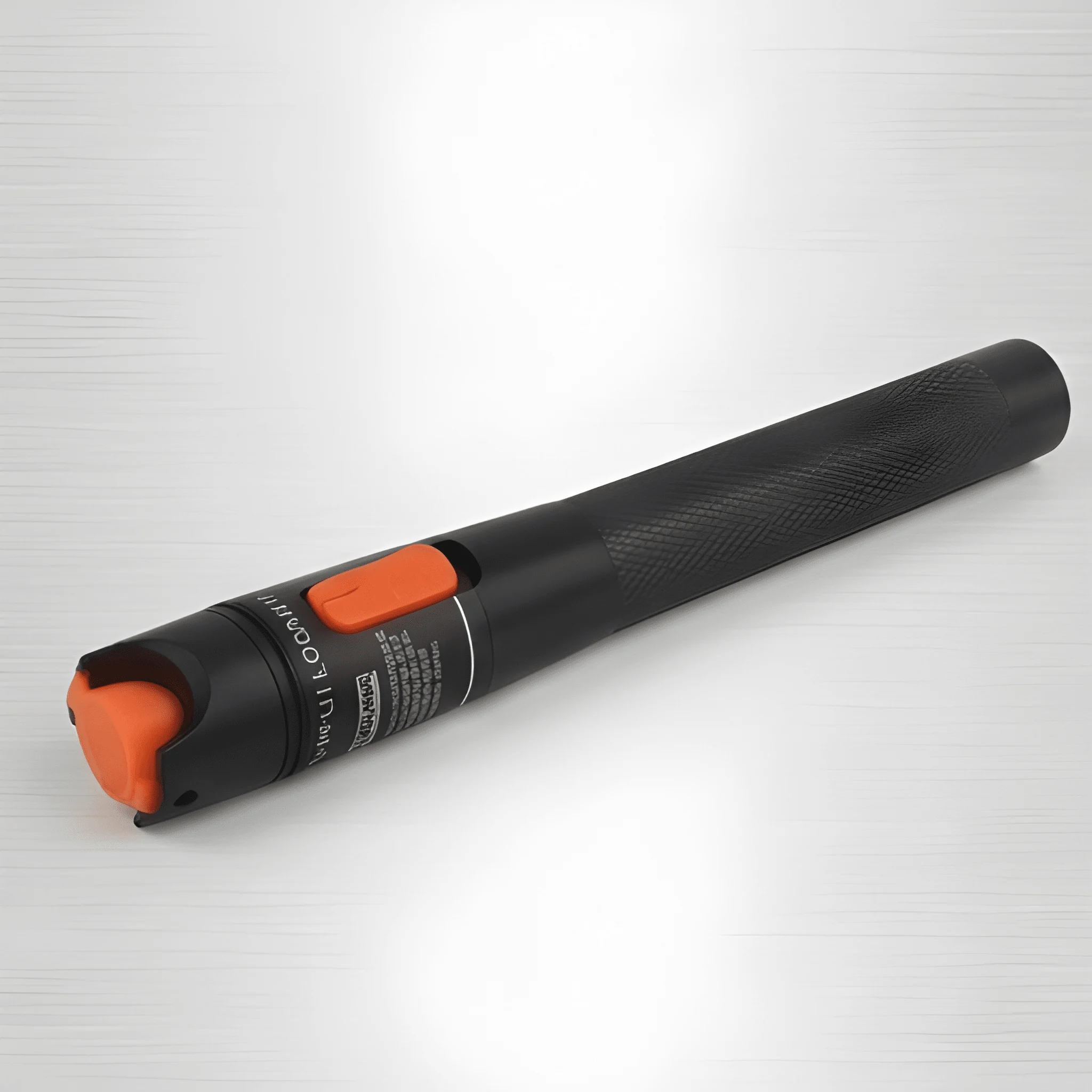

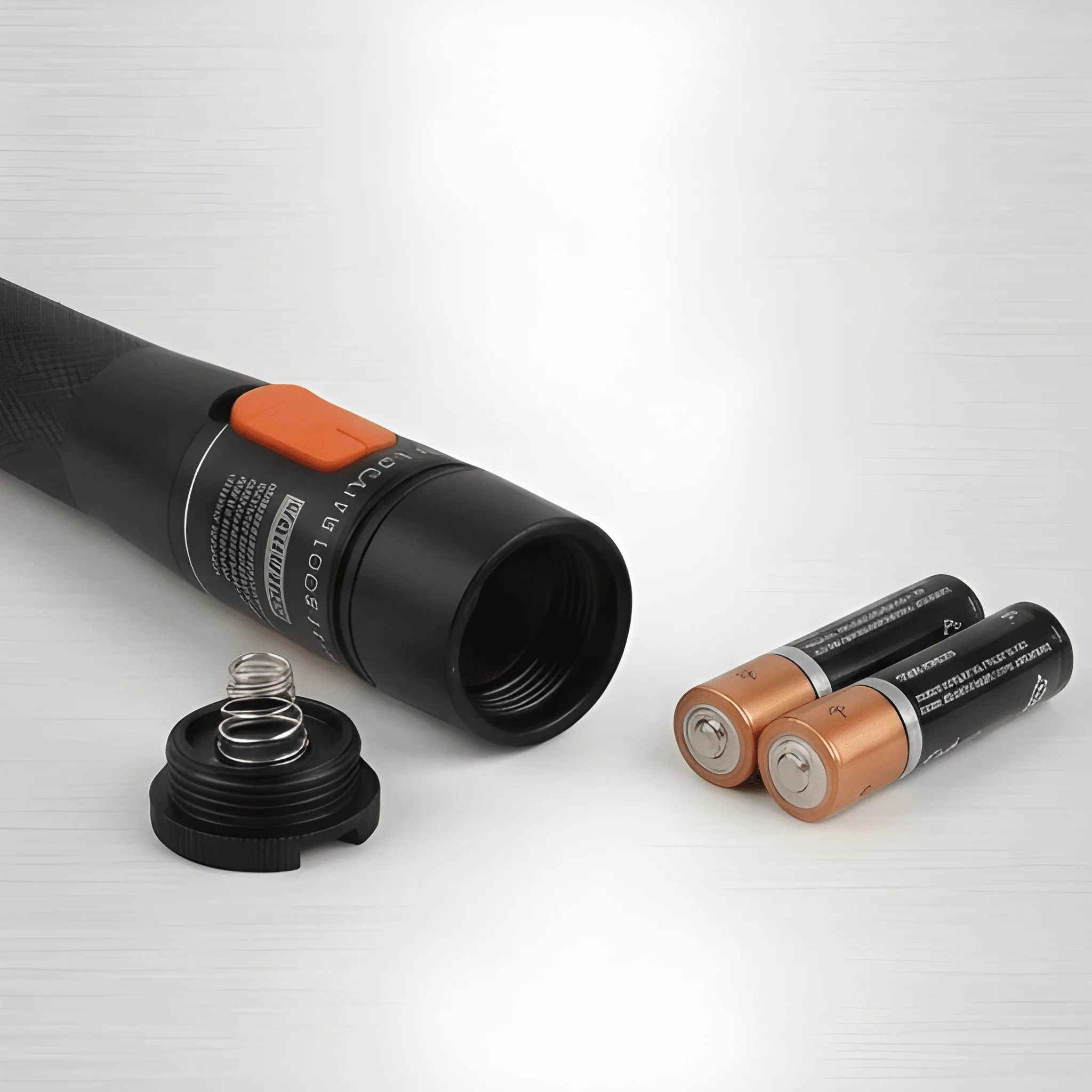

The Uniway Fiber Optic Cable Testing Tool is a Visual Fault Locator (VFL) designed to help technicians quickly find breaks, bends, and other visible faults in optical fiber cables. It uses a visible red laser to trace fiber paths and identify fault locations, making it useful for FTTH, telecom, CATV, LAN/WAN, and fiber maintenance work. Its compact handheld design makes it convenient for field testing and regular fiber network troubleshooting. Key Features - 650nm Red Laser:Provides a visible light source for tracing and checking optical fiber. - Multiple Power Options: Available with 1mW, 5mW, 10mW, 20mW, and 30mW output options depending on the model. - Long-Distance Fault Detection: Detection range can reach up to 10–30km depending on the selected model. - CW & Pulse Modes: Supports continuous wave and 2Hz pulse operation for flexible testing. - Multi-Connector Support: Compatible with SC, FC, and ST connectors through a 2.5mm interface. - Portable Design: Compact handheld construction makes it easy to carry during field work. - Durable Build: Aluminum housing provides a sturdy design for regular network maintenance. - FTTH Ready: Suitable for fiber installation, troubleshooting, and maintenance in FTTH networks. Specifications Brand: Uniway Product Type: Visual Fault Locator (VFL) Product Series:UW VFL-V Series Laser Wavelength: 650nm Laser Type: Visible Red Laser Output Power Options: 1mW / 5mW / 10mW / 20mW / 30mW Detection Distance: Up to 10–30km, depending on model Operating Modes: Continuous Wave (CW) / 2Hz Pulse Connector Support: SC / FC / ST Interface: Universal 2.5mm Interface Design: Pen-Type / Handheld Housing Material: Aluminum Application: FTTH, CATV, Telecom, LAN/WAN and Fiber Optic Maintenance
