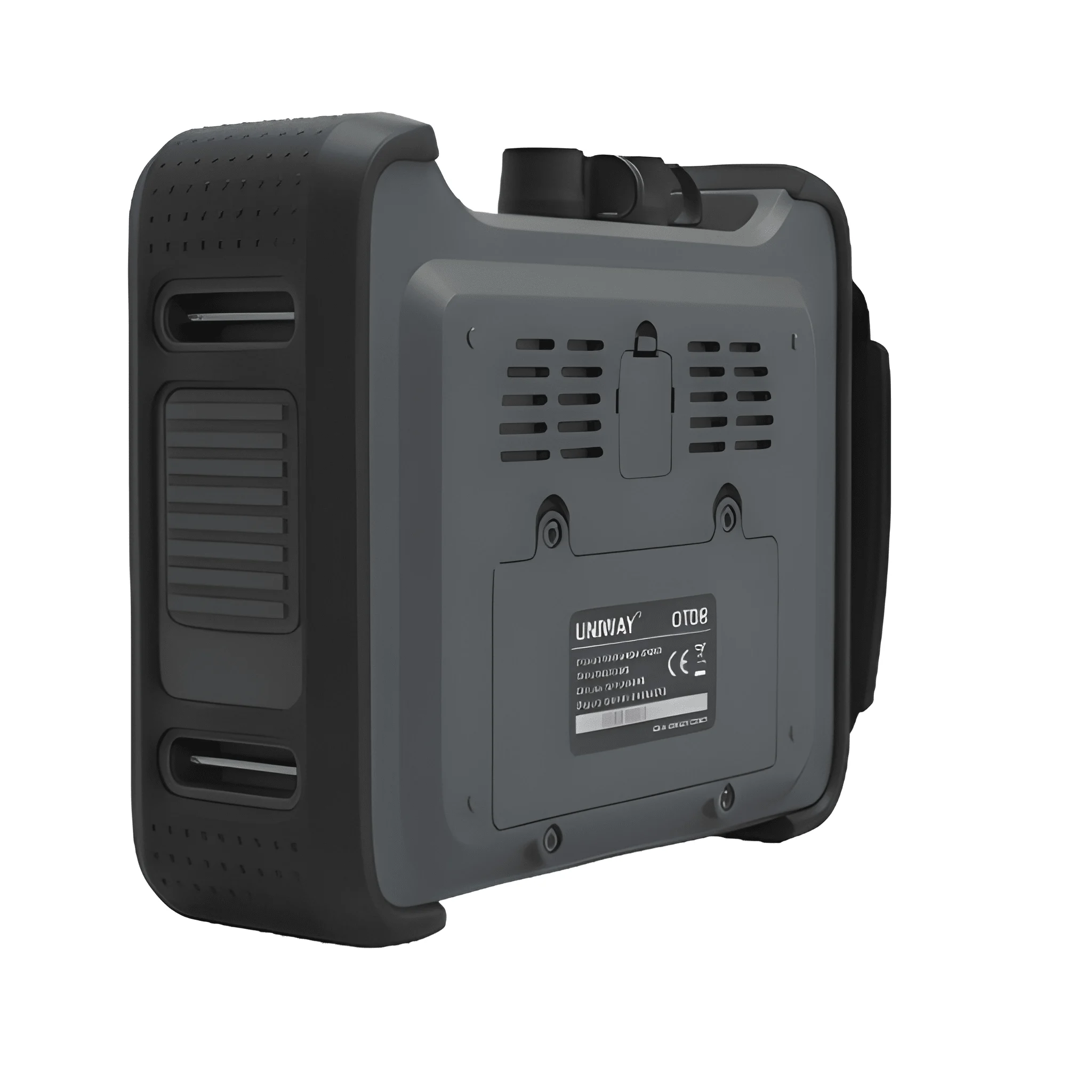

UNIWAY OTDR UW-6000L – High-Precision Optical Fiber Testing Device with Touchscreen & VFL

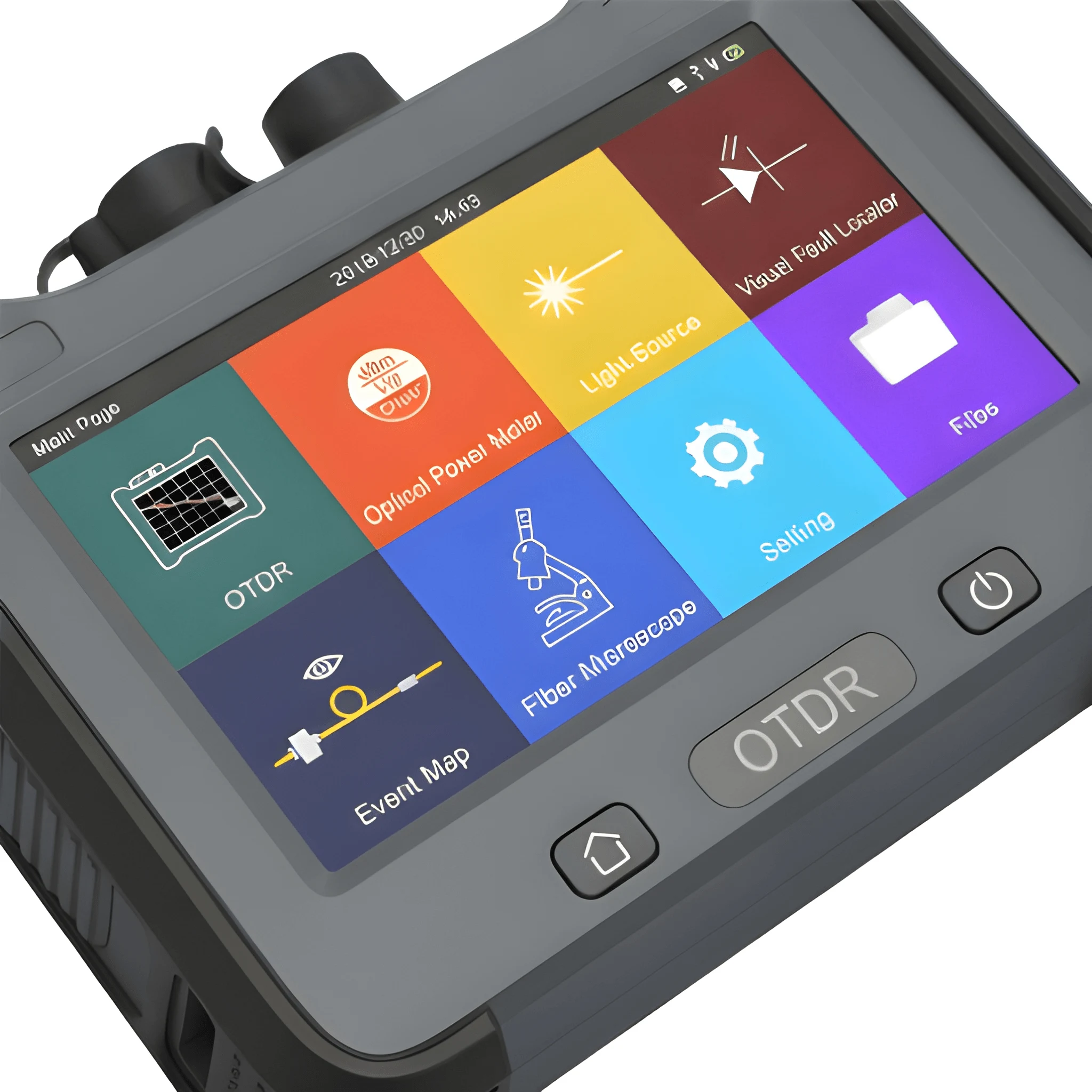

The UNIWAY UW-6000L OTDR is a portable fiber optic testing device designed for accurate fiber link checking, fault identification, and network maintenance. With a 45dB dynamic range and 1310nm/1550nm dual-wavelength testing, it is suitable for FTTx, metro, telecom, broadband, and backbone fiber networks. The 7-inch touchscreen provides a clear interface for field operation, while the high-resolution event map helps technicians locate issues such as splices, breaks, bends, and connectors. The built-in Visual Fault Locator (VFL) adds a convenient option for visual fault checking. USB and Bluetooth connectivity support easy data handling, while automatic and manual testing modes allow users to select a suitable testing approach. Its rugged design and up to 10-hour battery life make it suitable for extended field work. Key Features 45dB High Dynamic Range – Supports testing of long and complex fiber links. Dual-Wavelength Testing – Uses 1310nm and 1550nm for detailed fiber analysis. Detailed Event Mapping – Helps locate common fiber link events and faults. Built-In VFL – Provides visual fault checking with a red laser. Auto & Manual Modes – Offers both guided and detailed testing options. 10-Hour Battery Support – Suitable for longer field assignments. Rugged Field Design – Built for demanding outdoor testing environments. Product Specifications Brand : UNIWAY Model Name / Number : UW-6000L Product Type : Portable OTDR Dynamic Range : 45dB Test Wavelengths : 1310nm / 1550nm Display : 7-inch Touchscreen Event Map : High-Resolution Visual Fault Locator : Built-In VFL Type : Red Laser Testing Modes : Automatic / Manual Data Connectivity : USB / Bluetooth Internal Storage : Large Internal Memory Battery Runtime : Up to 10 Hours Network Applications : FTTx / Metro / Telecom / Broadband / Backbone Design : Rugged Field-Use Construction Protection : Dustproof / Shockproof / Water-Resistant
