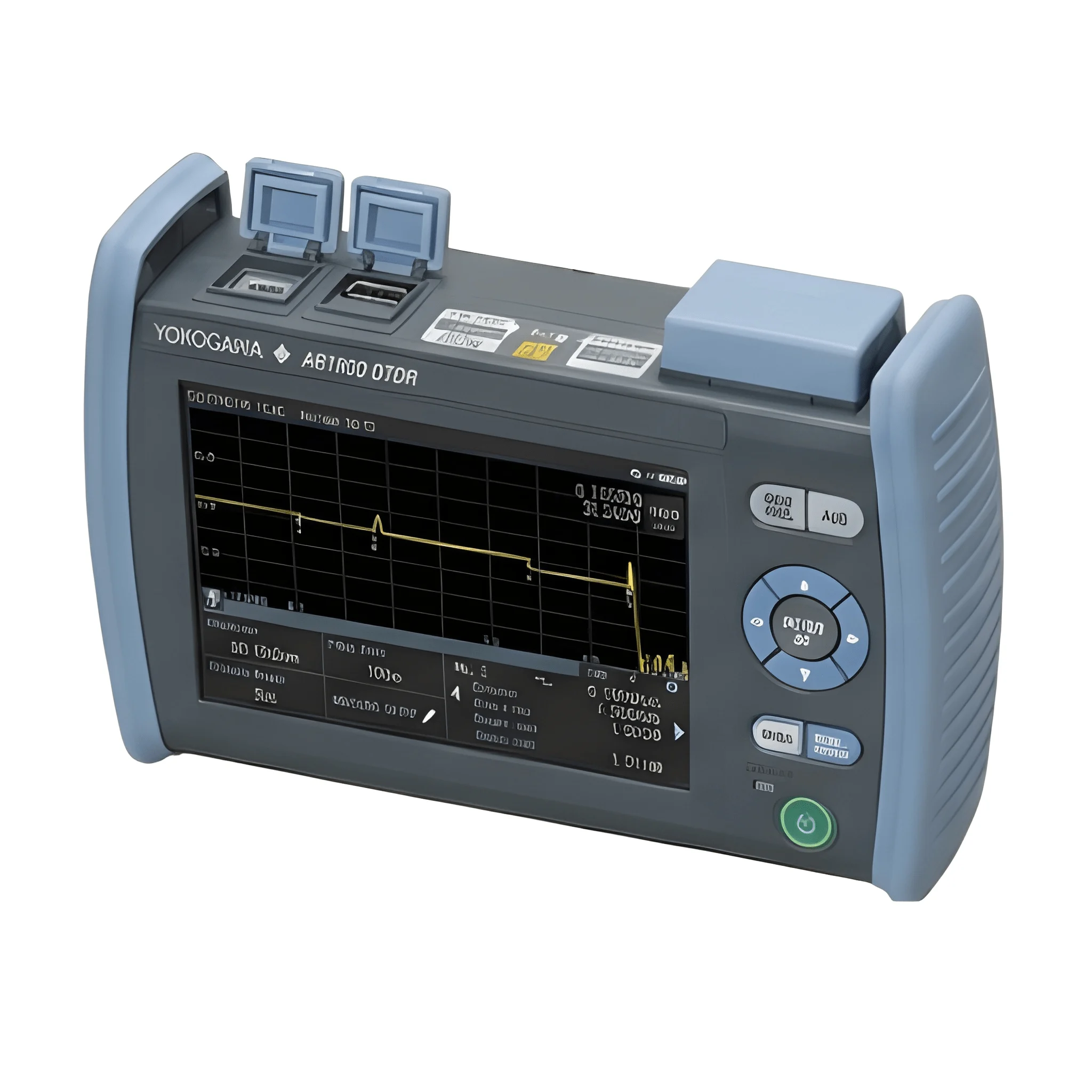

YOKOGAWA AQ1000 OTDR – 32/30dB Entry-Level Fiber Optic Tester

The YOKOGAWA AQ1000 OTDR is a compact fiber optic tester designed for installation, testing, and maintenance of optical access networks, including FTTH applications. It supports 1310nm and 1550nm wavelengths with a 32/30dB dynamic range for practical fiber link analysis. The device features a responsive 5-inch capacitive multi-touch screen along with physical keys, making OTDR operation simple in field environments. It supports distance, loss, and return loss measurements, along with automatic event detection and Pass/Fail judgment. With over 10 hours of battery operation, quick startup, and wireless connectivity, the AQ1000 is a convenient testing solution for technicians working on access fiber networks. Key Features 32/30dB Testing Performance – Handles common access-network fiber measurements. FTTH Network Support – Suitable for optical access and fiber deployment work. Multi-Touch Operation – Responsive touchscreen for easy navigation. Automatic Event Analysis – Quickly identifies events along the fiber link. Pass/Fail Judgment – Helps technicians check network connection results. 10+ Hour Battery Life – Supports extended field testing. Fast Startup – Becomes measurement-ready in under 10 seconds. Product Specifications Brand : YOKOGAWA Model Name / Number : AQ1000 Product Type : Optical Time Domain Reflectometer Application : Optical Access Network Testing Wavelength : 1310nm / 1550nm Dynamic Range : 32dB / 30dB Display : 5.0-inch Color LCD Touchscreen : Capacitive Multi-Touch Operation : Touchscreen + Hard Keys Dimensions : 185 × 116 × 56mm Weight : Approx. 660g Battery Type : Li-Ion Battery Operation : Over 10 Hours Boot-Up Time : Under 10 Seconds Distance Measurement : Supported Loss Measurement : Supported Return Loss Measurement : Total / Section Event Search : Automatic Measurement Mode : Real-Time Connectivity : Wireless USB Port : Type Micro-B / Type-A USB Power Feeding : Supported
