YOKOGAWA OTDR AQ7280 – Modular Fiber Testing Solution

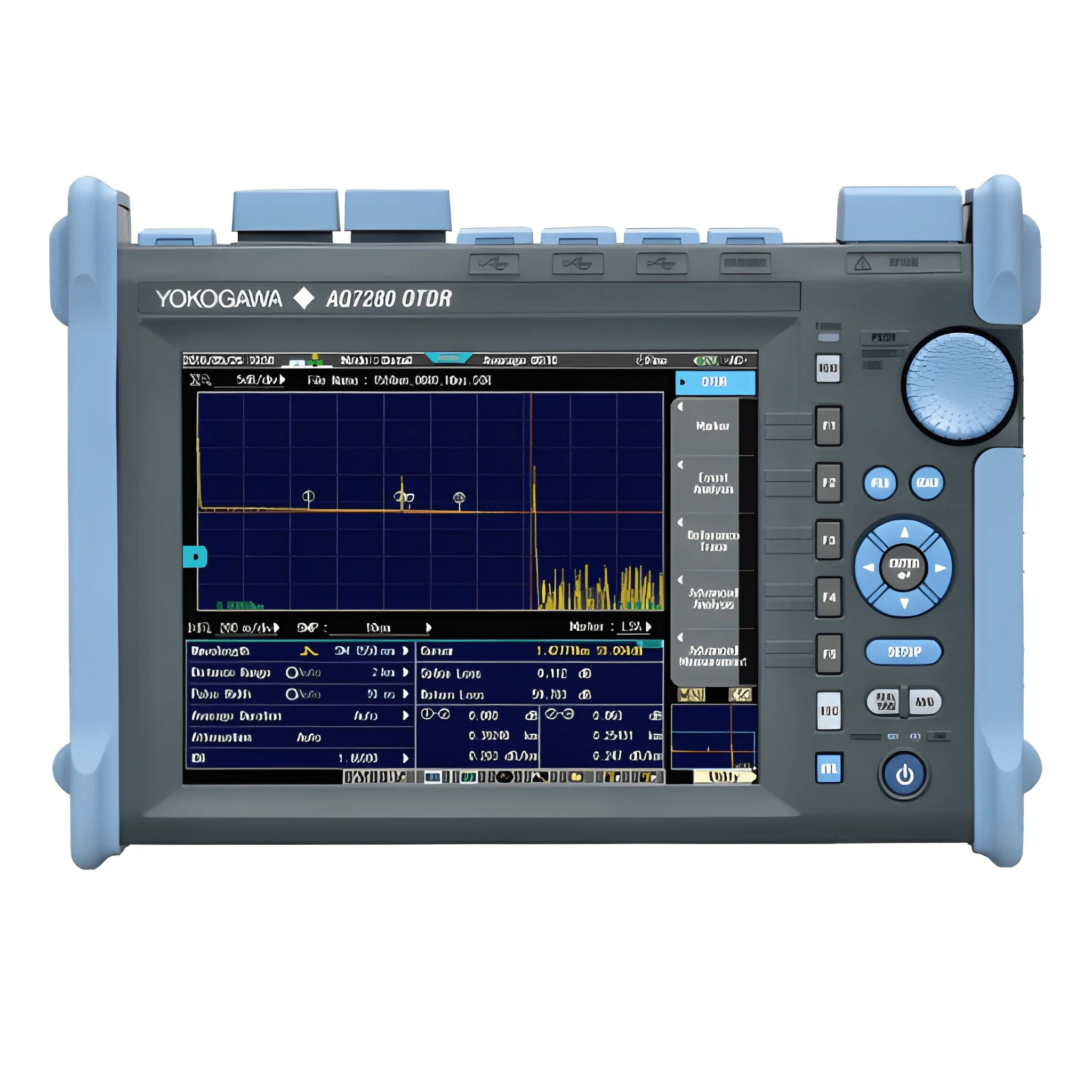

The Yokogawa AQ7280 OTDR is a flexible optical fiber testing device designed for installation, troubleshooting, and maintenance of fiber optic networks. Its modular design allows users to configure the tester according to different testing requirements, from access and FTTH networks to metro and core applications. The AQ7280 features an 8.4-inch touchscreen for easy navigation and supports multi-fiber testing to help technicians handle large testing tasks more efficiently. With a battery runtime of up to 15 hours, it is suitable for extended field work. Optional modules also allow the device to be configured with additional testing functions as required. Key Features Modular Design: Configure the tester according to different fiber testing requirements. Large Touchscreen: The 8.4-inch display makes menus and testing functions easier to access. Multi-Fiber Testing: Helps technicians manage testing across a large number of fiber connections. Long Field Operation: Designed for extended testing sessions without frequent battery charging. Flexible Configuration: Supports different module combinations for various network applications. High-Quality Measurements: High SNR mode helps provide clear and reliable OTDR traces. Easy Module Replacement: Hardware components can be changed using commonly available tools. Specifications Brand : Yokogawa Model : AQ7280 Product Type : Optical Time Domain Reflectometer (OTDR) Display : 8.4-Inch High-Luminance Color LCD Display Type : Touchscreen OTDR Configuration : Modular Optional Modules : Up to 5 OTDR Unit Options : Up to 14 Battery Life : Up to 15 Hours Multi-Fiber Measurement : Up to 2000 Fibers Network Applications : FTTH, Access, Metro, Core & Long-Haul Data Transfer : Wireless Analysis Function : Smart Mapper OPM / VLS : Optional Module Support
