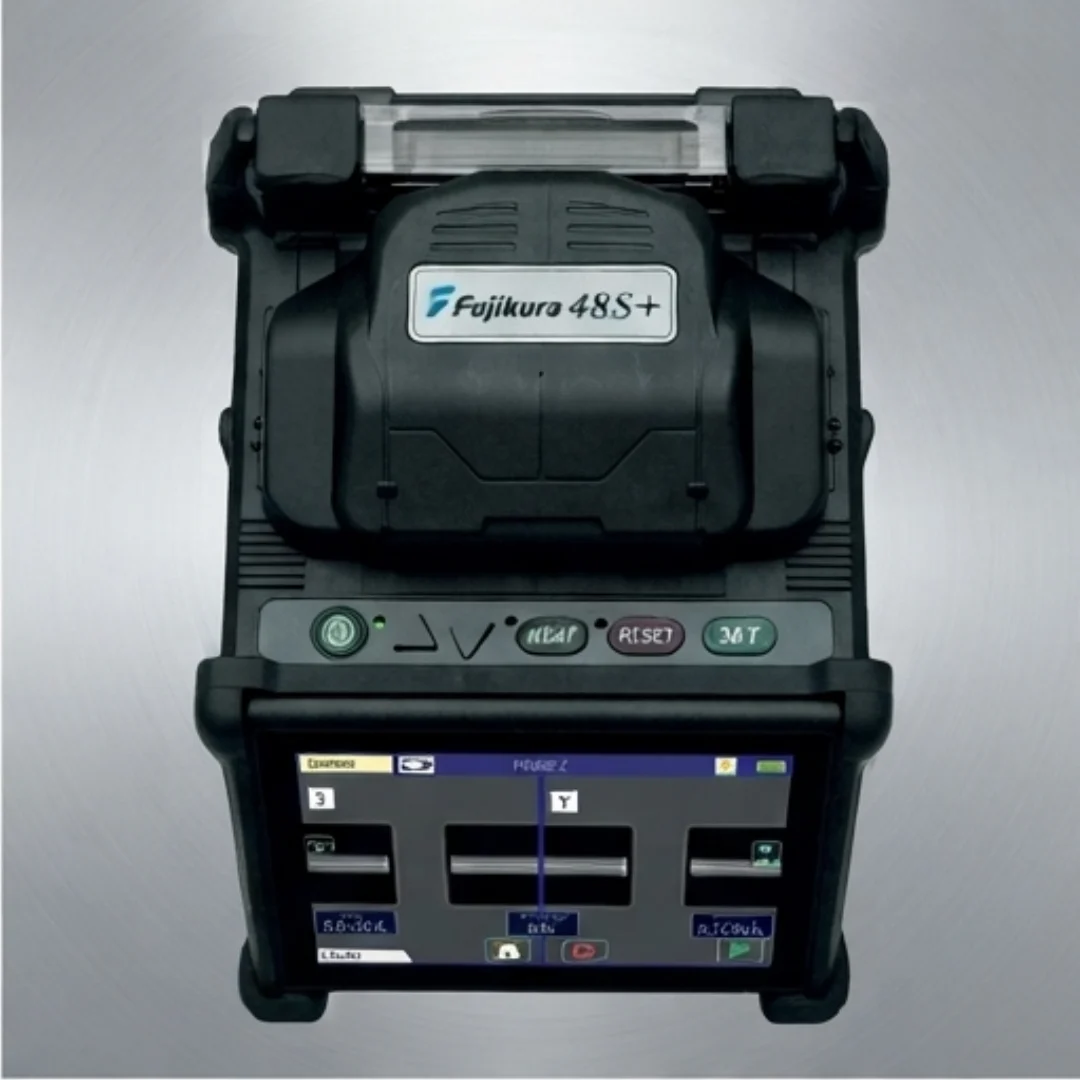

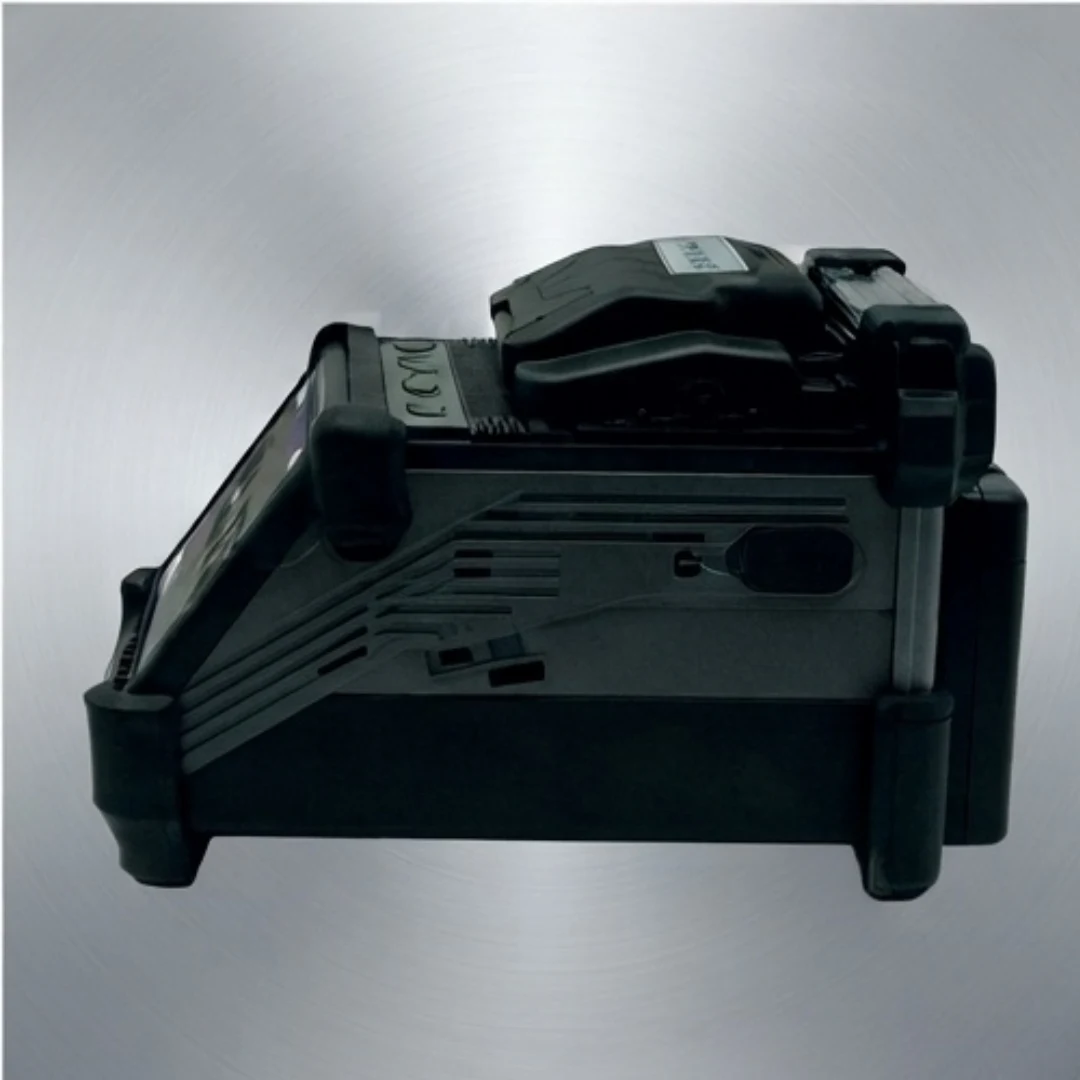

Fujikura 48S+ Core Alignment Fusion Splicer

Fujikura 48S+ is a single-fiber core alignment fusion splicer designed for accurate and reliable optical fiber splicing. It supports commonly used SMF, MMF, DSF and NZDSF fibers, making it suitable for FTTH, telecom, access networks and other fiber installation work. Its 4.9-inch touchscreen, fast splicing operation and compact design make everyday fiber splicing more convenient. The splicer also provides built-in storage for splice results and multiple splice and heating modes for different working requirements. Key Features: Active core alignment for accurate fiber positioning Supports single-fiber SMF, MMF, DSF and NZDSF Approx. 7-second typical splice time 4.9-inch TFT touchscreen display Stores up to 10,000 splice results Specifications: Alignment Method- Active Core Alignment Fiber Type- SMF, MMF, DSF & NZDSF Fiber Count- Single Fiber Splice Time- Approx. 7 seconds Splice Loss- Up to approx. 0.02 dB for G.652/G.657 Display- 4.9-inch TFT Touchscreen Electrode Life- Approx. 5,000 splices Weight- Approx. 1.9 kg with battery Storage- 10,000 splice results
