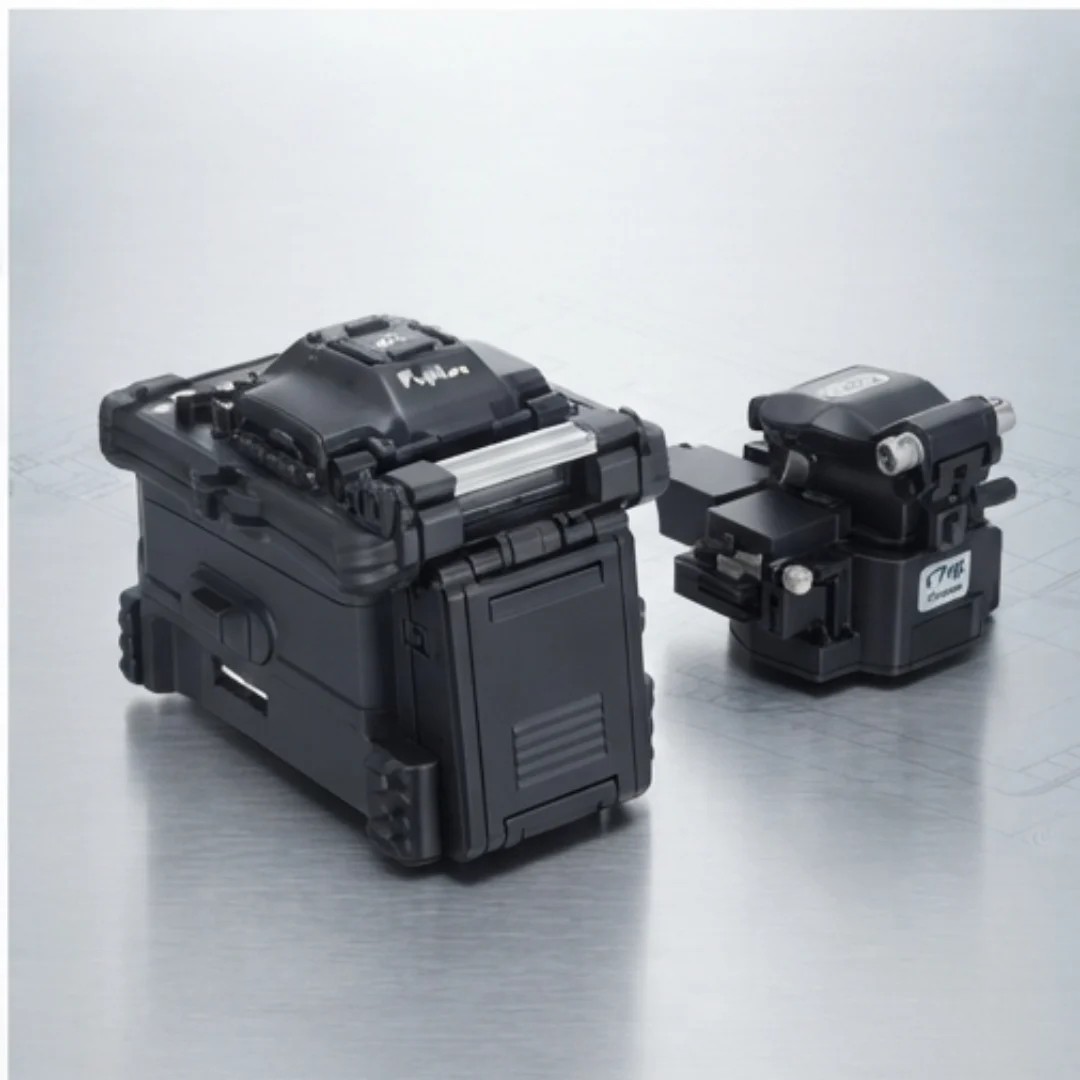

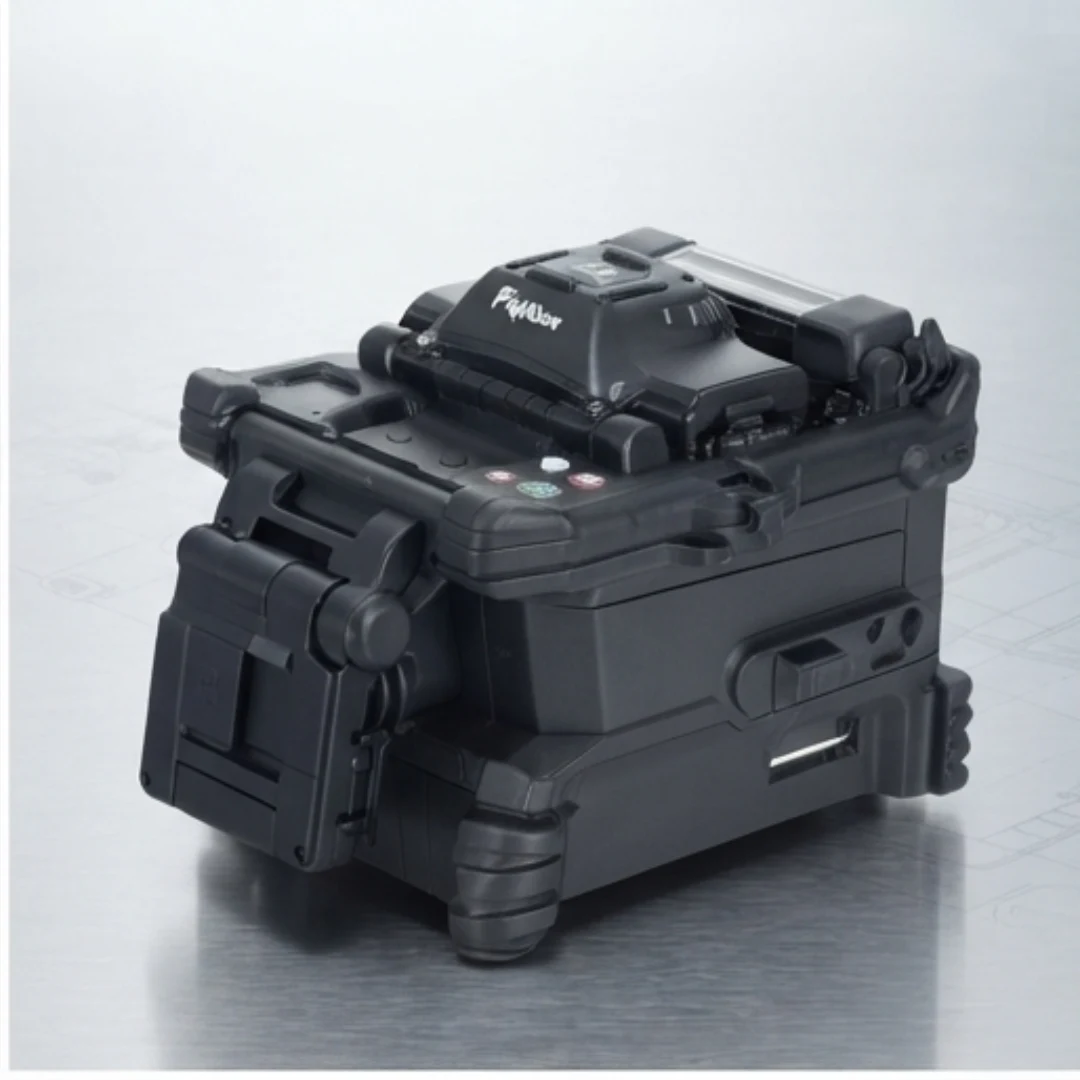

Fujikura 72S Single Fiber Core Alignment Fusion Splicer

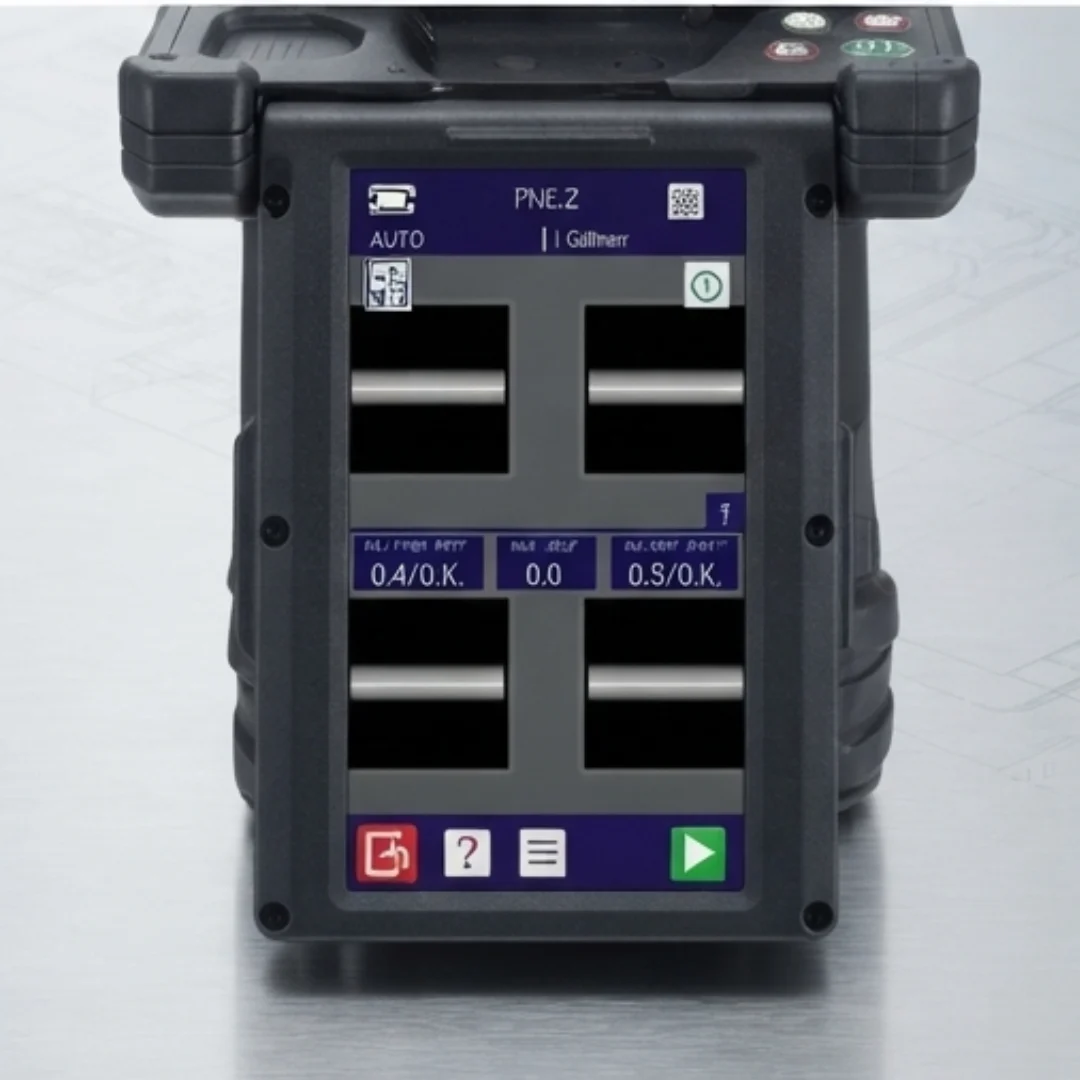

Fujikura 72S is a single-fiber core alignment fusion splicer designed for precise and reliable optical fiber joining. It supports both single-mode and multimode fibers and is suitable for FTTH, telecom, fiber backbone, and professional field installation work. The 72S features a 4.95-inch touchscreen, fast SM splicing, automatic operating functions, and built-in storage for splice results and images. Its rechargeable battery and compact design make it practical for both workshop and on-site fiber splicing applications. Key Features: Active core alignment for accurate fiber positioning Supports single-mode and multimode fibers Approx. 7-second SM FAST splice time 4.95-inch TFT touchscreen with approx. 320× magnification Stores up to 20,000 splice results Rechargeable battery for field operation Specifications: Alignment Method- Active Core Alignment Fiber Type- Single Mode & Multi Mode Fiber Count- Single Fiber Splice Time- Approx. 7 sec Typical Splice Loss- G.652: 0.02 dB Display- 4.95-inch TFT Touchscreen Magnification- Approx. 320× Electrode Life- Approx. 6,000 splices Weight- Approx. 2.6 kg with battery Battery- 14.4V, 6,380mAh Li-Ion Splice Result Storage- Up to 20,000 results
