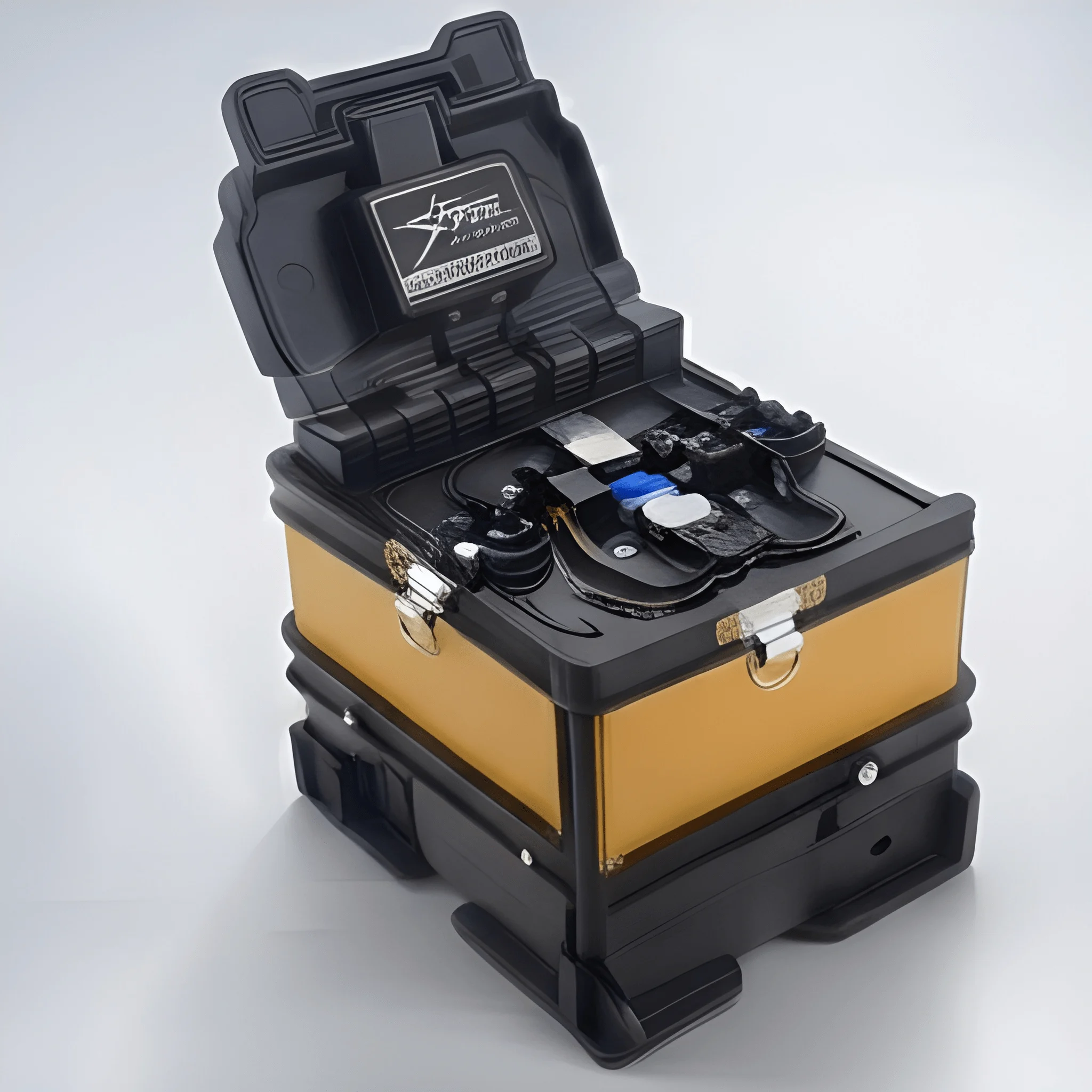

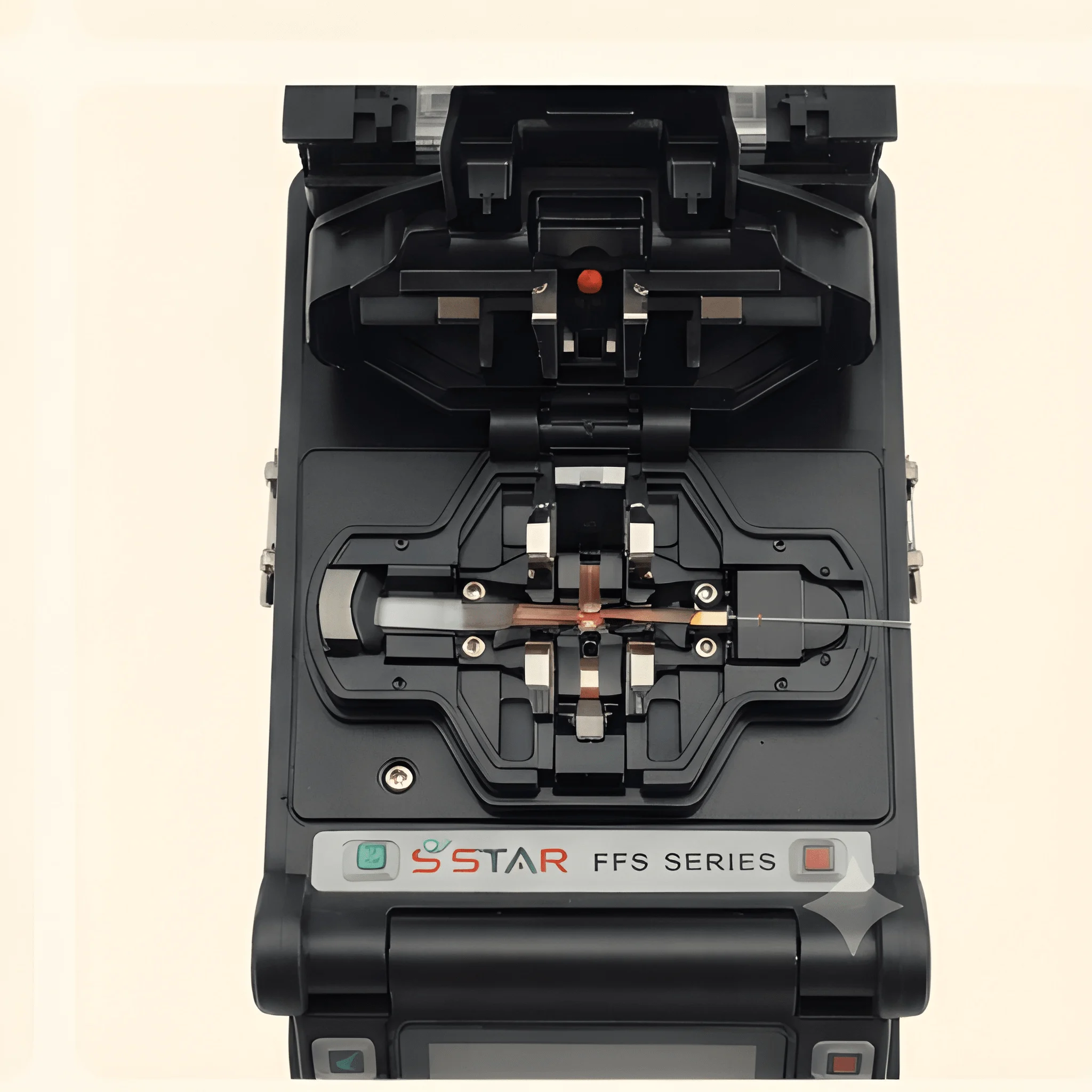

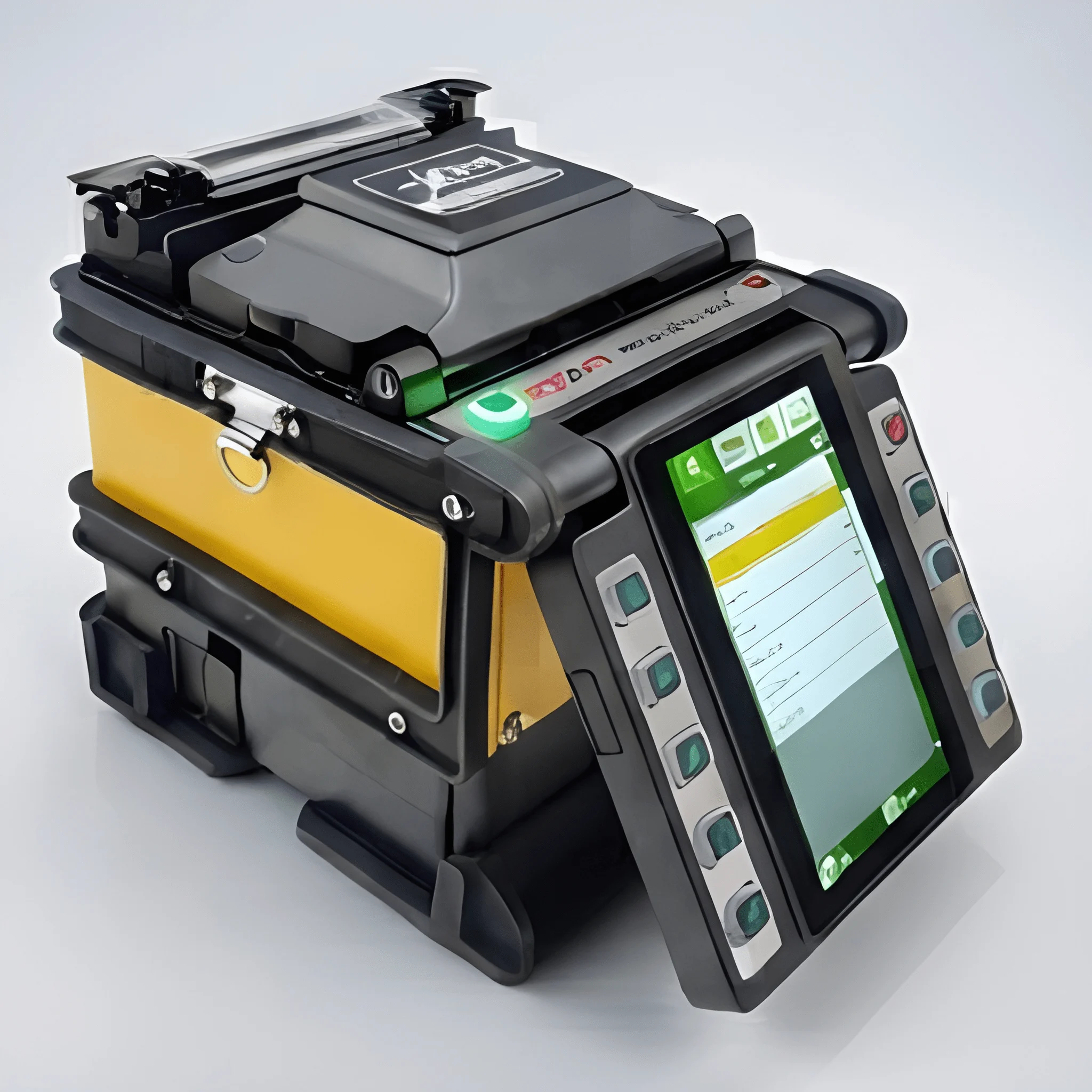

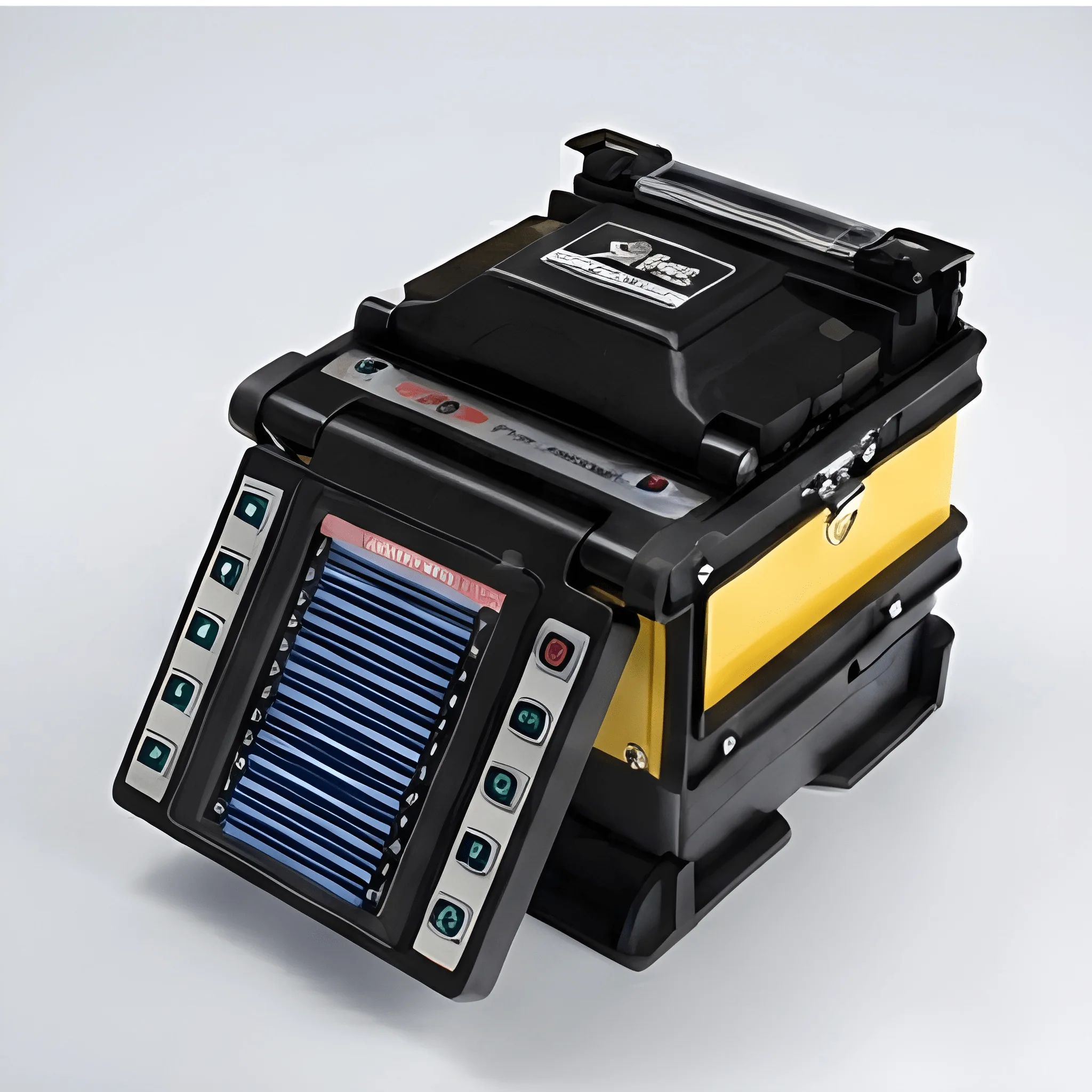

STAR FFS R-12000 Ribbon Fiber Optic Fusion Splicing machine

Introducing the R-12000 Ribbon Fusion Splicer, the premium fusion splicer that offers a strong option for in-field fiber splices and delivers superior optical performance. The design improves the steps required to complete the splices, enabling better productivity. It has very stable performance and low fusion loss; it is suitable for different fiber optical projects and various environmental conditions. It is time-saving in operation. It includes the feature of enabling remote support with low maintenance costs. It takes very little time to splice with the help of a superior, high-precision thermal stripper. Description The FFS R-12000 Ribbon Fiber Optic Fusion Splicers are the best-in-class, enabling simple and affordable installation for any application. This machine performs effective alignment with minimal maintenance and electrode replacement. The All-In-One system’s thermal stripper eliminates cracks on the fiber that are typically brought on by manual strippers. The industry’s most durable equipment, the R-12000 Ribbon Fiber Optic Fusion Splicers, have a fast splice time and a quick tube heating time. Any level of operator can use them in any site condition because of their design. Standard Package 1 Optical fiber fusion splicer 1 Power Adapter 1 Battery Pack 1 High Precision Fiber Cleaver 1 Alcohol Dispenser 1 Thermal Fiber Stripper 3 Pair Fiber Holder (1,8,12 Fibers) 1 USB Cable 1 Pair Spare Electrodes 1 Cooling Tray 1 Hard Carrying Case Features Fast: 10 Sec Splice / 15 Sec Heating Quick Start to Splice Low Splice Loss Fixed V-Groove Alignment System Long Life Electrodes – 2000 Splices High Capacity Battery 8400mAh Product Specification General Splicer Type Ribbon Fiber Fast Fusion Splicer Fiber Count Up to 12 Fiber Applicable Fibers Single Mode and Multimode Fiber Splicing Time 10 Sec Heating Time 15 Sec. (Adjustable) Slim 60mm, Slim 40mm Coating. Splice Loss Low Loss Joining: Average – 0.05db (SMF), 0.02db (MMF), 0.08db (NZ/DS) Return Loss >>60dB Fiber Alignment Mode Surface Melting Tension Cleave Length 10mm to 13mm Splicing Programs 100 Pre Set Program & User Definable Splice Data Storage 10000 Results Tension 1.95N – 2.25N Screen 4.7 inch High Definition LCD Colour Screen Fiber Magnification 40 – 100x Automatically Adjust as per fiber count Loss Estimation Provided Electrode Life 2000 arc discharges Operating Condition Altitude 0~5500m, Humidity 0~95%, Temp. -20 to +60 Deg. Centigrade & Wind Velocity up to 15m/sec Power Supply AC to DC Adaptor 100-240V, 50/60Hz & 12V Car Charger Type Power Adaptor Battery Parameters 8400mAh High Capacity Li-Ion Battery Port DC Charging, USB 2.0 Size & Weight (190x140x150)mm (1.8) kg (2.2kg with battery) Illumination V-Groove LED Lamp Durability Shock Resistance, Dust Resistance and Water Resistance Battery Usage Typical Operating More than 180 (splice / heat shrink) on a Single Charge of 3 hours
